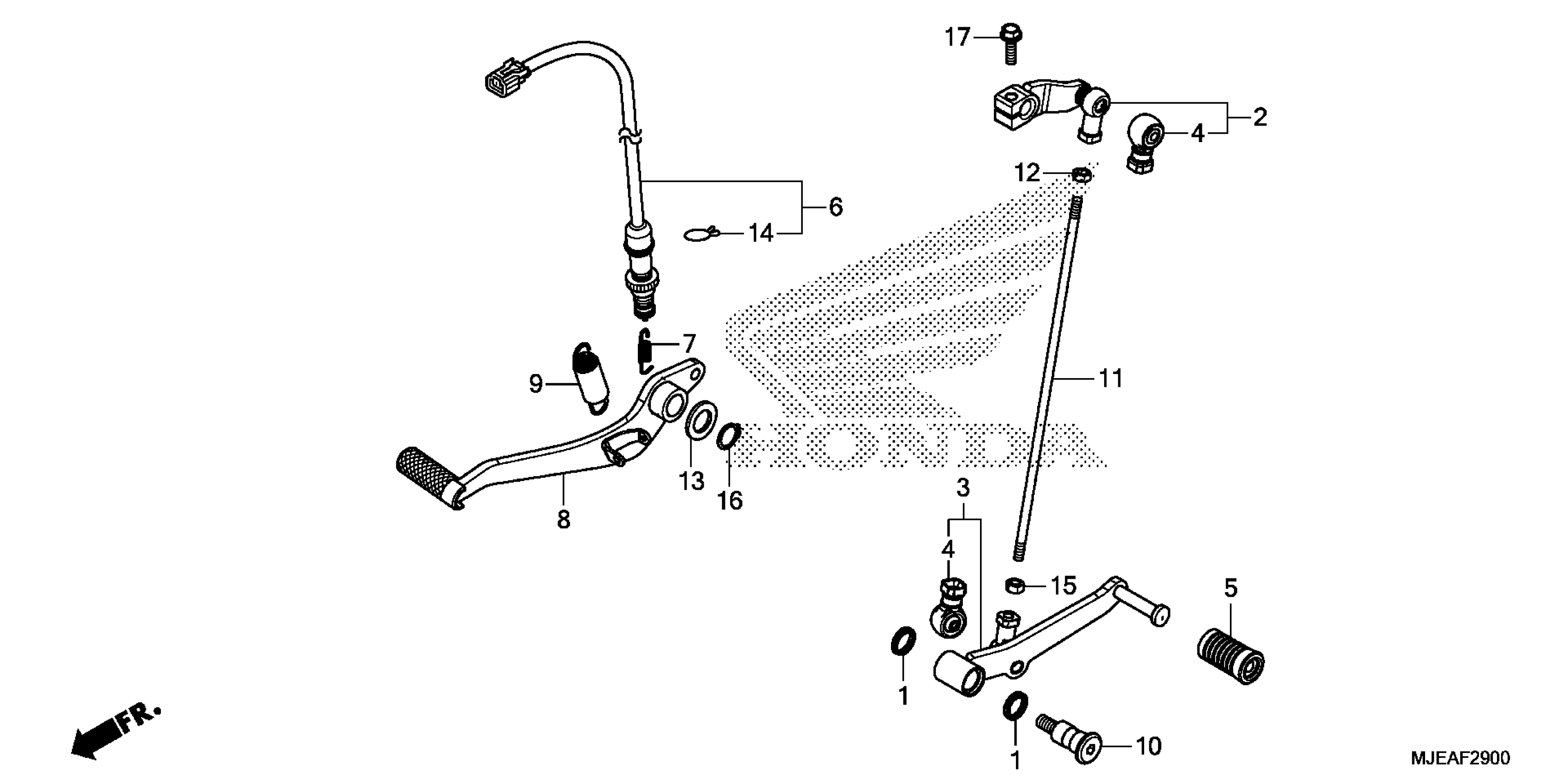

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 PEDAL Diagram

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM, GEARSHIFT

24710-MJE-D00

$22.61

PEDAL, GEARSHIFT (COO)

24720-MJE-305

$54.33

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-KSP-860

$7.68

SWITCH ASSY., RR. STOP

35350-MJE-D02

$24.85

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

PEDAL, BRAKE (COO) This part replaces 46500-MJE-D00.

46500-MJE-305

$42.18

PEDAL, BRAKE (COO)

46500-MJE-305

$42.18

SPRING ASSY., BRAKE PEDAL

46513-KYJ-900

$3.03

BOLT, CHANGE PIVOT

90113-MGZ-J00

$9.50

BOLT, TIE ROD

90165-MJE-D00

$4.36

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.34

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90651-MGE-641

$1.80

NUT, HEX. (6MM)

94001-06070-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
