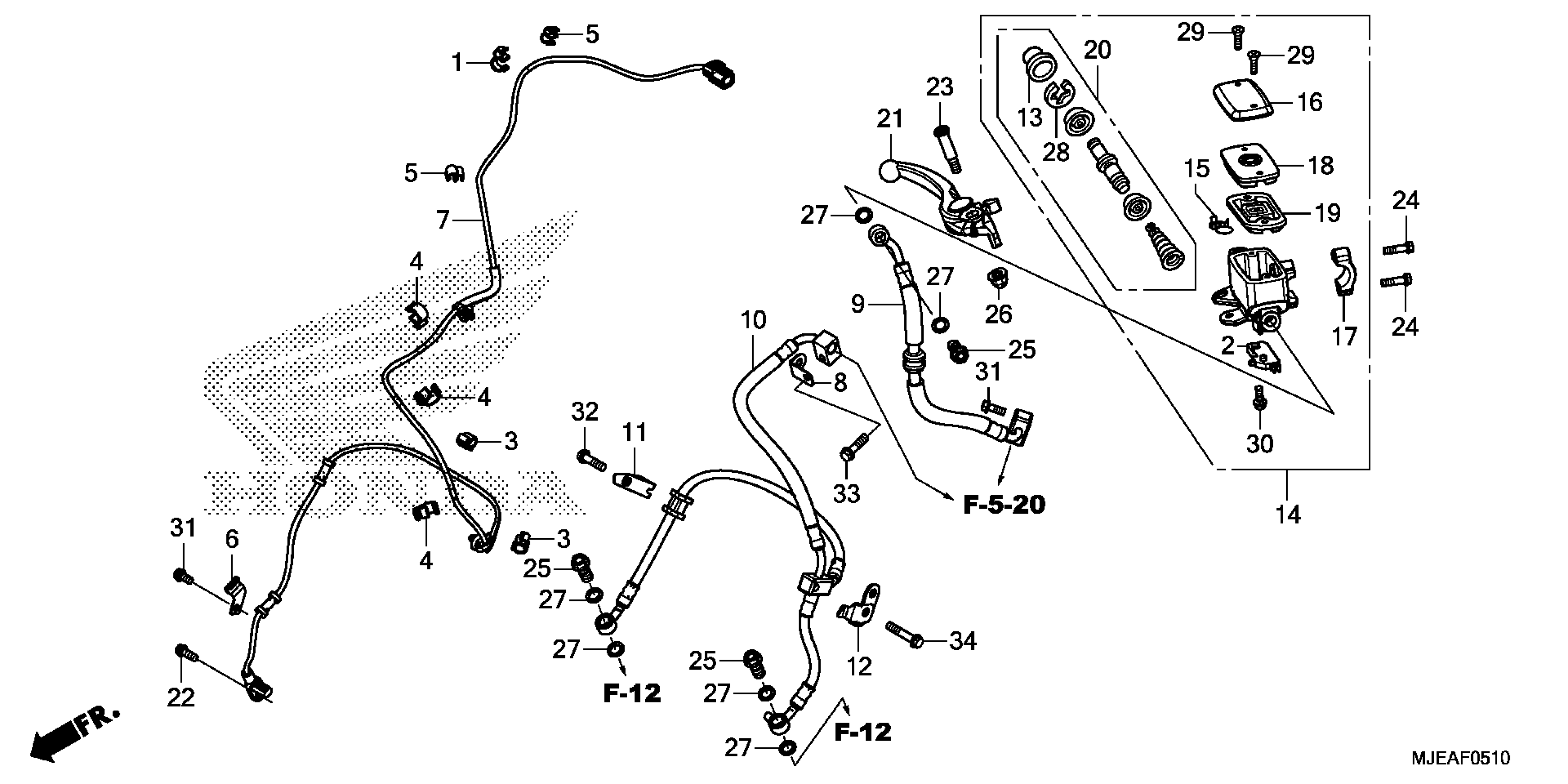

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$6.80

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.80

4

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

5

CLAMP, ABS WIRE

38517-MJE-D10

$2.96

6

CLAMP, SENSOR WIRE

38517-MKA-D80

$0.97

7

SENSOR, FR. WHEEL SPEED

38520-MJE-DB1

$31.81

8

STAY, SENSOR WIRE

38550-MJE-D10

$2.93

9

HOSE A, FR. BRAKE (NICHIRIN)

45125-MJE-DF1

$25.26

10

HOSE B, FR. BRAKE (NICHIRIN)

45126-MJE-DB1

$98.59

11

CLAMP A, FR. BRAKE HOSE

45156-MJE-D10

$2.81

12

STAY, FR. BRAKE HOSE

45158-MJE-D10

$5.15

13

BOOT

45504-410-003

$11.17

14

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01.

45510-MJE-305

$98.24

14

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MJE-305

$98.24

15

PROTECTOR

45512-MA6-006

$4.09

16

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

17

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

18

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

19

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

20

MASTER CYLINDER SET

45530-471-831

Unavailable

21

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MJE-D01.

53170-MJE-305

$48.43

21

LEVER ASSY., R. HANDLE (COO)

53170-MJE-305

$48.43

22

BOLT, FLANGE (6X16)

90107-MEJ-D00

$0.44

23

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

24

BOLT, FLANGE (6X22)

90131-MJE-D00

$0.44

25

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

26

NUT, CAP (6MM)

90202-KCW-870

$2.69

27

WASHER, OIL BOLT

90545-300-000

$6.56

28

CIRCLIP

90651-MA5-671

$2.38

29

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

29

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

30

SCREW-WASHER (4X12)

93893-04012-07

$1.24

30

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

31

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66

32

BOLT, FLANGE (6X20)

96001-06020-07

$1.25

33

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable

34

BOLT, FLANGE (6X35)

96001-06035-07

$2.59
