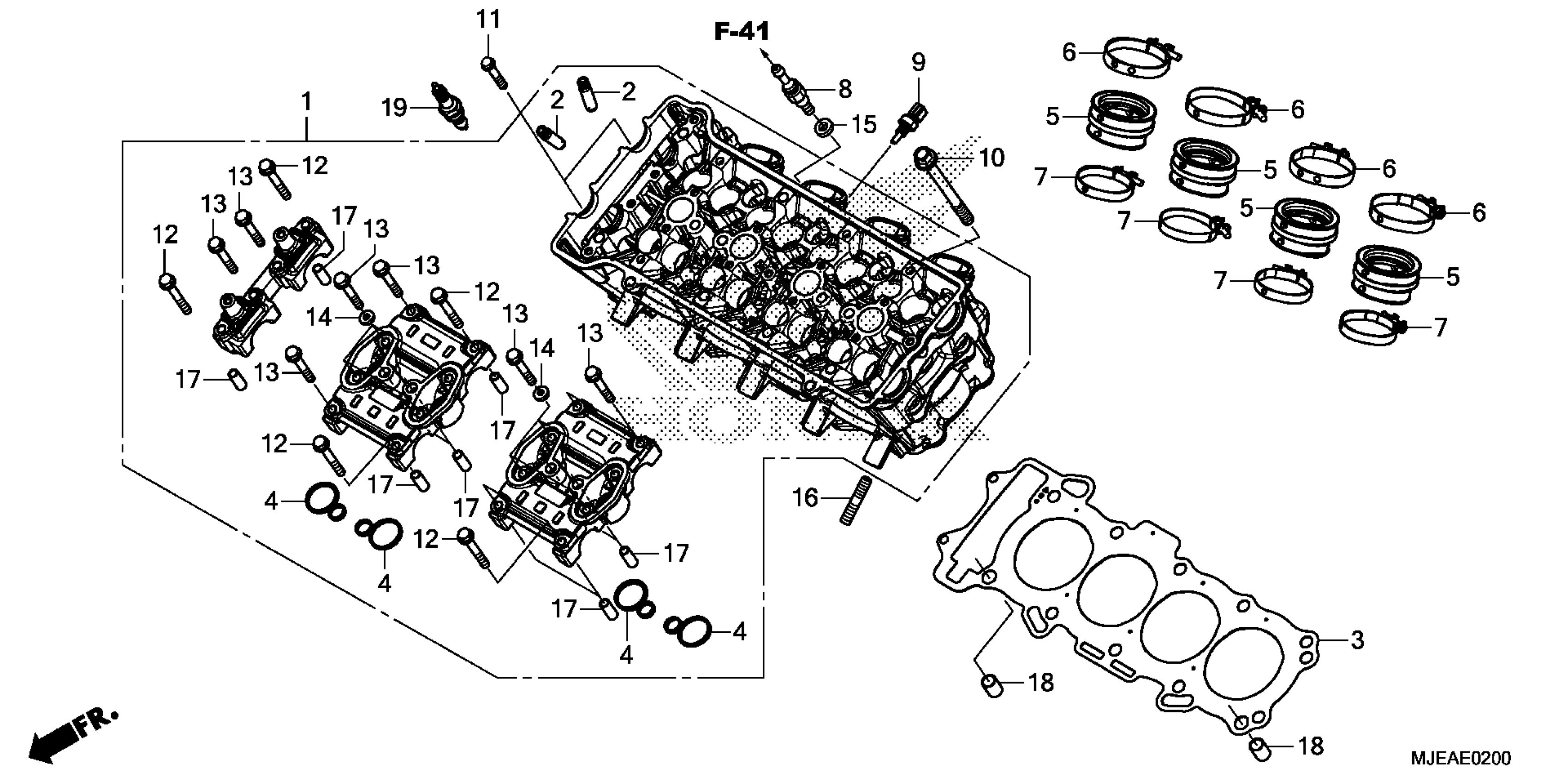

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-MJE-DB0

$679.46

2

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.66

3

GASKET, CYLINER HEAD This part replaces 12251-MJE-D01.

12251-MKY-E21

$42.92

4

GASKET, PLUG HOLE

12395-MBW-003

$4.45

5

INSULATOR, THROTTLE BODY

16211-MJE-D00

$46.65

6

BAND A, INSULATOR

16217-MJE-D00

$6.78

7

BAND B, INSULATOR

16218-MJE-D00

$6.46

8

JOINT, BLEEDING

19410-MJE-D00

$49.59

9

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$45.73

10

BOLT-WASHER (9X100)

90007-MGZ-J00

$4.50

11

BOLT, FLANGE (6X35)

90011-MGZ-J00

$0.44

12

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.19

13

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.76

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

15

GASKET (SHOWA)

90544-439-930

$1.97

16

BOLT, STUD (8X22)

92900-08022-3E

$2.13

17

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.76

18

PIN A, DOWEL (12X16)

94301-12160

Unavailable

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79
