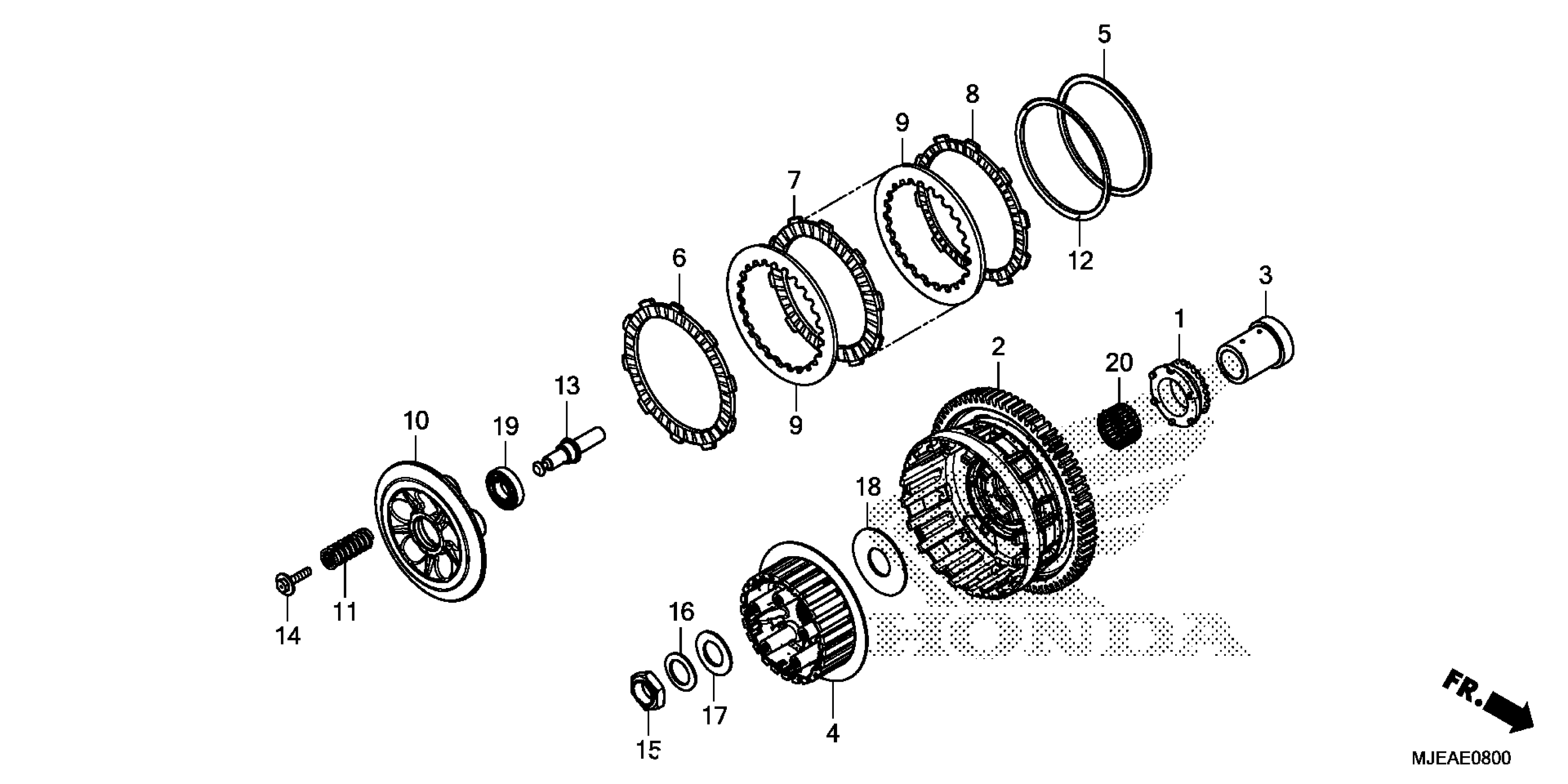

Honda CB650FA2AC (18) CB650FA, THA, VIN# MLHRC755-J5000001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MJE-D01

$36.47

2

CLUTCH OUTER (71T)

22100-MJE-D00

$202.38

3

GUIDE, CLUTCH (OUTER)

22116-MJE-D00

$16.93

4

CENTER, CLUTCH

22120-MJE-D00

$33.15

5

SEAT, JUDDER SPRING

22125-ML7-000

$9.79

6

DISK, CLUTCH FRICTION

22201-MAE-000

$16.26

7

DISK, CLUTCH FRICTION

22201-MFJ-D00

$12.07

8

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.70

9

PLATE, CLUTCH

22321-ML7-000

$12.90

10

PLATE, CLUTCH PRESSURE

22350-MCJ-000

$59.01

11

SPRING, CLUTCH

22401-MJE-D00

$2.80

12

SPRING, JUDDER

22402-MAS-E00

$19.29

13

PIN, CLUTCH LIFTER

22847-MJE-D00

Unavailable

14

BOLT-WASHER (6X28)

90024-MAS-000

$3.56

15

NUT, LOCK (22MM)

90231-MJE-D00

$4.20

16

WASHER, SPRING (22MM)

90432-MM5-000

$7.85

17

WASHER, THRUST (22X39X2)

90451-KG4-000

$4.34

18

WASHER (60X25X2)

90459-MM4-000

$9.85

19

BEARING, RADIAL BALL (16003)

91009-MAS-003

$20.84

20

BEARING B, NEEDLE (35X41X23.8) (WHITE)

91102-MEE-003

$6.25
