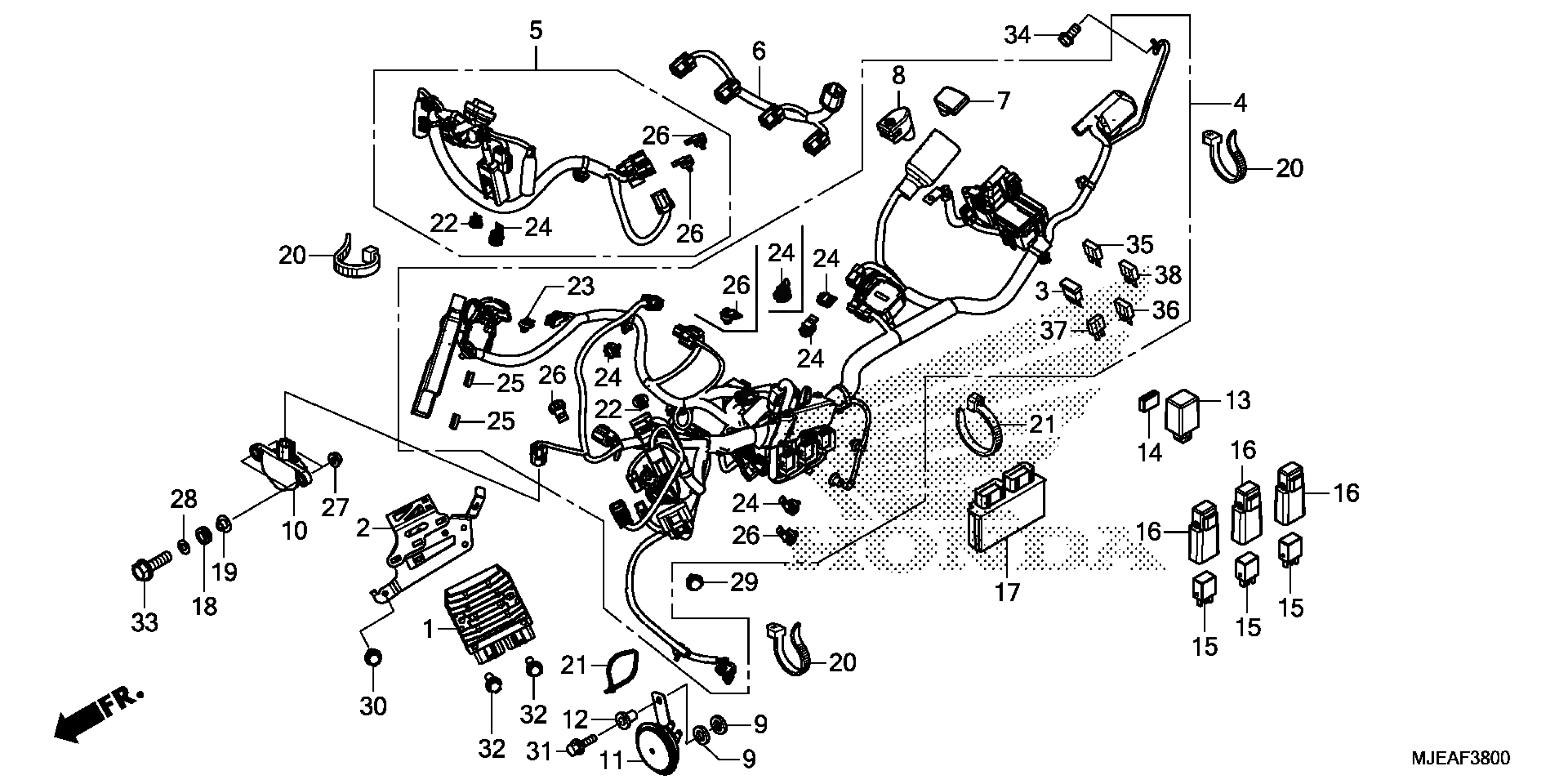

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$172.04

2

STAY, REGULATOR

31605-MJE-DB0

$17.32

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

4

WIRE HARNESS

32100-MJE-AG0

$590.18

5

SUB-HARNESS, FR.

32103-MJE-AG0

$58.46

6

SUB-HARNESS, INJECTOR

32104-MJE-D00

$22.46

9

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

10

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

11

HORN (HIGH)

38110-KPP-T01

$32.35

12

COLLAR, HORN SETTING

38117-KFE-701

$0.71

13

RELAY, TURN SIGNAL (MITSUBA)

38301-MJE-D02

$46.06

14

SUSPENSION, TURN SIGNAL RELAY

38306-MGZ-K00

$4.96

15

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.88

16

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.68

17

PGM-FI UNIT

38770-MJE-AA1

$307.46

18

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

19

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

20

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

21

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

22

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.60

23

CLIP, CONNECTOR (BLACK)

91533-S82-003

$4.57

24

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

25

HOLDER, BRACKET (RED)

91554-SM4-003

Unavailable

26

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

27

NUT, FLANGE (6MM)

94050-06080

$0.60

28

WASHER, PLAIN (6MM)

94103-06800

$0.72

29

BOLT, FLANGE (6X10)

95701-06010-08

$1.49

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

31

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

32

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

33

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

34

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

35

FUSE F (7.5A) (MINI)

98200-40750

$1.12

36

FUSE, MINI (10A)

98200-41000

$1.22

37

FUSE, MINI (20A)

98200-42000

$1.12
