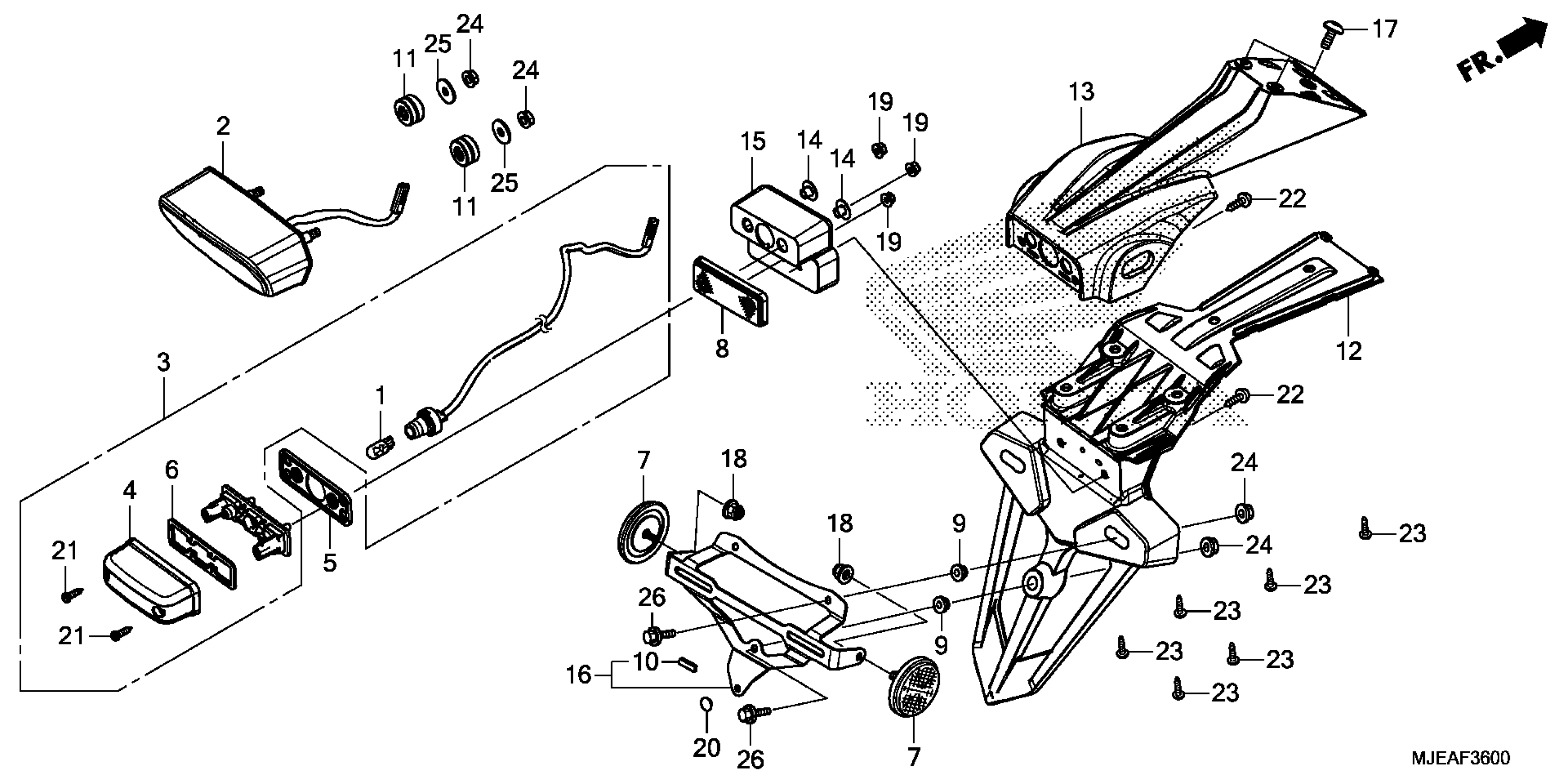

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 TAILLIGHT Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT UNIT (COO) This part replaces 33701-MJE-D01.

33701-MJE-305

$140.26

TAILLIGHT UNIT (COO)

33701-MJE-305

$140.26

LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-MJE-A01.

33720-MJE-305

$51.92

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MJE-305

$51.92

COVER, LICENSE

33721-GET-671

$19.11

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.97

GASKET, LENS

33729-MCZ-003

$9.48

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX

33741-KPL-902

$7.58

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

RUBBER, GARNISH

64306-K04-930

$3.61

RUBBER, SEAT STAY MOUNTING

77209-KAG-900

$1.89

FENDER A, RR.

80101-MJE-A00

$17.95

STAY, RR. FENDER

80104-MJE-D00

$146.80

COLLAR, MOUNTING

80105-K33-D00

$2.67

BRACKET, LICENSE LIGHT

80201-KYJ-920

$8.76

BRACKET ASSY., NUMBER PLATE

84710-MJE-A00

$10.36

BOLT, SPECIAL (6X16)

90107-K26-900

$1.49

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

PLUG, HOLE

90852-446-630

$2.56

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
