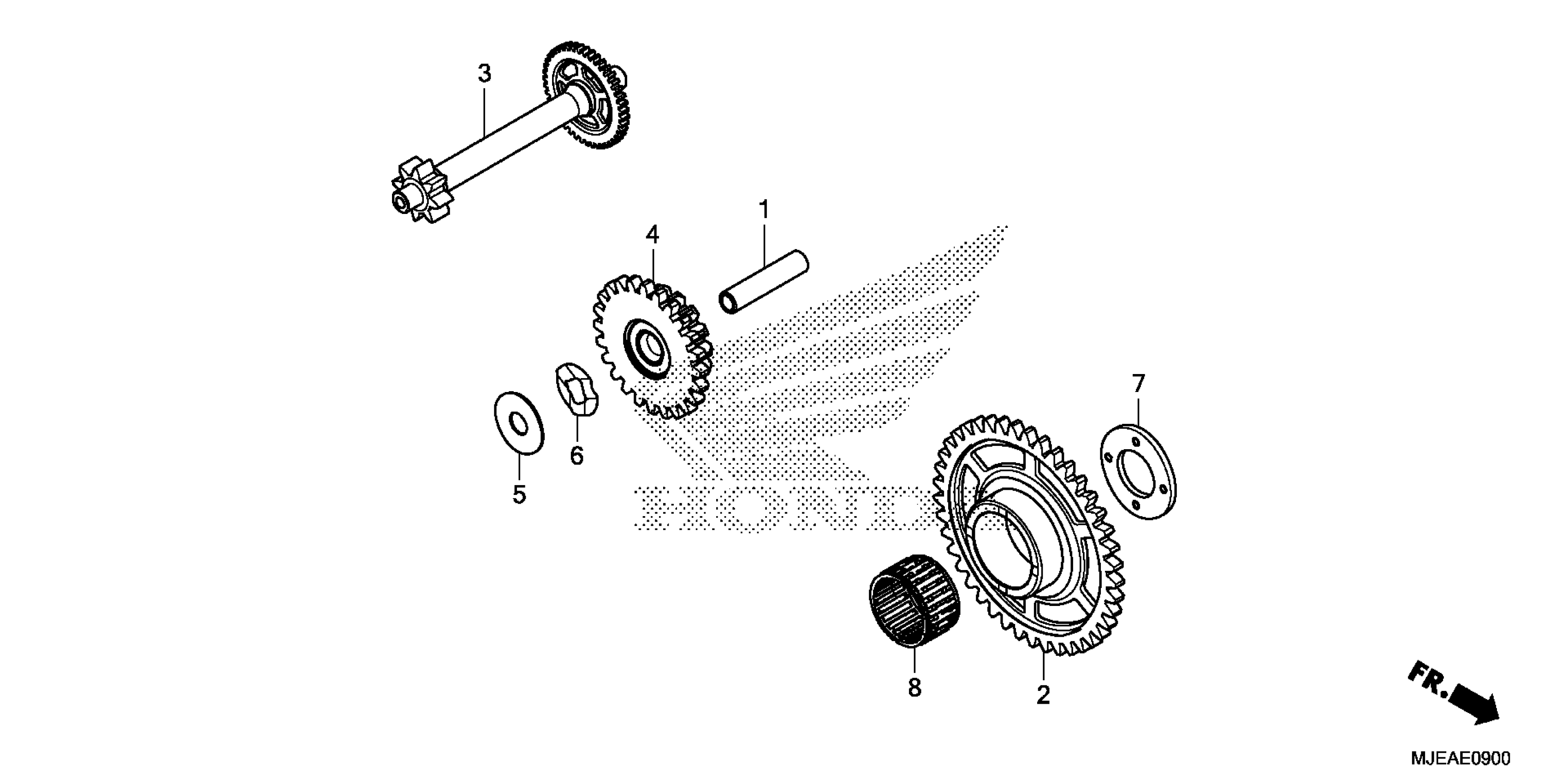

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 STARTING DRIVEN GEAR Diagram

#

Description

Price

1

PIN (10X44)

28102-ME9-000

$9.23

2

GEAR, STARTER DRIVEN (37T)

28111-MJE-D00

$82.04

3

GEAR, STARTER REDUCTION (43T/8T)

28130-MJE-D00

$63.18

4

GEAR B, STARTER REDUCTION (24T/15T)

28140-MJE-D00

$44.50

5

WASHER (10X28X1)

90401-MEE-000

$1.72

6

WASHER, WAVE

90435-MEE-000

$1.72

7

WASHER, THRUST (22.1X42X3)

90456-MFA-D00

$3.40

8

BEARING, NEEDLE (30X35X20)

91101-MJE-D02

$16.10
