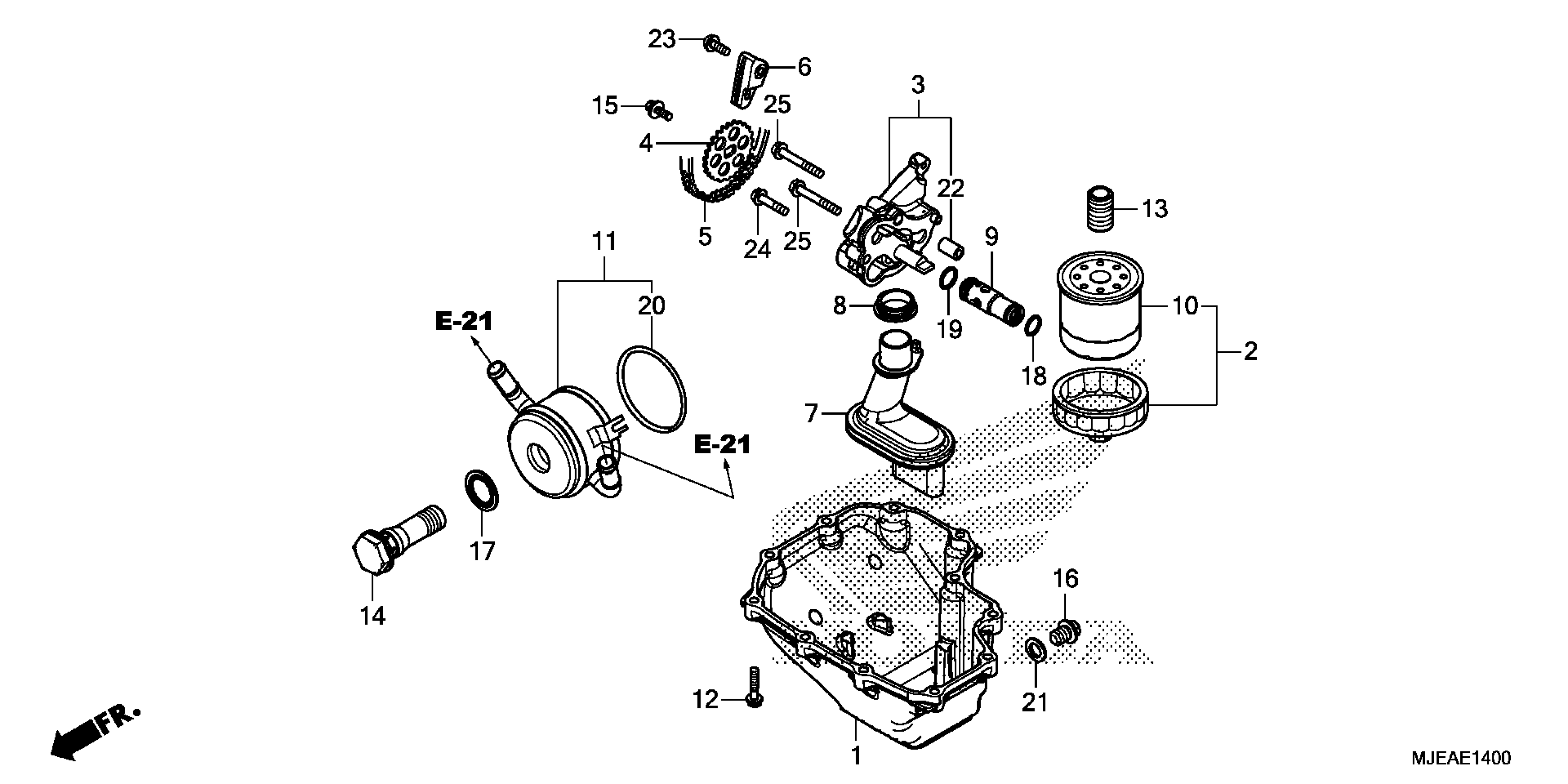

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 OIL PAN@OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MJE-DB0

$81.44

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$18.15

2

FILTER SET, OIL | (Optional).

15010-MKR-305

$18.15

3

PUMP ASSY., OIL

15100-MJE-D00

$41.47

4

SPROCKET, OIL PUMP DRIVEN (26T)

15134-MV9-670

Unavailable

5

CHAIN, OIL PUMP (DID25H-70LE)

15141-MJE-D01

$15.82

6

GUIDE B, OIL PUMP CHAIN

15147-MGE-D00

$15.79

7

STRAINER, OIL

15150-MJE-D00

$13.69

8

GASKET, OIL STRAINER

15154-MAT-000

$5.87

9

VALVE ASSY., RELIEF

15220-MJE-D02

$58.06

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

10

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$14.16

11

COOLER, OIL

15700-MJE-D01

$217.06

12

BOLT, FLANGE (6X28)

90010-MGZ-J00

$0.44

13

BOSS, OIL FILTER

90019-MGZ-J00

$2.09

14

BOLT, OIL COOLER

90019-MJE-D00

$18.82

15

BOLT-WASHER (6X12)

90021-MGZ-J00

$3.79

16

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.03

16

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.03

17

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.90

18

O-RING (13.8X1.9)

91301-PC0-003

$2.46

19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.52

19

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.52

20

O-RING, OIL COOLER

91354-MEJ-641

$3.71

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

22

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

23

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

24

BOLT, FLANGE (6X28)

95701-06028-00

$1.81

25

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

25

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.75
