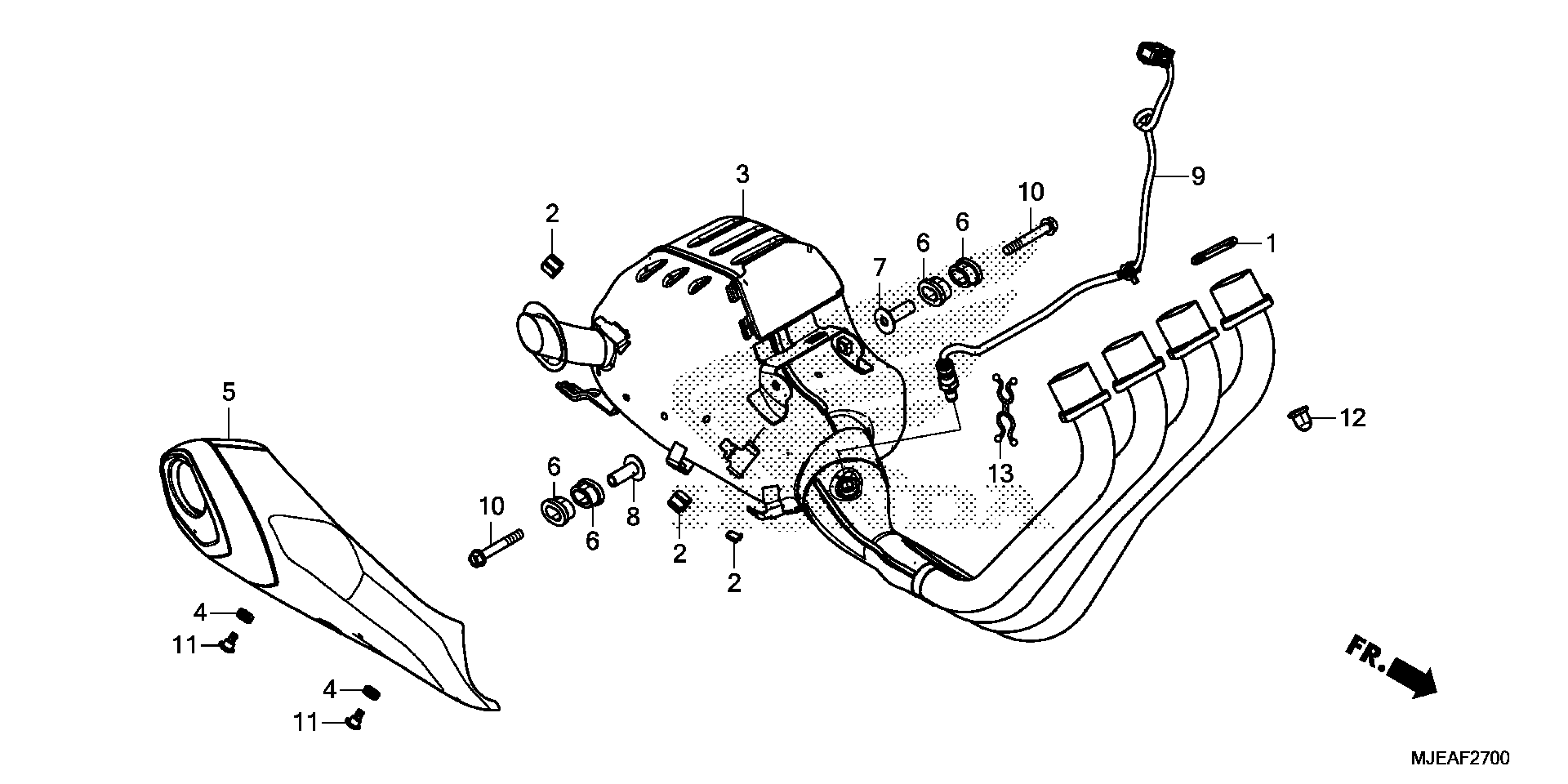

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 MUFFLER Diagram

GASKET, EX. PIPE

18291-MN4-920

$5.31

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER, EX.

18300-MJE-TB0

$1,686.46

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

PROTECTOR, MUFFLER

18355-MJE-TB0

$315.10

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$9.09

COLLAR, L. MUFFLER MOUNTING

18423-MJE-D00

$5.66

COLLAR, R. MUFFLER MOUNTING

18424-MJE-D00

$4.93

SENSOR, OXYGEN This part replaces 36531-MJE-DB1.

36531-MJE-DB2

$142.25

BOLT, FLANGE (8X55)

90103-MJE-D00

$1.82

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

CLIP, WIRE HARNESS

90658-SA0-003

$8.97
