Description

Price

1

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

2

O-RING

42758-MKA-D81

$1.41

3

AXLE, FR. WHEEL

44301-MJE-D00

$49.81

4

COLLAR, R. FR. WHEEL SIDE (BOTH SIDES)

44311-MGH-640

$5.34

6

COLLAR, FR. AXLE DISTANCE

44620-MJE-D00

$7.07

7

WHEEL SUB-ASSY., FR. (TYPE1)

44650-MJE-DB0ZA

$330.28

8

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) This part replaces 44711-MJE-DB1.

44711-MJE-DB2

$238.32

8

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MJE-DB2

$238.32

9

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$3.91

9

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.78

9

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.54

9

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$1.23

9

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$2.71

9

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.18

10

DISK, FR. BRAKE (SUNSTAR) (R. SIDE)

45251-MGZ-J01

$167.13

11

DISK, L. FR. BRAKE (SUNSTAR)

45351-MJE-D01

$159.82

12

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

13

BOLT, FR. AXLE

90305-ML7-000

$9.03

14

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

15

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66

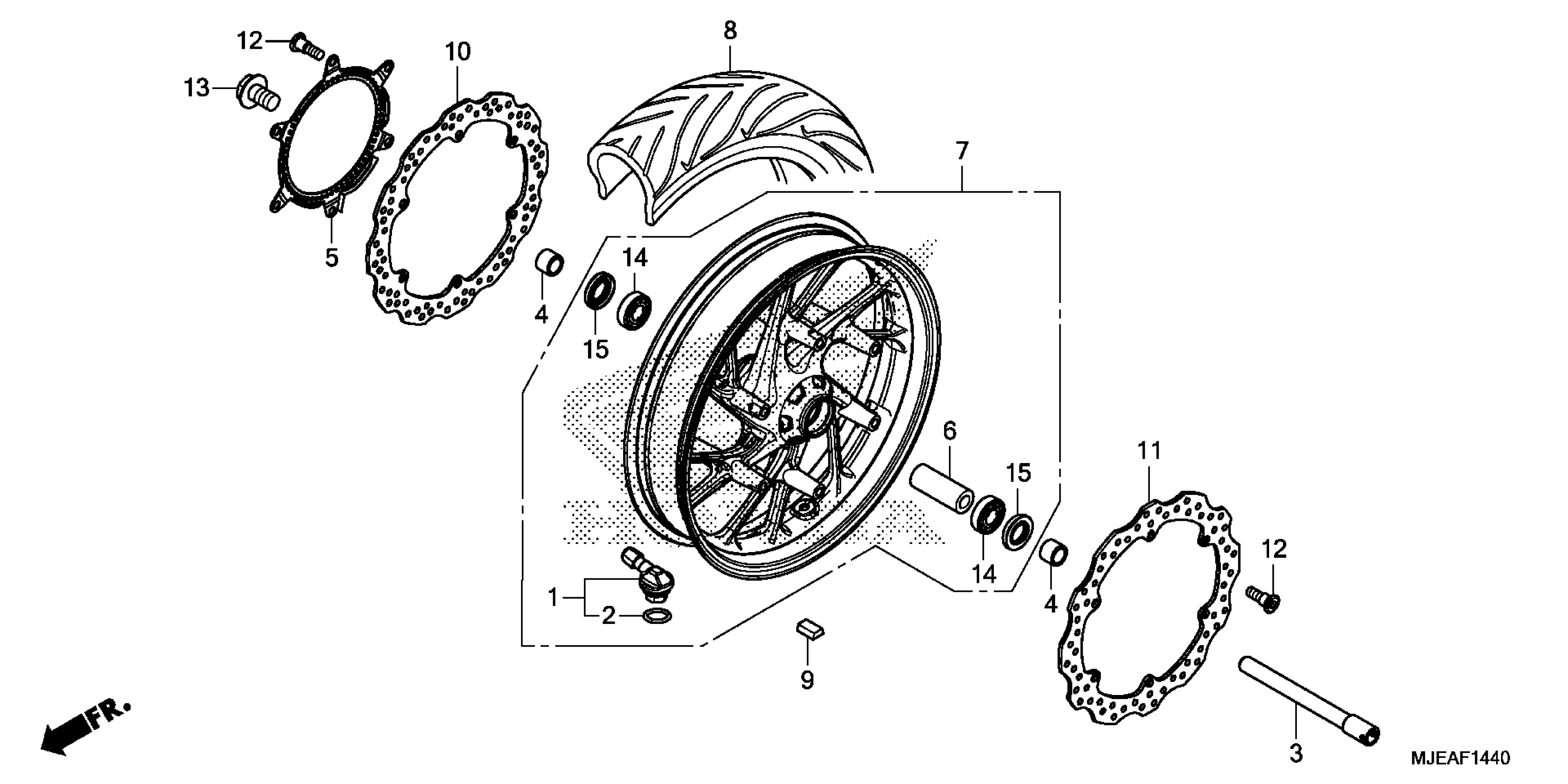

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 FRONT WHEEL Diagram
