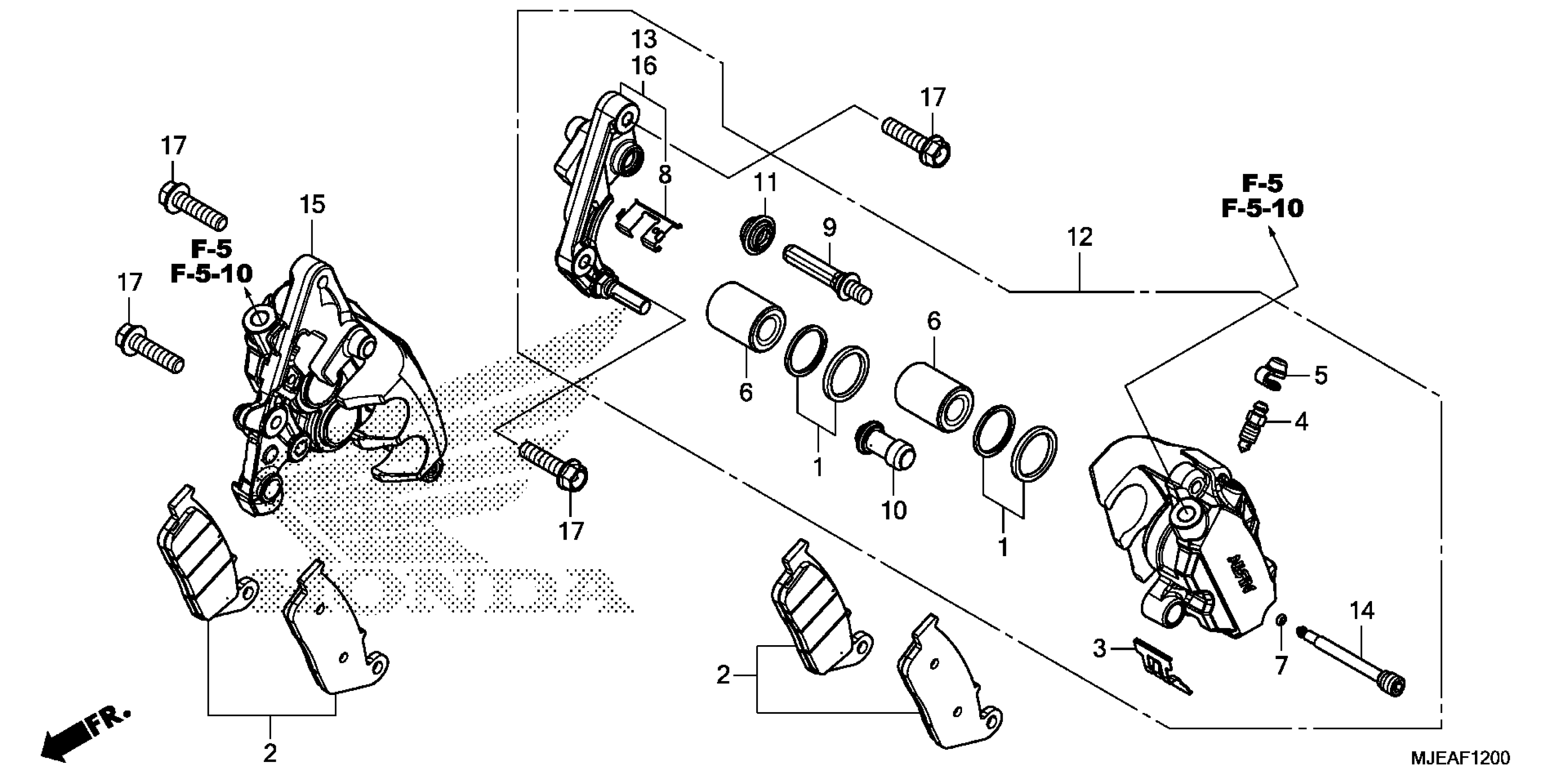

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.24

PAD SET, FR.

06455-MJE-D02

$76.25

SPRING, PAD

43108-MCT-006

$4.58

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PISTON (NISSIN)

45107-MN5-006

$34.00

RING, STOPPER

45111-MAJ-G41

$3.54

RETAINER

45112-MS9-611

$5.07

BOLT A, PIN (NISSIN)

45131-ML7-921

$13.86

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MJE-DB1

$150.72

BRACKET SUB-ASSY., L. FR. (NISSIN)

45190-MJE-DB1

$40.35

PIN, HANGER

45215-MAJ-G41

$5.99

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJE-AA1

$149.52

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-J31

$81.16

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.43
