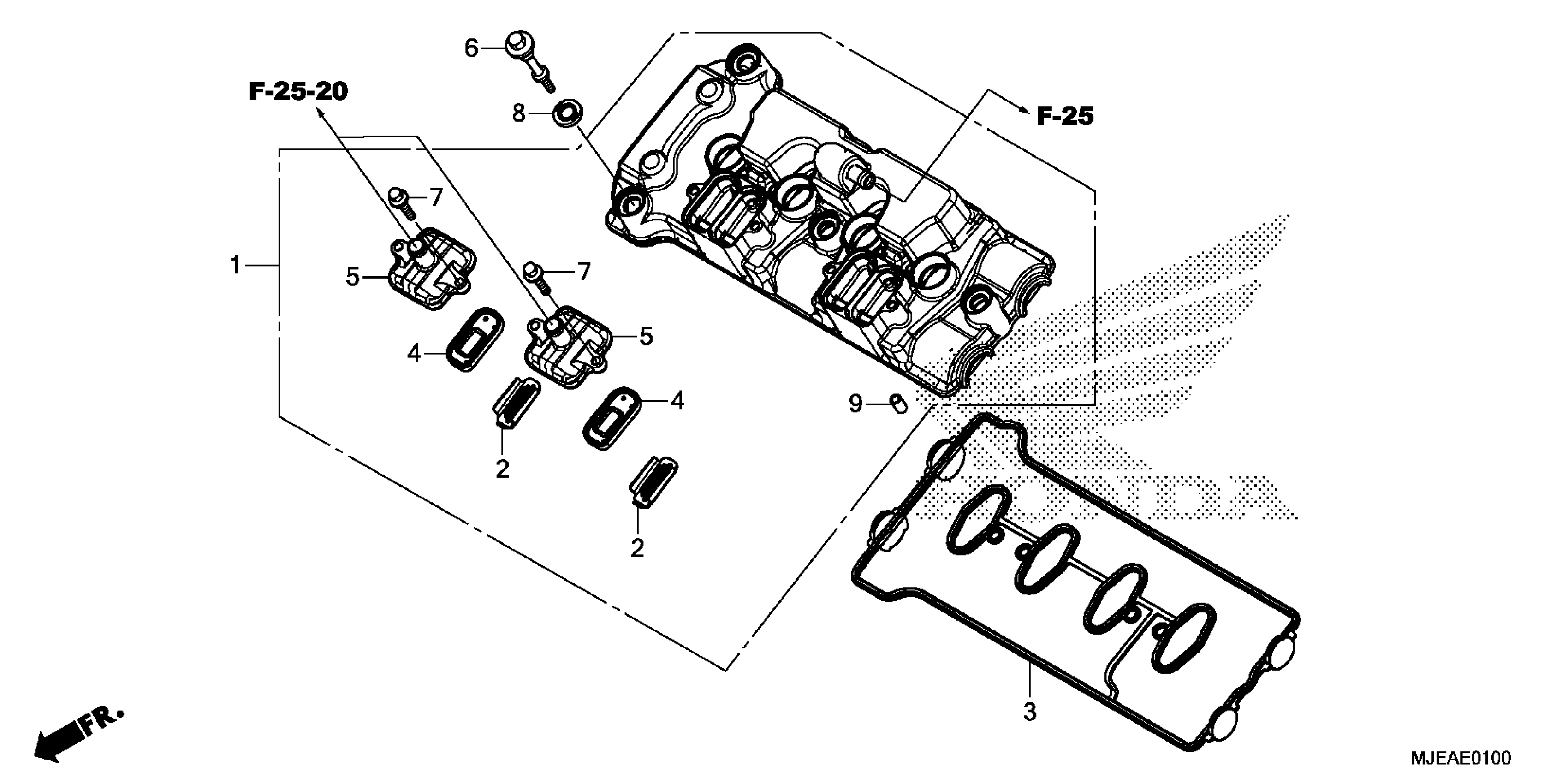

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12310-MJE-DB0

$295.39

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, CYLINDER HEAD COVER

12391-MJE-D00

$129.22

VALVE, REED (ARAI)

18601-KEA-741

$17.20

COVER, REED VALVE

18612-MJW-J00

$12.64

BOLT, HEAD COVER

90002-MY5-850

$8.51

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.78

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04
