Description

Price

1

CRANKCASE SET

11000-MJE-DB0

$2,697.20

2

ORIFICE (1.2MM)

11104-MJE-D00

$2.39

3

SUB-HARNESS, OIL PRESSURE

32102-MJE-D00

$8.04

4

STAY, HARNESS CLIP

32159-MJE-D00

$0.99

5

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$44.51

6

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$19.00

7

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$23.38

8

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.33

9

BOLT, UBS (8X98)

90004-MFG-D01

$1.54

10

BOLT, SOCKET (8X12)

90010-MEL-000

$1.72

11

BOLT, SEALING (22MM)

90048-MFL-000

$8.65

12

BOLT, FLANGE (6X14)

90101-MCZ-D00

$1.36

13

WASHER, NEUTRAL

90443-MJ6-000

$1.75

14

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.00

15

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

16

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

17

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

18

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$1.97

19

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

20

BOLT, FLANGE (10X75)

95701-10075-00

$2.22

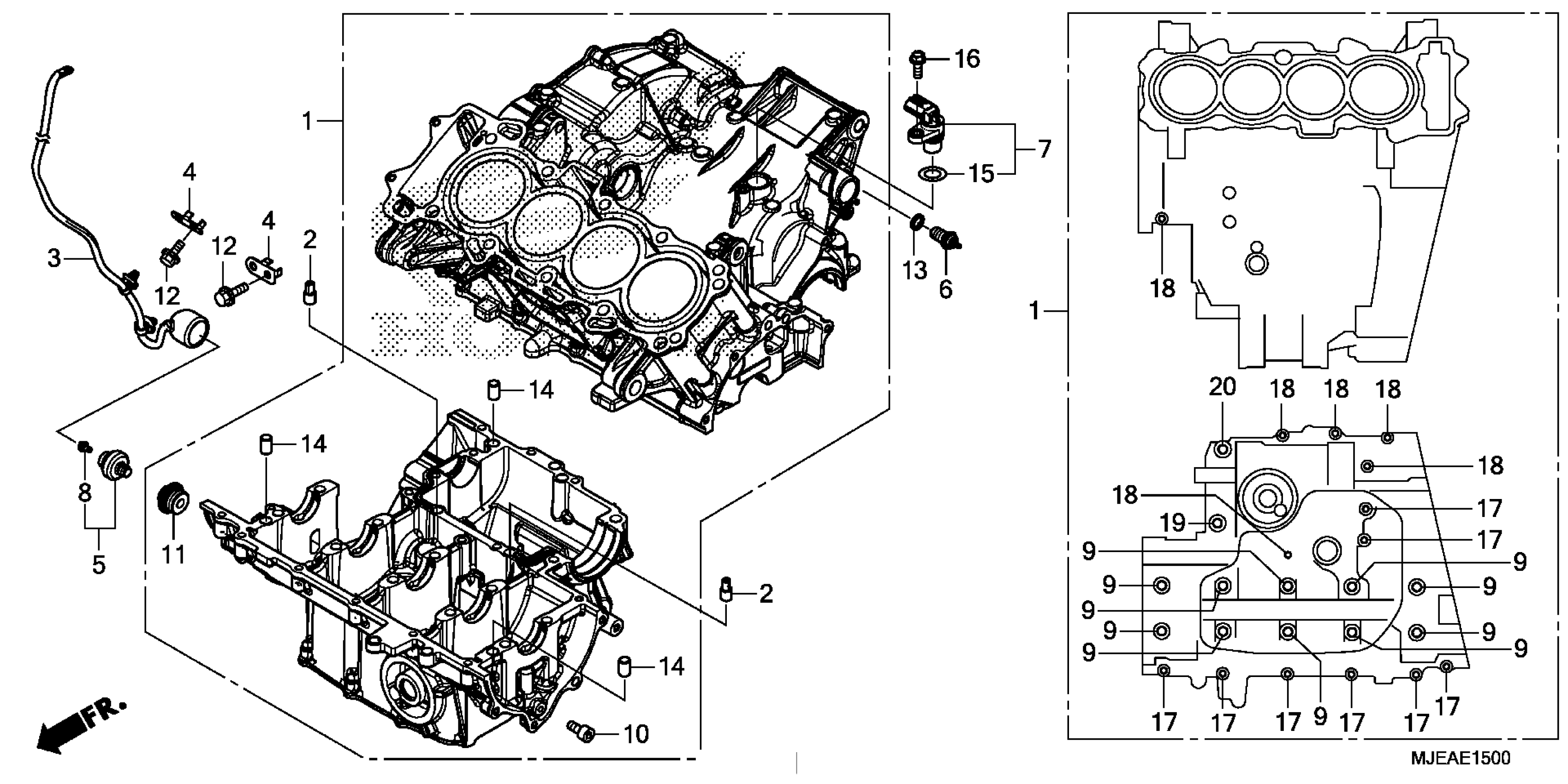

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 CRANKCASE Diagram
