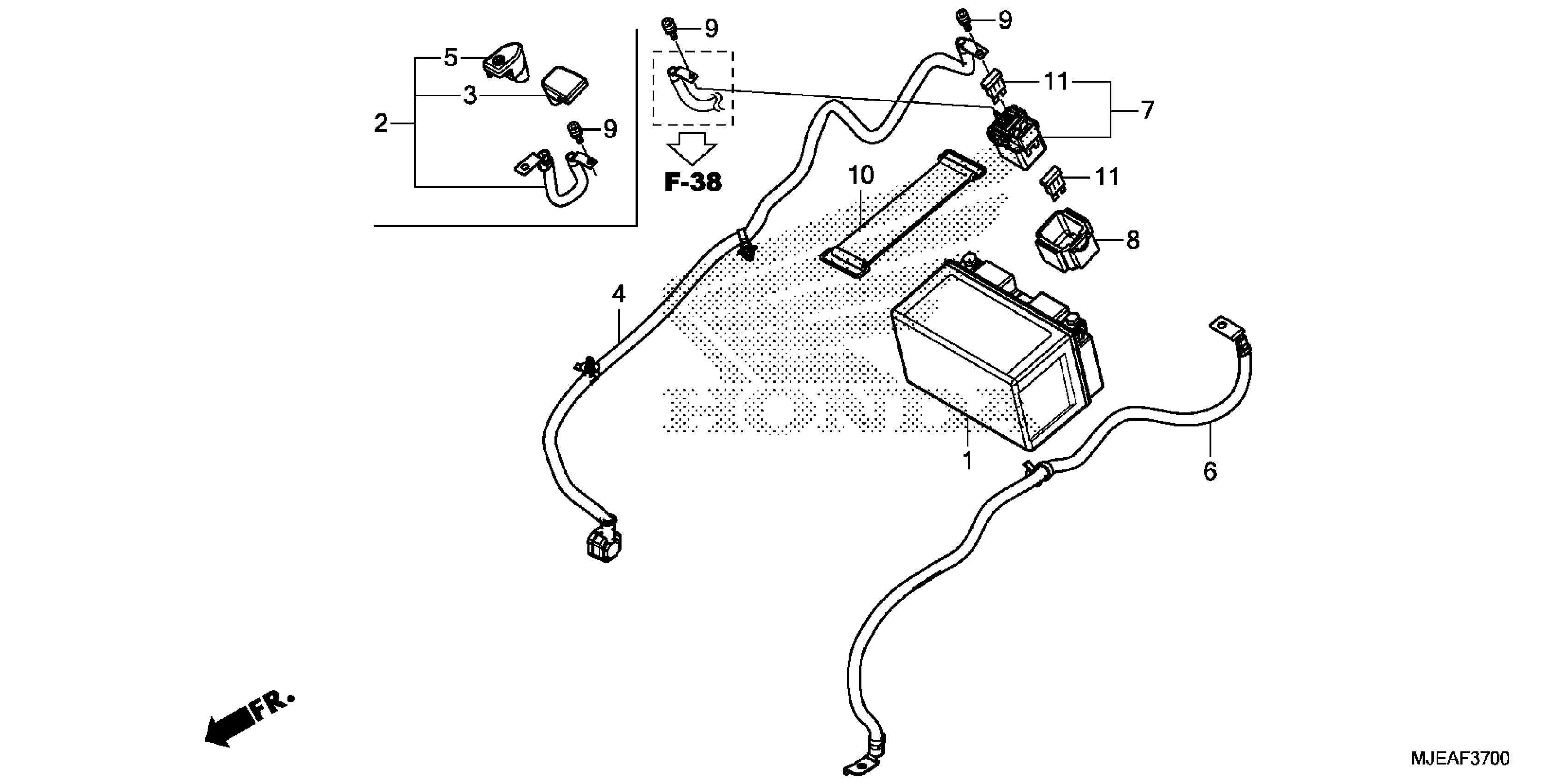

Honda CB650F2A (18) CB650F, THA, VIN# MLHRC750-J5000001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MCJ-642AH.

31500-MCJ-643

$161.80

1

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MGZ-A01.

31500-MCJ-643

$161.80

2

CABLE, STARTER BATTERY

32401-MJE-D00

$47.99

3

COVER, STARTER MAGNETIC TERMINAL

32406-MT4-010

$5.83

4

CABLE, STARTER MOTOR

32410-MJE-D00

$38.88

5

COVER, BATTERY TERMINAL

32414-MJE-D00

$10.46

6

CABLE, BATTERY GROUND

32601-MJE-D00

$30.65

7

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$70.03

8

RUBBER, SHOCK

35856-MBG-003

$8.30

9

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

10

BAND F, BATTERY (155MM)

95012-17001

$6.72

11

FUSE, BLADE (30A)

98200-33000

$1.19
