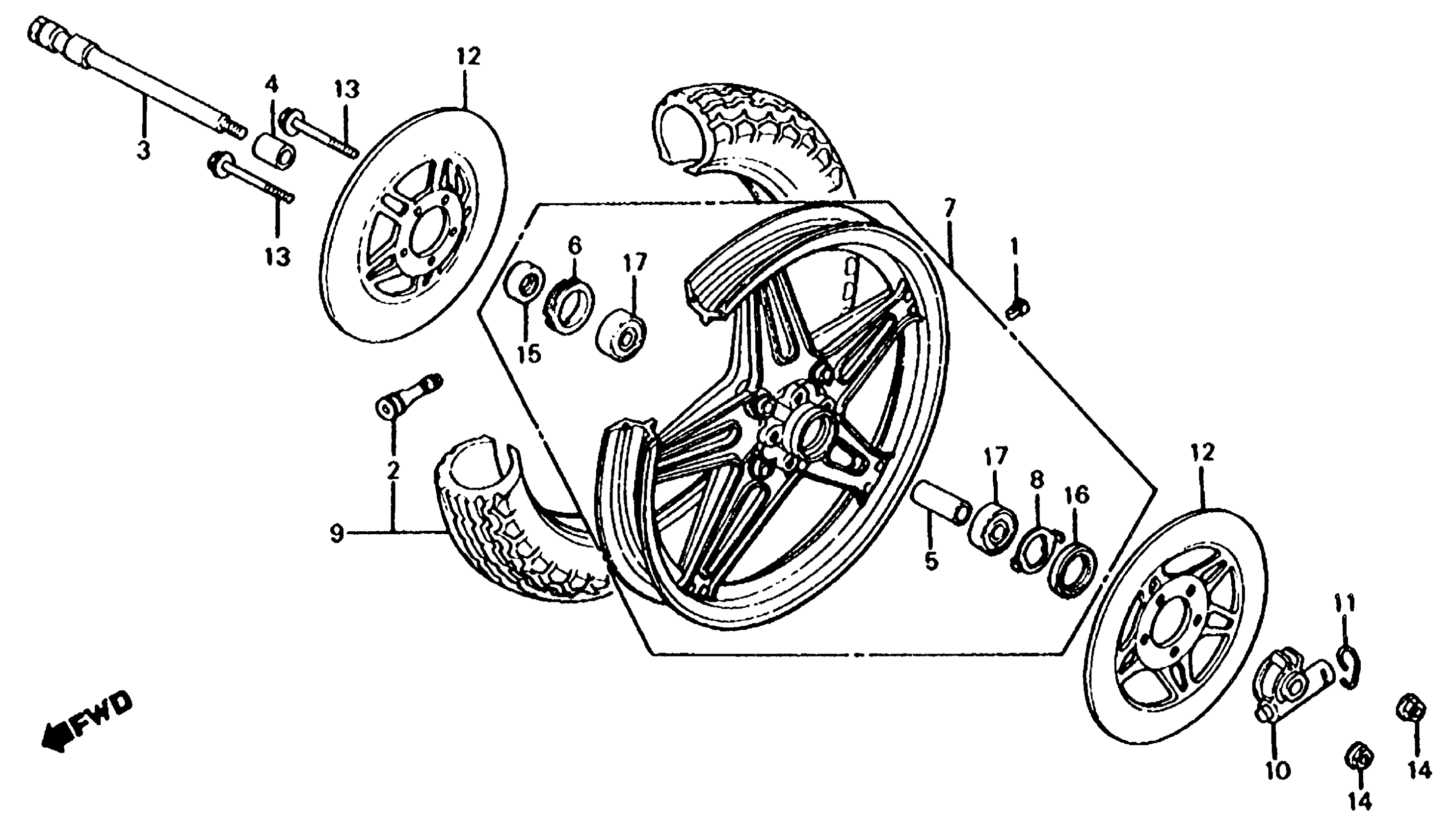

Honda CB650CA (81) 650 CUSTOM, JPN, VIN# JH2RC051-BM100001 TO JH2RC051-BM118458 CB650C FRONT WHEEL 81 Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL

44301-461-770

Unavailable

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-461-770.

44311-460-840

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

6

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

7

WHEEL, FR. (NOT AVAILABLE) This part replaces 44650-463-670.

44650-463-671

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-463-671

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE)

44710-MC9-671

Unavailable

9

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE) This part replaces 44710-449-751.

44710-MC9-671

Unavailable

9

TIRE ASSY., FR. (3.50S19) (DUNLOP) (NOT AVAILABLE) This part replaces 44710-449-752.

44710-460-842

Unavailable

9

TIRE ASSY., FR. (3.50S19) (DUNLOP) (NOT AVAILABLE)

44710-460-842

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-461-771

Unavailable

11

CLIP, SPEEDOMETER CABLE

44810-461-771

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-422-020

Unavailable

13

BOLT, FLANGE (8X104) (NOT AVAILABLE)

90103-438-000

Unavailable

14

NUT, HEX. (8MM)

90309-357-000

$3.40

15

DUST SEAL (22X36X8)

91252-300-003

$10.73

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

17

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
