- CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218
SWINGARM + CHAIN CASE

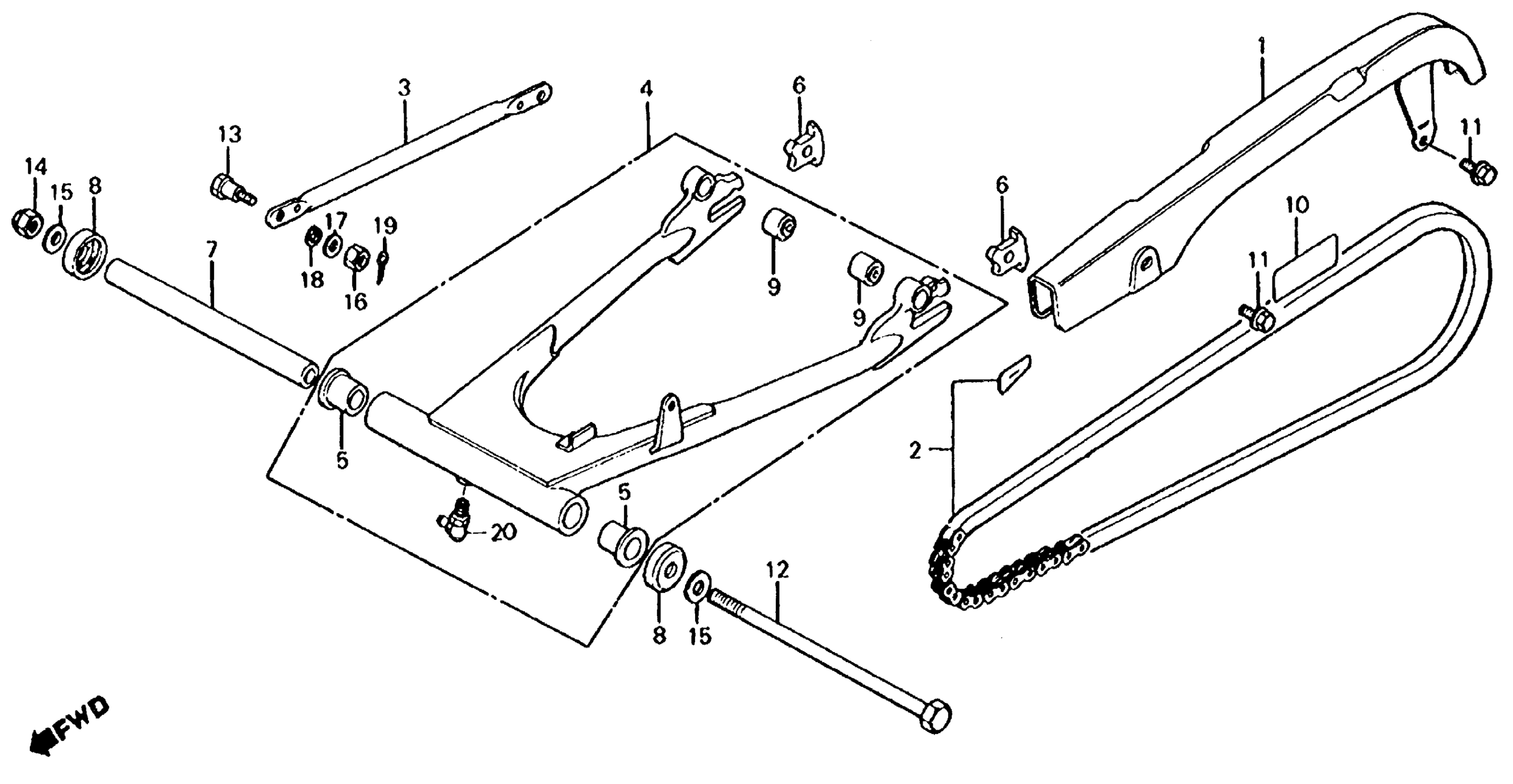

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 SWINGARM + CHAIN CASE Diagram
#
Description
Price
1
CASE, DRIVE CHAIN | Use up to Frame SN 2015000
40510-460-000
Unavailable
1
CASE, DRIVE CHAIN (NOT AVAILABLE) | Use from Frame SN 2015001
40510-460-010
Unavailable
2
CHAIN SET, DRIVE (RK50M0-104L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40535-460-671.
40535-460-672
Unavailable
2
CHAIN SET, DRIVE (RK50M0-104L) (TAKASAGO) (NOT AVAILABLE)
40535-460-672
Unavailable
3
ARM, RR. BRAKE STOPPER This part replaces 43431-460-000.
43431-460-010
Unavailable
3
ARM, RR. BRAKE STOPPER
43431-460-010
Unavailable
4
SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)
52100-460-000ZA
Unavailable
5
BUSH, RR. SWINGARM
52108-460-300
Unavailable
6
STOPPER, CHAIN ADJUSTER
52136-ME1-670
Unavailable
6
STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.
52136-ME1-670
Unavailable
6
STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.
52136-ME1-670
Unavailable
7
COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)
52141-460-000
Unavailable
8
CAP, DUST SEAL (NOT AVAILABLE)
52144-460-003
Unavailable
9
BUSH, RR. SHOCK ABSORBER
52451-357-000
Unavailable
10
MARK, TIRE CAUTION | Use up to Frame SN 2011787
87505-460-671
Unavailable
10
MARK, TIRE CAUTION (NOT AVAILABLE) | Use from Frame SN 2011788
87505-460-672
Unavailable
11
BOLT, FLANGE (6X8) (NOT AVAILABLE)
90014-460-000
Unavailable
12
BOLT, SWINGARM PIVOT (NOT AVAILABLE)
90121-460-000
Unavailable
14
NUT, SELF-LOCK (16MM) (NOT AVAILABLE)
90354-425-830
Unavailable
15
WASHER (16MM) (NOT AVAILABLE)
90600-425-830
Unavailable
