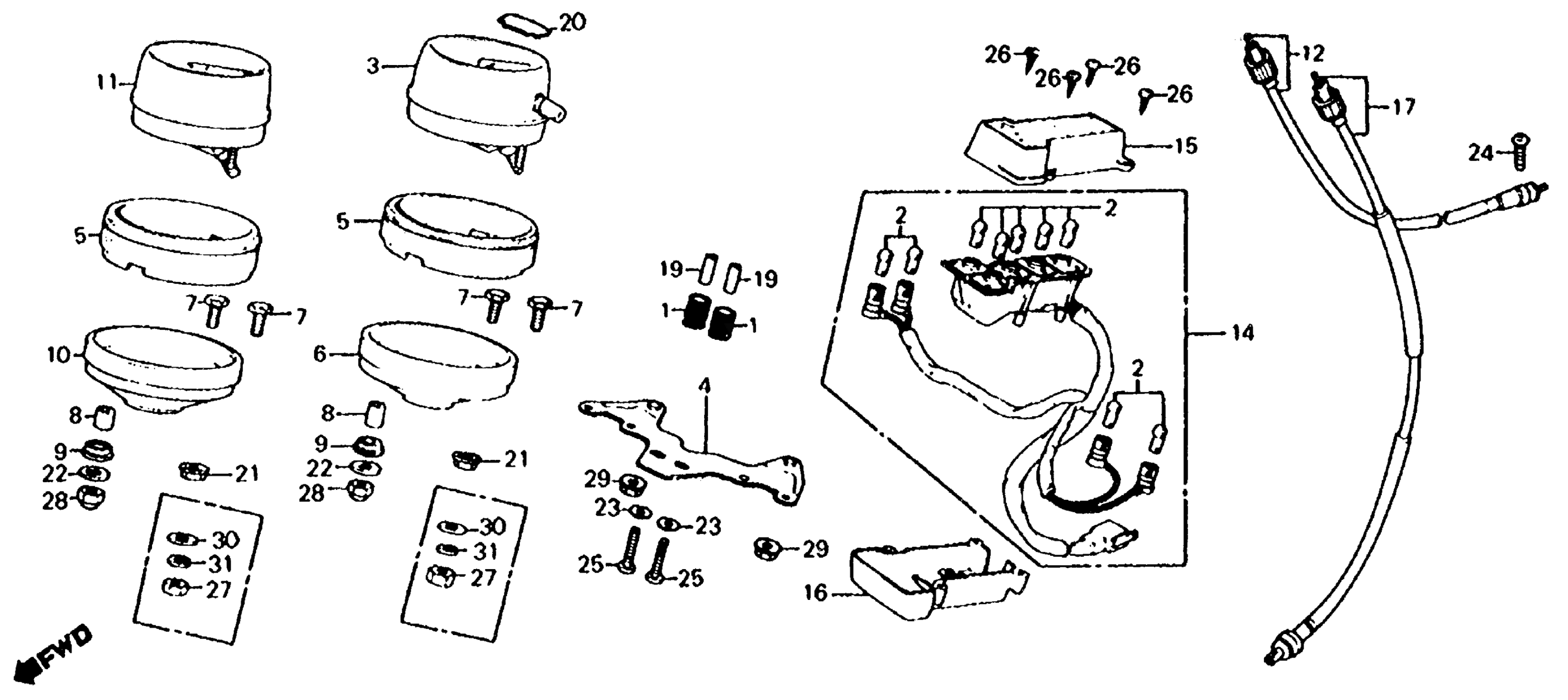

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

2

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

3

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 37200-470-671.

37200-470-672

Unavailable

3

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-470-672

Unavailable

3

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE)

37200-MA5-671

Unavailable

3

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE) | Use up to Frame SN 2015000 This part replaces 37150-MA5-770.

37200-MA5-671

Unavailable

3

SPEEDOMETER ASSY. (MPH) (DENSO) (NOT AVAILABLE) | Use up to Frame SN 2015000 This part replaces 37200-460-672.

37200-MA5-671

Unavailable

4

BRACKET, METER (NOT AVAILABLE)

37211-460-000

Unavailable

5

RUBBER, SPEEDOMETER

37235-323-700

$22.28

6

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

7

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

8

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

9

RUBBER, METER SETTING

37244-307-670

$2.67

10

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

11

TACHOMETER ASSY. (DENSO)

37250-MA5-671

Unavailable

11

TACHOMETER ASSY. (NIPPON SEIKI) (NOT AVAILABLE) TACHOMETER ASSY. (DENSO) | Use from Frame SN 2015001

37250-426-008

Unavailable

11

TACHOMETER ASSY. (DENSO) | Use up to Frame SN 2015000 This part replaces 37250-426-009.

37250-MA5-671

Unavailable

11

TACHOMETER ASSY. (DENSO) This part replaces 37250-426-019.

37250-MA5-671

Unavailable

11

TACHOMETER ASSY. (DENSO) | Use up to Frame SN 2015000 This part replaces 37250-426-019.

37250-MA5-671

Unavailable

11

TACHOMETER ASSY. (DENSO) | Use up to Frame SN 2015000 This part replaces 37250-426-770.

37250-MA5-671

Unavailable

11

TACHOMETER ASSY. (NIPPON SEIKI) (NOT AVAILABLE) TACHOMETER ASSY. (DENSO) | Use up to Frame SN 2015000

37250-460-008

Unavailable

11

TACHOMETER ASSY. (DENSO) | Use up to Frame SN 2015000 This part replaces 37250-460-009.

37250-MA5-671

Unavailable

12

CABLE ASSY., TACHOMETER

37260-GE2-000

Unavailable

12

CABLE ASSY., TACHOMETER This part replaces 37260-426-000.

37260-GE2-000

Unavailable

14

SOCKET ASSY., RUBBER (NIPPON SEIKI)

37619-449-671

Unavailable

14

SOCKET ASSY., RUBBER (DENSO) (NOT AVAILABLE)

37619-460-672

Unavailable

15

CASE, PILOT (UPPER) (NOT AVAILABLE)

37620-415-881

Unavailable

16

CASE, PILOT (LOWER) (NOT AVAILABLE)

37621-449-008

Unavailable

17

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

17

CABLE ASSY., SPEEDOMETER This part replaces 44830-426-000.

44830-KB4-700

Unavailable

19

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

20

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

21

NUT, METER MOUNT

90303-426-000

Unavailable

22

WASHER (6.5X18)

90545-323-700

$1.89

23

WASHER (20MM)

90581-310-000

$1.90

23

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

24

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

24

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

24

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

25

SCREW, PAN (5X28)

93500-05028-0A

$1.49

26

SCREW, TAPPING (4X12)

93901-34380

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06070.

94001-06070-0S

$1.49

27

NUT, HEX. (6MM)

94001-06070-0S

$1.49

28

NUT, CAP (6MM)

94021-06020

$1.73

29

NUT, FLANGE (6MM)

94050-06000

$1.49

30

WASHER, PLAIN (6MM)

94101-06700

$1.49

31

WASHER, SPRING (6MM)

94111-06700

$1.49
