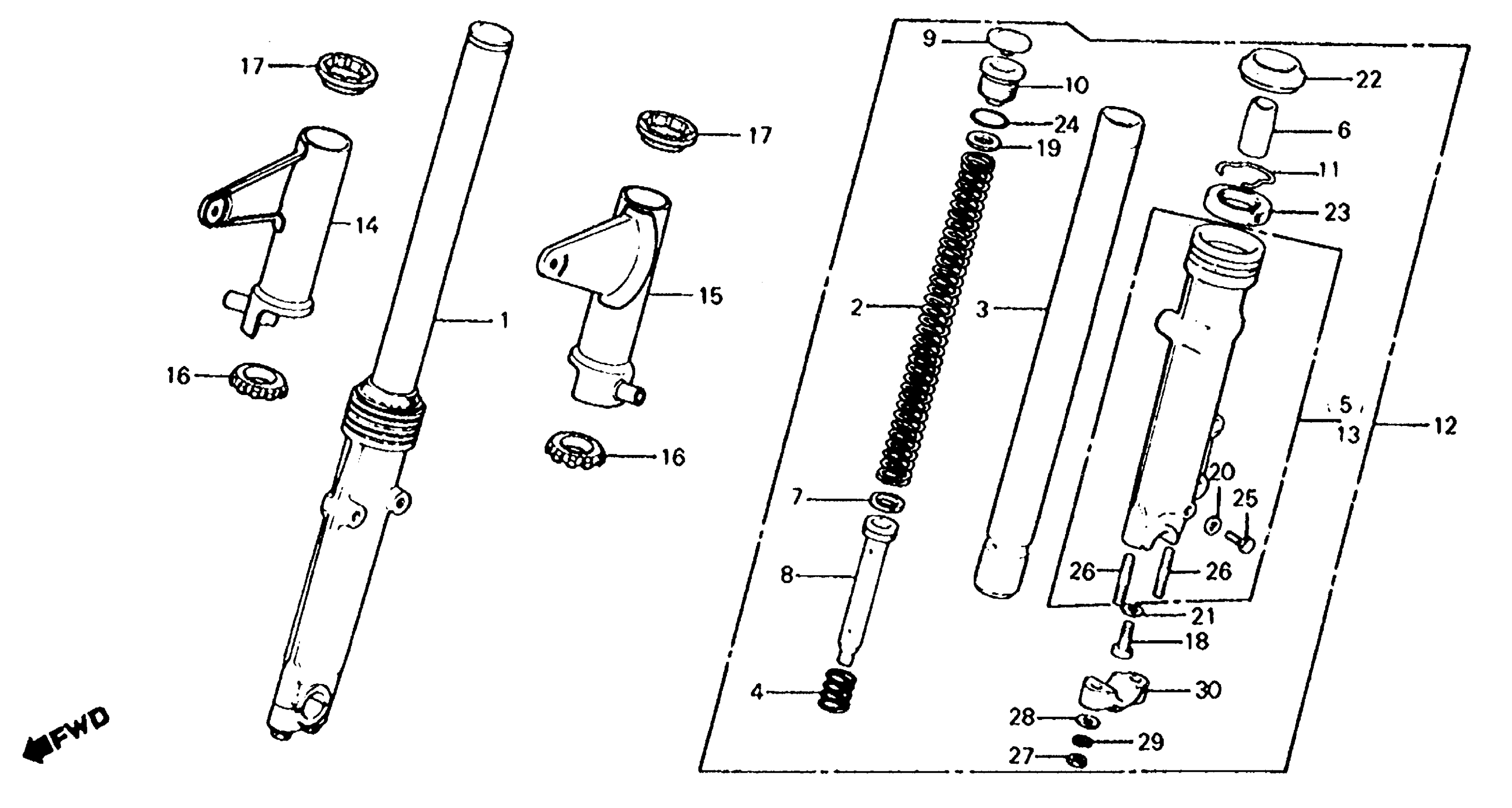

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 FRONT FORK 80 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE) | Use up to Frame SN 2009951 This part replaces 51400-460-003.

51400-460-013

Unavailable

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE) | Use from Frame SN 2009952

51400-460-013

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-460-003

Unavailable

3

PIPE, FR. FORK This part replaces 51410-460-003.

51410-445-701

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

5

CASE, R. (LOWER) (NOT AVAILABLE)

51421-426-013

Unavailable

6

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

7

RING, PISTON

51437-400-771

$6.30

8

PIPE, SEAT (NOT AVAILABLE)

51440-460-003

Unavailable

9

CAP, FORK PIPE

51449-428-003

Unavailable

10

BOLT, FR. FORK

51454-422-003

Unavailable

10

BOLT, FR. FORK (NOT AVAILABLE)

51454-428-003

Unavailable

11

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

11

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

12

FORK ASSY., L. FR. (SHOWA) | Use up to Frame SN 2009951 This part replaces 51500-460-003.

51500-460-013

Unavailable

12

FORK ASSY., L. FR. (SHOWA) | Use up to Frame SN 2009951

51500-460-013

Unavailable

12

FORK ASSY., L. FR. (SHOWA) | Use from Frame SN 2104871

51500-460-013

Unavailable

13

CASE, L. (LOWER) (NOT AVAILABLE)

51521-426-013

Unavailable

14

COVER, R. FR. FORK (NOT AVAILABLE)

51602-460-000

Unavailable

15

COVER, L. FR. FORK (NOT AVAILABLE)

51606-460-000

Unavailable

16

RUBBER B, FR. FORK COVER

51622-323-000

Unavailable

17

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

WASHER, FR. FORK (NOT AVAILABLE)

90504-425-003

Unavailable

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

DUST SEAL (35MM) | Use from Frame SN 2009952 This part replaces 91254-400-771.

91254-434-003

$13.96

22

DUST SEAL (35MM)

91254-434-003

$13.96

23

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use up to Frame SN 2009951

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use up to Frame SN 2009951 This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use up to Frame SN 2009951 This part replaces 91255-434-003.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

23

OIL SEAL (35X48X11) | Use up to Frame SN 2009951 This part replaces 91255-434-013.

91255-KBH-003

$13.24

24

O-RING (25.7X2.8)

91356-428-003

$3.60

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

26

BOLT, STUD (8X50)

92900-08028-3B

$1.59

27

NUT, HEX. (8MM)

94030-08000

$1.49

28

WASHER, PLAIN (8MM)

94101-08000

$1.49

29

WASHER, SPRING (8MM)

94111-08000

$1.49

30

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
