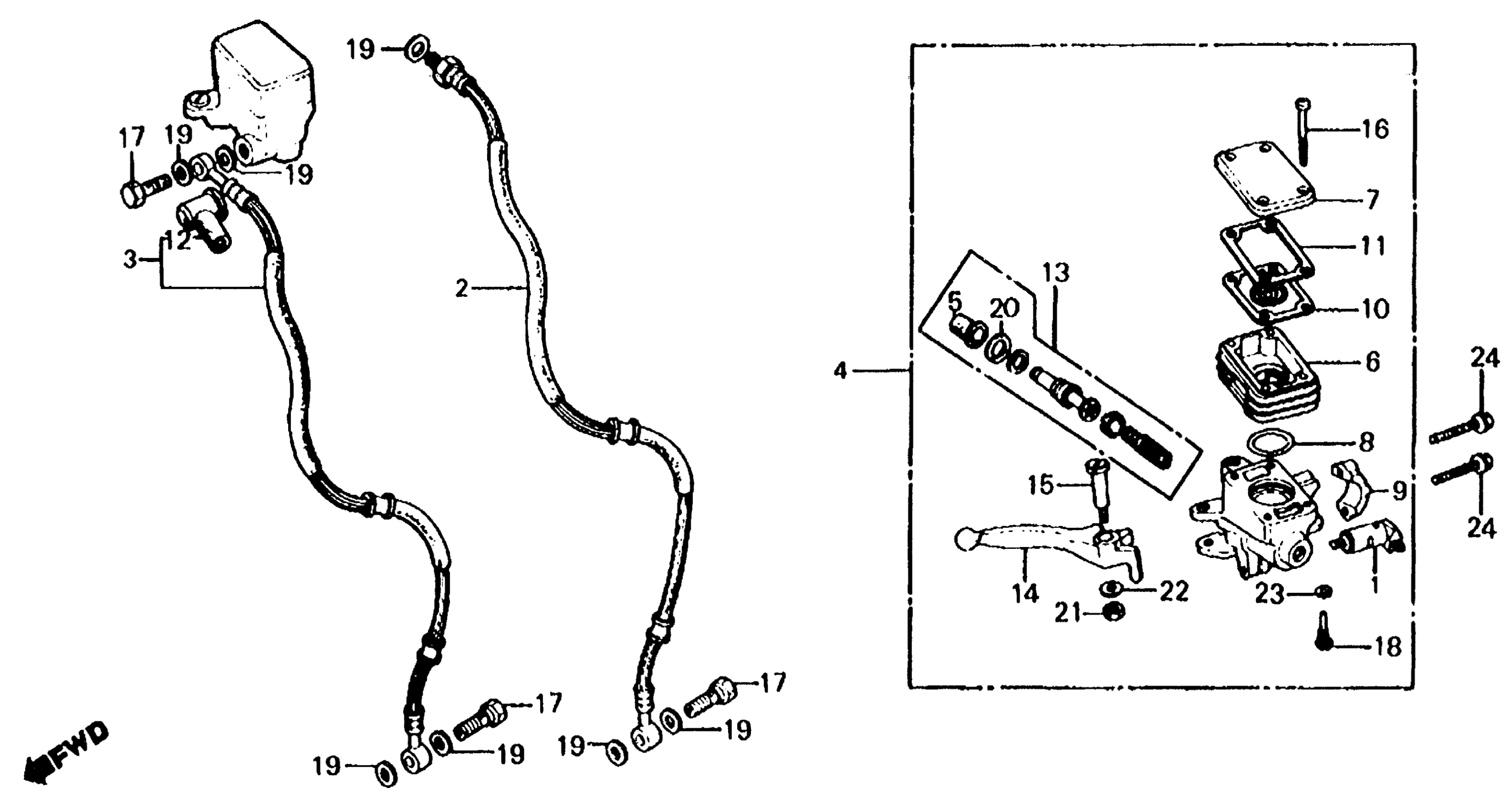

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 FRONT BRAKE MASTER CYLINDER 80 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP | Use up to Frame SN 2003510 This part replaces 35340-422-003.

35340-422-013

$17.65

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-460-013

Unavailable

4

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-449-405) | Use up to Frame SN 2003510 This part replaces 45500-449-771.

45500-449-772

Unavailable

4

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-449-405) | Use from Frame SN 2003511

45500-449-772

Unavailable

5

BOOT

45504-410-003

$12.16

6

CUP, OIL This part replaces 45511-438-006.

45511-463-006

Unavailable

6

CUP, OIL

45511-463-006

Unavailable

7

CAP, OIL CUP

45513-422-672

Unavailable

8

O-RING (39.7X3.5)

45516-422-006

$9.13

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

9

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

10

DIAPHRAGM

45520-422-026

Unavailable

11

PLATE, DIAPHRAGM

45521-422-006

Unavailable

13

MASTER CYLINDER SET This part replaces 45530-442-305.

45530-442-315

Unavailable

13

MASTER CYLINDER SET

45530-442-315

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

15

BOLT, R. HANDLEBAR CONTROL LEVER PIVOT

90114-422-000

Unavailable

16

SCREW, CAP (4X35)

90137-422-006

$3.30

17

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

17

BOLT, OIL

90145-300-010

$9.68

18

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

21

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

21

NUT, HEX. (6MM)

94002-06000-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (4MM)

94111-04000

$1.49

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
