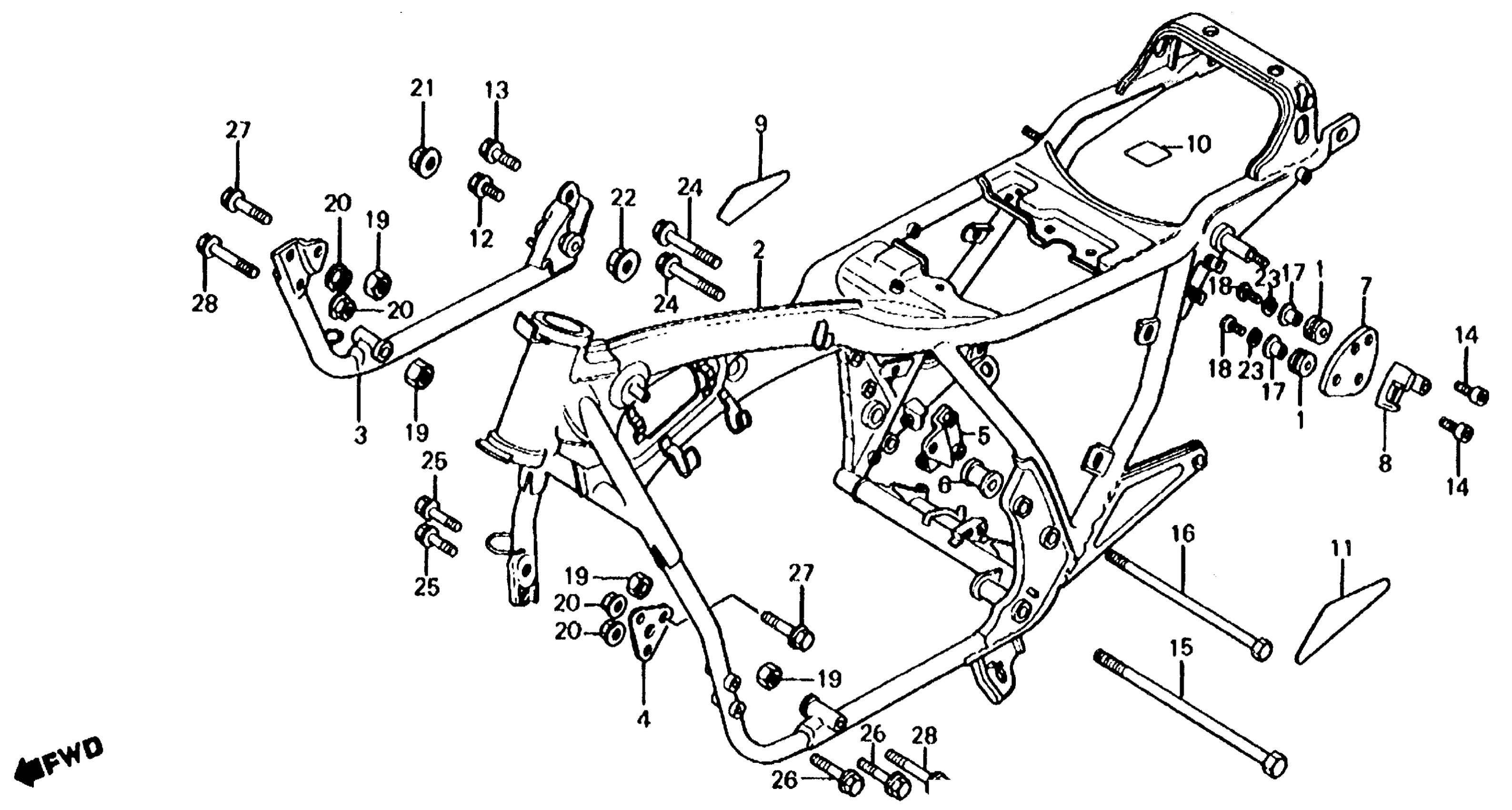

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 FRAME Diagram

#

Description
Price

1

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

1

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

2

FRAME *NH1* (BLACK)

50100-460-010ZA

Unavailable

3

SUB-FRAME

50111-426-010

Unavailable

4

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-323-010B

Unavailable

5

BRACKET, RR. ENGINE HANGER (NOT AVAILABLE)

50356-460-000

Unavailable

6

COLLAR, L. ENGINE SIDE (UPPER) (NOT AVAILABLE)

50359-323-010

Unavailable

7

BRACKET, HELMET HOLDER (NOT AVAILABLE)

50709-460-000

Unavailable

8

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

8

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

9

MARK, MUFFLER CAUTION (NOT AVAILABLE)

87504-460-300

Unavailable

11

MARK, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-460-300

Unavailable

12

BOLT, FLANGE (8X20)

90103-426-000

$3.30

13

BOLT,FLANGE,8X28 This part replaces 90104-426-000.

90103-ML0-000

Unavailable

14

BOLT, SOCKET (6X12) (NOT AVAILABLE)

90105-460-000

Unavailable

15

BOLT (12X330) (NOT AVAILABLE)

90107-426-000

Unavailable

16

BOLT, RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)

90108-323-000

Unavailable

17

WASHER, FR. COVER SETTING

90501-124-000

$3.74

18

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

18

SCREW, PAN (6X16)

93500-06016-0A

$1.49

19

NUT, HEX. (10MM)

94030-10000

$1.49

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

NUT, FLANGE (10MM)

94050-10000

$1.59

22

NUT, FLANGE (12MM)

94050-12000

$1.49

23

WASHER, SPRING (6MM)

94111-06000

$1.49

24

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

24

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

25

BOLT, FLANGE (8X35) (NOT AVAILABLE)

95800-08035-00

Unavailable

26

BOLT, FLANGE (8X55) (NOT AVAILABLE)

95800-08055-00

Unavailable

27

BOLT, FLANGE (10X50) This part replaces 95800-10050-00.

95801-10050-00

$6.23

27

BOLT, FLANGE (10X50)

95801-10050-00

$6.23

28

BOLT, FLANGE (10X80) This part replaces 95800-10080-00.

95801-10080-00

$2.92

28

BOLT, FLANGE (10X80)

95801-10080-00

$2.92
