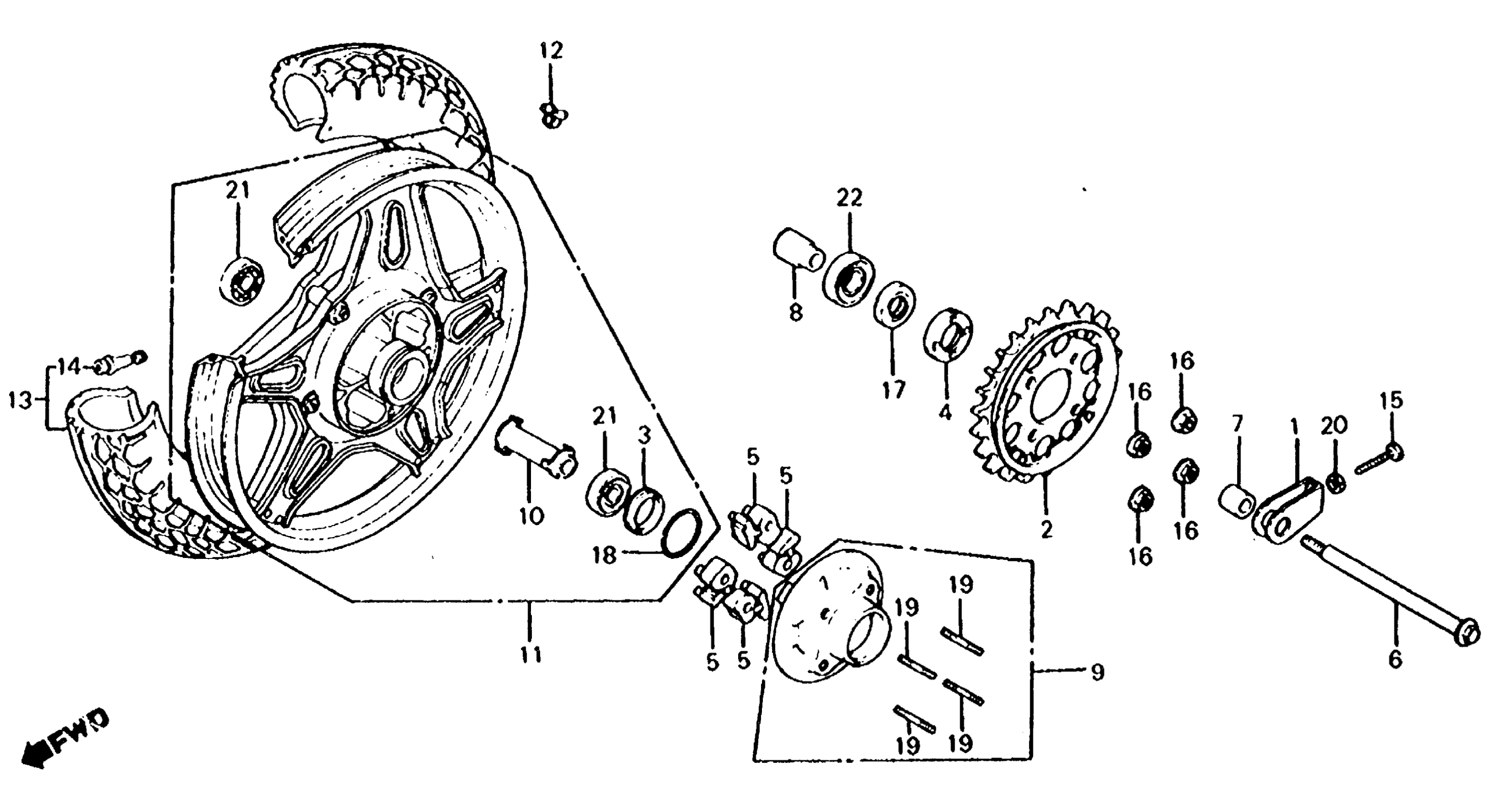

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 CB650C REAR WHEEL 80-81 Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-425-000

Unavailable

2

SPROCKET, FINAL DRIVEN (39T) (NOT AVAILABLE)

41200-460-000

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-300-020

Unavailable

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-422-000

Unavailable

5

DAMPER, RR. WHEEL

41241-300-050

$19.38

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-426-000

Unavailable

7

COLLAR, RR. WHEEL SIDE This part replaces 42311-392-000.

42311-425-870

Unavailable

7

COLLAR, RR. WHEEL SIDE

42311-425-870

Unavailable

8

SLEEVE, RR. AXLE (NOT AVAILABLE)

42605-300-000

Unavailable

9

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-426-770

Unavailable

10

COLLAR, RR. DISTANCE

42620-ME1-405

Unavailable

10

COLLAR, RR. DISTANCE This part replaces 42620-300-010.

42620-ME1-405

Unavailable

11

WHEEL, RR. (NOT AVAILABLE)

42650-460-670

Unavailable

12

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

12

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

13

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MA1-672.

42710-461-672

Unavailable

13

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-449-672.

42710-461-672

Unavailable

13

TIRE (130/90-16) | Use from Frame SN 2011788 This part replaces 42710-460-671.

42711-460-671

Unavailable

13

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE)

42710-461-672

Unavailable

14

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

14

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A01.

42753-SB8-661

$1.93

14

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

14

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

14

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

14

VALVE, RIM (SCHRADER) This part replaces 42753-671-962.

42753-SB8-661

$1.93

15

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

16

NUT, FLANGE (12MM)

90309-375-003

$8.61

17

OIL SEAL (34X55X9)

90753-283-000

$16.11

18

O-RING (68X2.6)

91258-300-013

$5.84

19

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

20

NUT, HEX. (8MM)

94002-08000-0S

$1.49

21

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

22

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable
