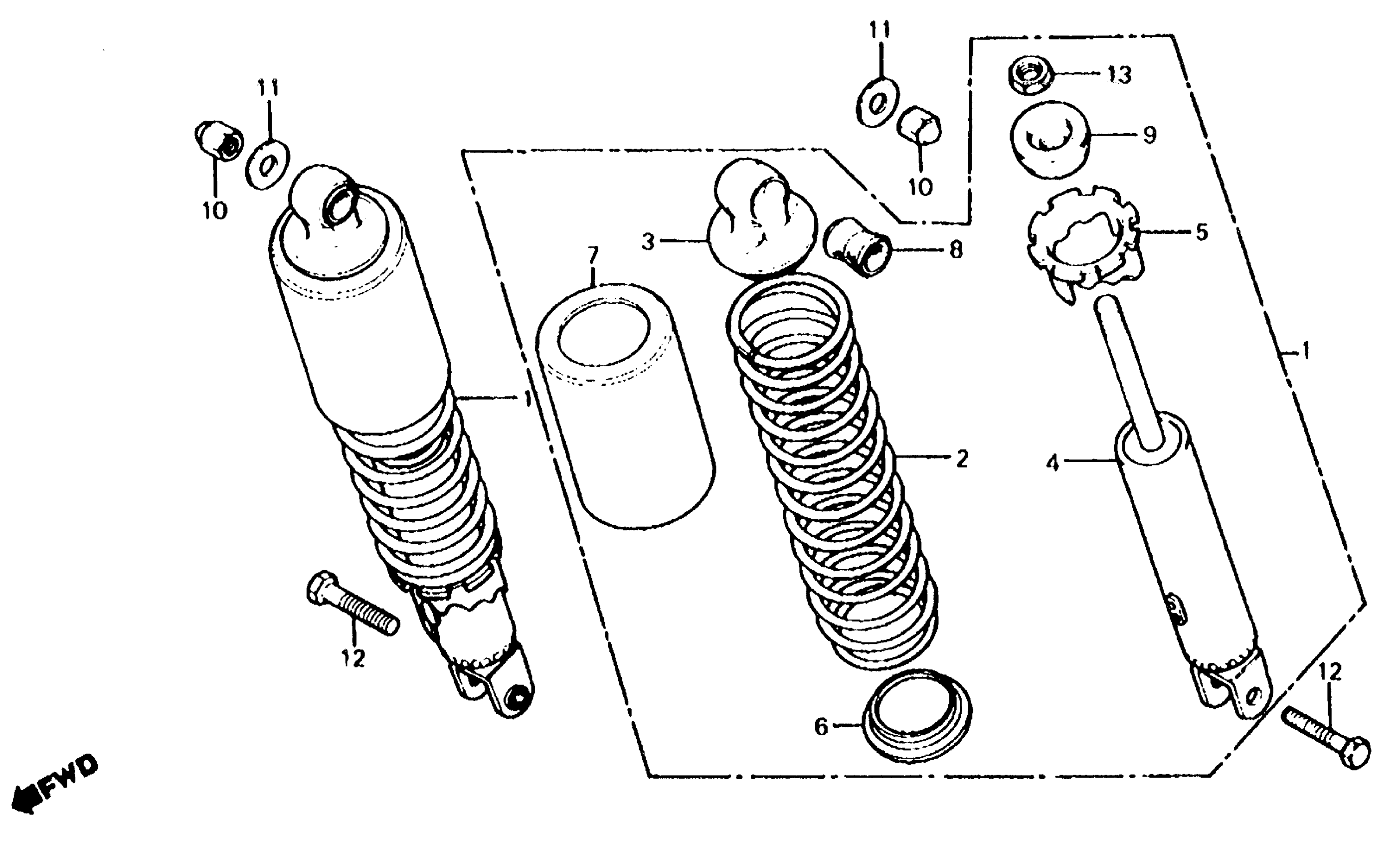

Honda CB650CA (80) 650 CUSTOM, JPN, VIN# RC05-2000008 TO RC05-2018218 CB650C REAR SHOCK ABSORBER 80-81 Diagram

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) This part replaces 52400-460-003.

52400-460-013

Unavailable

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-460-013

Unavailable

SPRING, RR. SHOCK ABSORBER This part replaces 52401-426-003.

52401-426-013

Unavailable

SPRING, RR. SHOCK ABSORBER

52401-426-013

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-425-003

Unavailable

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-426-003.

52410-426-013

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-426-013

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) (NOT AVAILABLE)

52460-393-003

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER

52517-404-003

$5.70

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X32) This part replaces 93200-10032-0B.

93201-10032-0B

$2.92

BOLT, HEX. (10X32)

93201-10032-0B

$2.92

NUT, HEX. (10MM)

94002-10000-0S

$4.06
