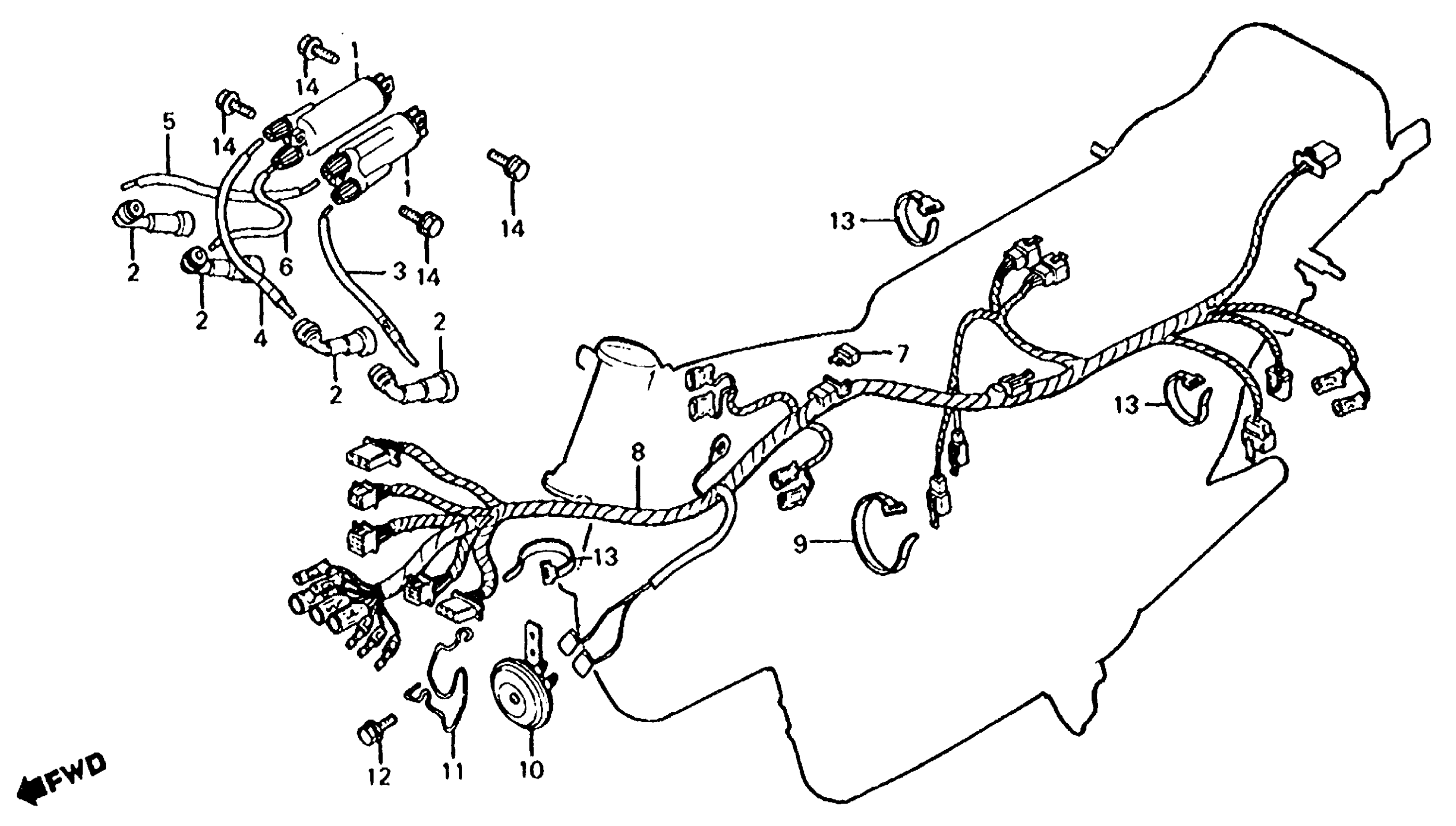

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

COIL ASSY., IGNITION

30500-422-013

$194.84

2

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-153.

30700-MC8-000

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

3

WIRE, IGNITION

30750-MA0-P00

Unavailable

3

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

3

WIRE, IGNITION This part replaces 30751-426-010.

30750-MA0-P00

Unavailable

4

WIRE, IGNITION

30750-MA0-P00

Unavailable

4

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

4

WIRE, IGNITION This part replaces 30752-426-010.

30750-MA0-P00

Unavailable

5

WIRE, COIL (4-2) This part replaces 30750-MA2-405.

30750-196-P00

Unavailable

5

WIRE, COIL (4-2)

30750-196-P00

Unavailable

5

WIRE, COIL (4-2) This part replaces 30755-426-010.

30750-196-P00

Unavailable

6

WIRE, IGNITION

30750-MA0-P00

Unavailable

6

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

6

WIRE, IGNITION This part replaces 30756-426-010.

30750-MA0-P00

Unavailable

7

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

7

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

8

WIRE HARNESS (NOT AVAILABLE)

32100-460-000

Unavailable

9

BAND, CABLE

32161-399-000

Unavailable

10

HORN (HIGH)

38110-MJ0-004

Unavailable

10

HORN (HIGH) This part replaces 38110-425-004.

38110-MJ0-004

Unavailable

10

HORN (HIGH) This part replaces 38110-425-601.

38110-MJ0-004

Unavailable

11

CLAMP, WIRE HARNESS (NOT AVAILABLE)

50462-460-000

Unavailable

12

BOLT-WASHER (6X16)

93403-06016-00

$1.55

12

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

93403-06016-00

$1.55

12

BOLT-WASHER (6X16) This part replaces 93493-06016-00.

93403-06016-00

$1.55

13

BAND B1, CABLE

32161-404-000

$2.23

13

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

14

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

14

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
