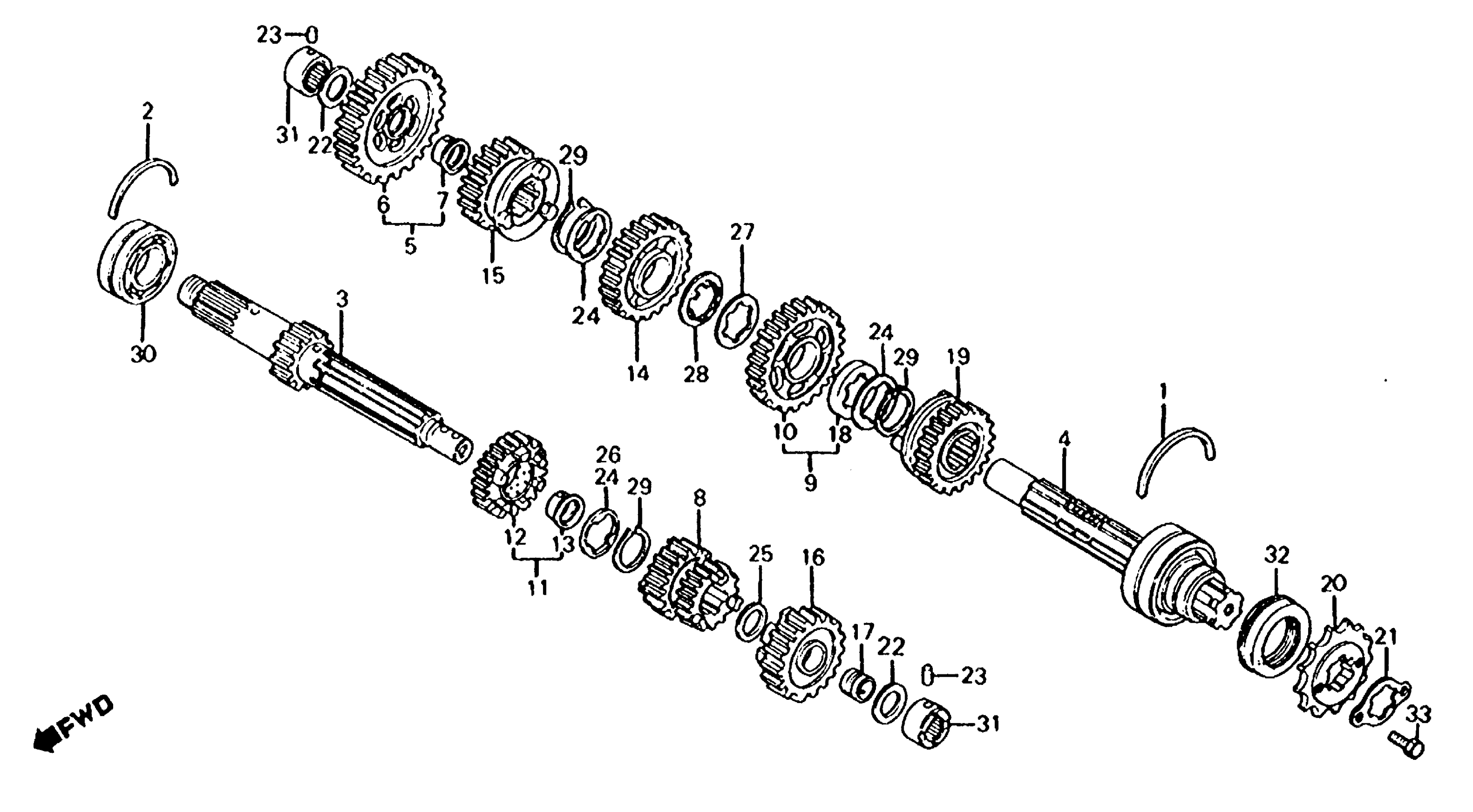

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 TRANSMISSION Diagram

#

Description
Price

1

RING, BEARING SETTING (57MM) (NOT AVAILABLE)

13491-283-000

Unavailable

2

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

2

SET-RING (520)

95015-25200

Unavailable

3

MAINSHAFT, TRANSMISSION (13T)

23210-460-680

Unavailable

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-426-000

Unavailable

6

GEAR, COUNTERSHAFT LOW (35T)

23421-460-680

Unavailable

7

BUSH (20MM) (NOT AVAILABLE)

23422-426-300

Unavailable

8

GEAR, MAINSHAFT SECOND & THIRD (18T/22T) (NOT AVAILABLE)

23431-460-680

Unavailable

10

GEAR, COUNTERSHAFT SECOND (32T)

23441-460-680

Unavailable

12

GEAR, MAINSHAFT FOURTH (24T) (NOT AVAILABLE)

23451-460-680

Unavailable

13

BUSH (25MM) (NOT AVAILABLE)

23452-426-300

Unavailable

14

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE) | Use up to Engine SN 2302151

23461-426-000

Unavailable

14

GEAR, COUNTERSHAFT THIRD (28T) | Use from Engine SN 2302152

23461-460-680

Unavailable

15

GEAR, COUNTERSHAFT FOURTH (25T) | Use up to Engine SN 2302151

23400-460-680

Unavailable

15

GEAR, COUNTERSHAFT FOURTH (25T) | Use from Engine SN 2302152

23471-460-681

Unavailable

16

GEAR, MAINSHAFT TOP (26T) (NOT AVAILABLE)

23481-426-000

Unavailable

17

BUSH (20MM) (NOT AVAILABLE)

23482-426-000

Unavailable

18

BUSH, SPLINE (28MM) | Use up to Engine SN 2302151

23485-369-000

$29.59

18

BUSH, SPLINE (28MM) | Use from Engine SN 2302152

23485-369-000

$29.59

19

GEAR, COUNTERSHAFT TOP (23T) (NOT AVAILABLE) | Use up to Engine SN 2330289

23491-426-000

Unavailable

19

GEAR, COUNTERSHAFT TOP (23T) | Use from Engine SN 2330290

23491-426-010

Unavailable

20

SPROCKET, DRIVE (17T) (NOT AVAILABLE)

23801-460-680

Unavailable

21

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

22

PLATE A, THRUST (1.45MM) (NOT AVAILABLE)

23901-567-319

Unavailable

23

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

24

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

25

WASHER, THRUST (20MM)

90454-107-000

$1.80

26

WASHER B, THRUST (25MM) (NOT AVAILABLE)

90456-426-000

Unavailable

27

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

28

WASHER, LOCK (25MM)

90462-323-000

$3.77

29

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

29

CIRCLIP (OUTER) (25MM) This part replaces 90602-259-000.

90602-259-010

$6.16

29

CIRCLIP (OUTER) (25MM) This part replaces 90602-426-000.

90602-259-010

$6.16

30

BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)

91002-286-008

Unavailable

31

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91022-426-008.

91023-MKP-D01

$34.39

31

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

32

OIL SEAL (36X57X13)

91205-426-013

Unavailable

33

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

33

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
