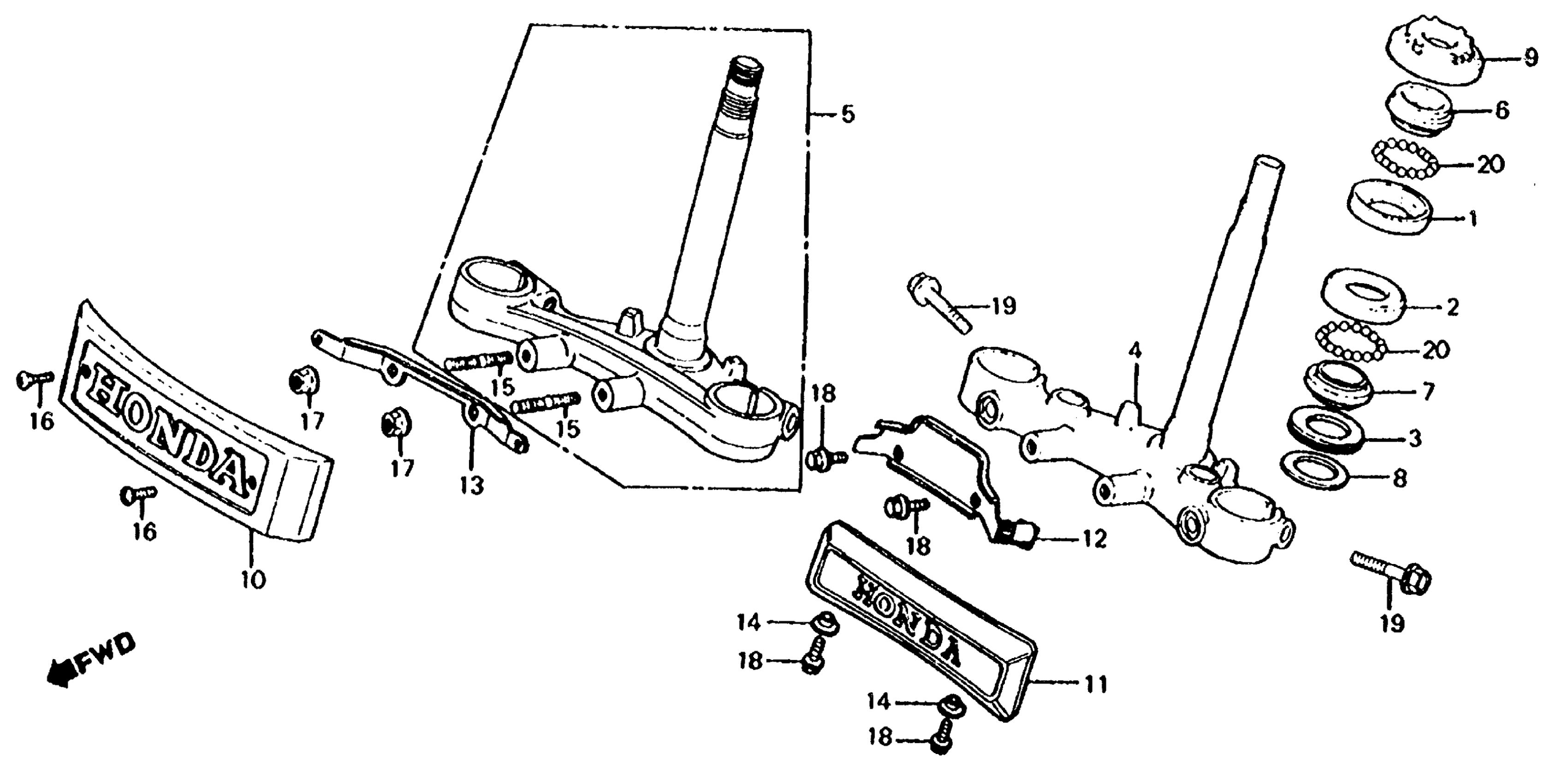

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 STEERING STEM Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

3

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-426-010ZA

Unavailable

6

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

6

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

7

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

7

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

8

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

9

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

11

COVER, FR. (NOT AVAILABLE)

61401-460-000

Unavailable

12

STAY, FR. COVER (NOT AVAILABLE)

61405-460-000

Unavailable

14

WASHER (6X20)

90512-300-000

$3.08

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

19

BOLT, FLANGE (10X35) This part replaces 95700-10035-07.

95701-10035-07

$2.07

19

BOLT, FLANGE (10X35)

95701-10035-07

$2.07

20

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
