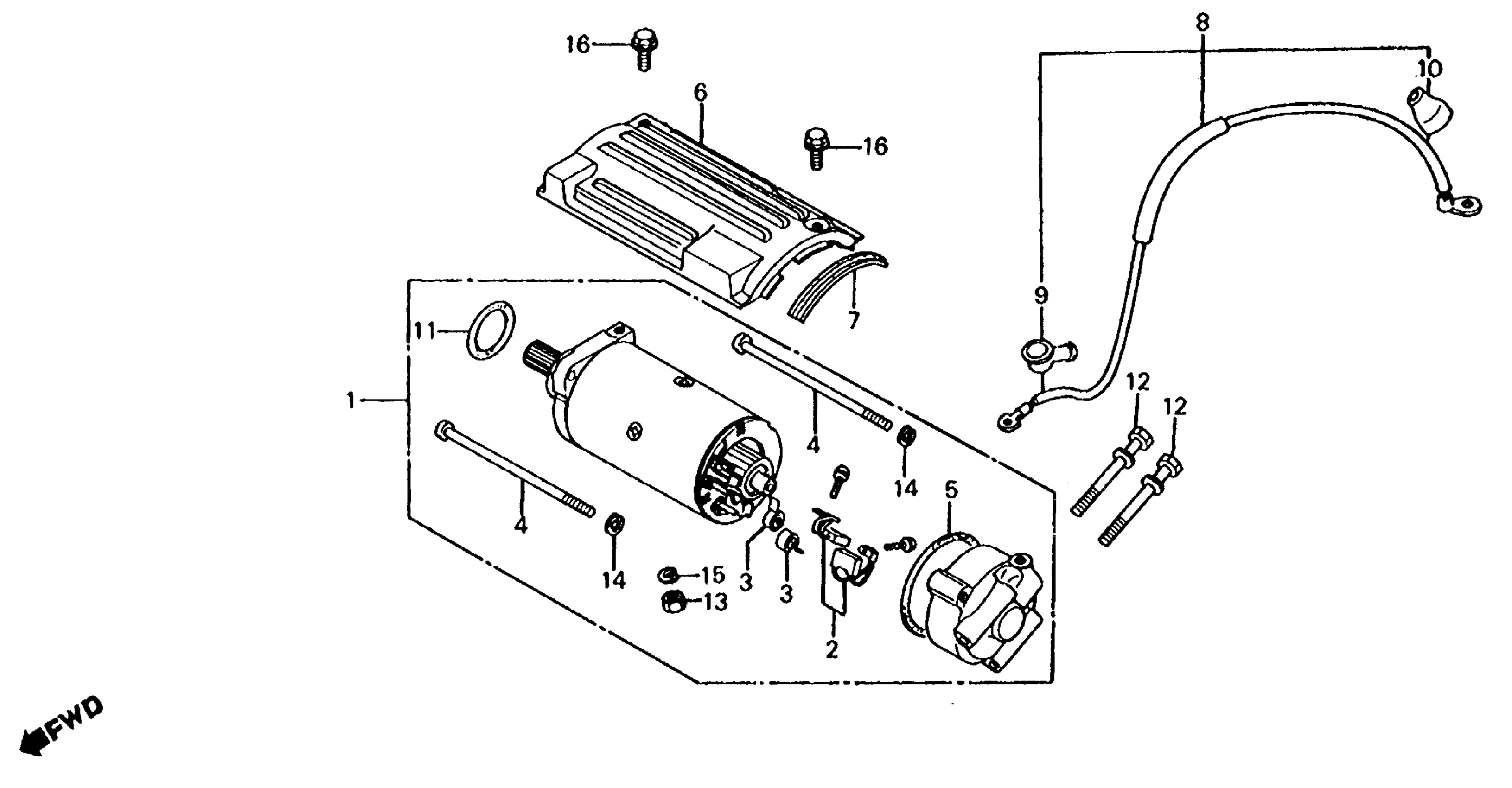

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. This part replaces 31200-426-008.

31200-426-405

Unavailable

1

STARTER MOTOR ASSY. This part replaces 31200-426-018.

31200-426-405

Unavailable

2

BRUSH SET, CARBON

31201-292-158

$26.15

3

SPRING, CARBON BRUSH

31204-292-158

$3.83

4

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

5

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

5

O-RING (60X1.4)

31206-402-008

Unavailable

6

COVER, STARTER MOTOR (NOT AVAILABLE)

31281-460-000

Unavailable

7

RUBBER, L. COVER SETTING (NOT AVAILABLE)

31282-426-000

Unavailable

8

CABLE, STARTER MOTOR

32402-460-000

Unavailable

9

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

9

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

10

COVER B, MAGNETIC SWITCH

32416-460-000

Unavailable

11

O-RING (24.4X3.1) | Use up to Engine SN 2302580 This part replaces 91309-300-000.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1)

91312-MG7-003

$6.34

12

BOLT-WASHER (6X55) (NOT AVAILABLE)

93491-06055-00

Unavailable

13

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

13

NUT, HEX. (6MM)

94002-06000-0S

$1.49

14

WASHER, SPRING (5MM)

94111-05000

$1.49

15

WASHER, SPRING (6MM)

94111-06000

$1.49

16

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

16

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
