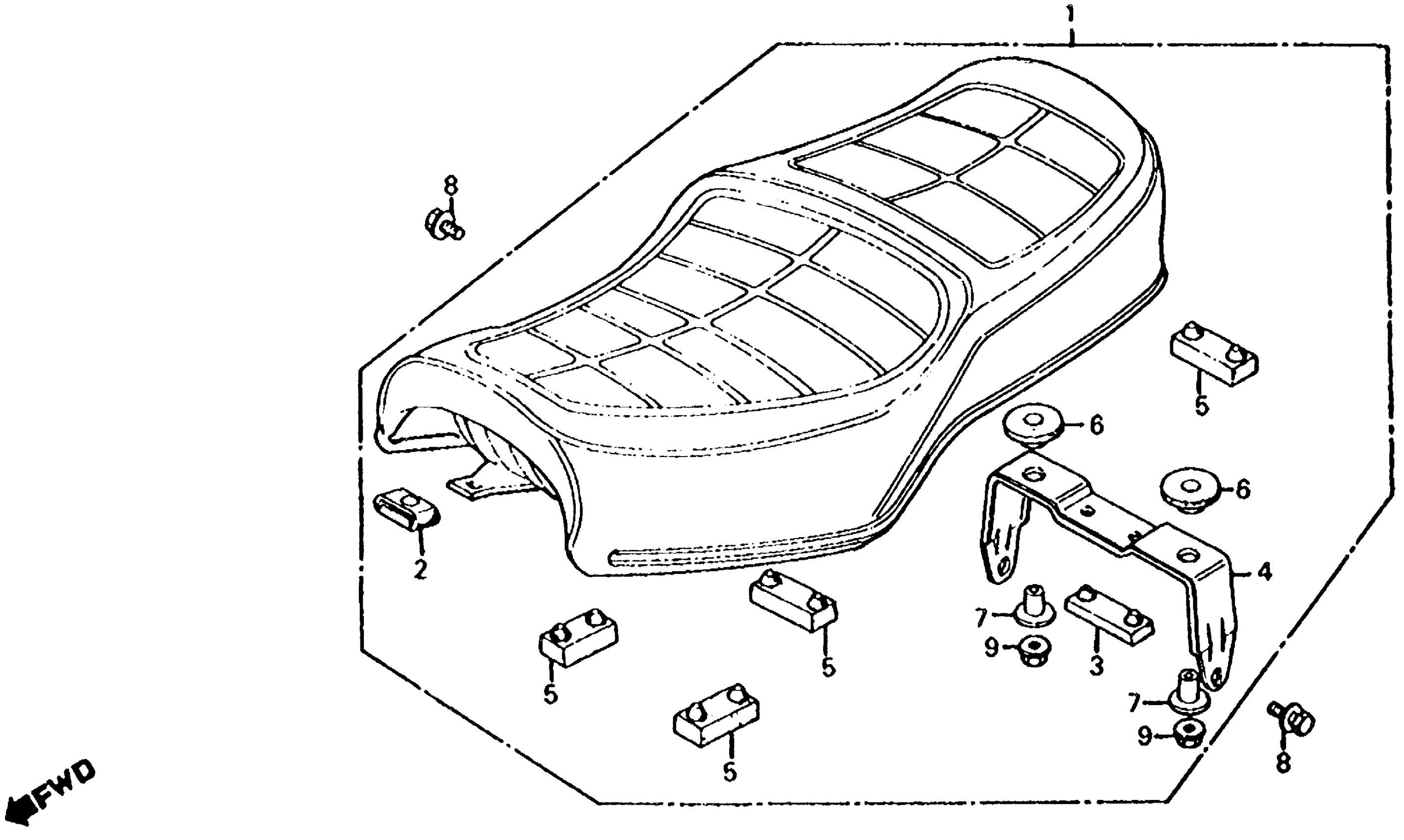

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 SEAT Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE)

77200-460-680

Unavailable

2

RUBBER, SEAT SETTING (NOT AVAILABLE)

77203-460-000

Unavailable

3

RUBBER, SEAT SETTING

77204-312-000

$4.83

4

PLATE, SEAT SETTING

77204-460-000

Unavailable

5

RUBBER B, SEAT SETTING

77205-286-000

$5.04

6

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77206-460-000

Unavailable

7

COLLAR (6X14.8)

90501-438-000

$4.83

8

BOLT-WASHER (8X16)

93401-08016-07

$1.90

8

BOLT-WASHER (8X16) This part replaces 93491-08016-07.

93401-08016-07

$1.90

9

NUT, FLANGE (6MM)

94050-06080

$0.60
