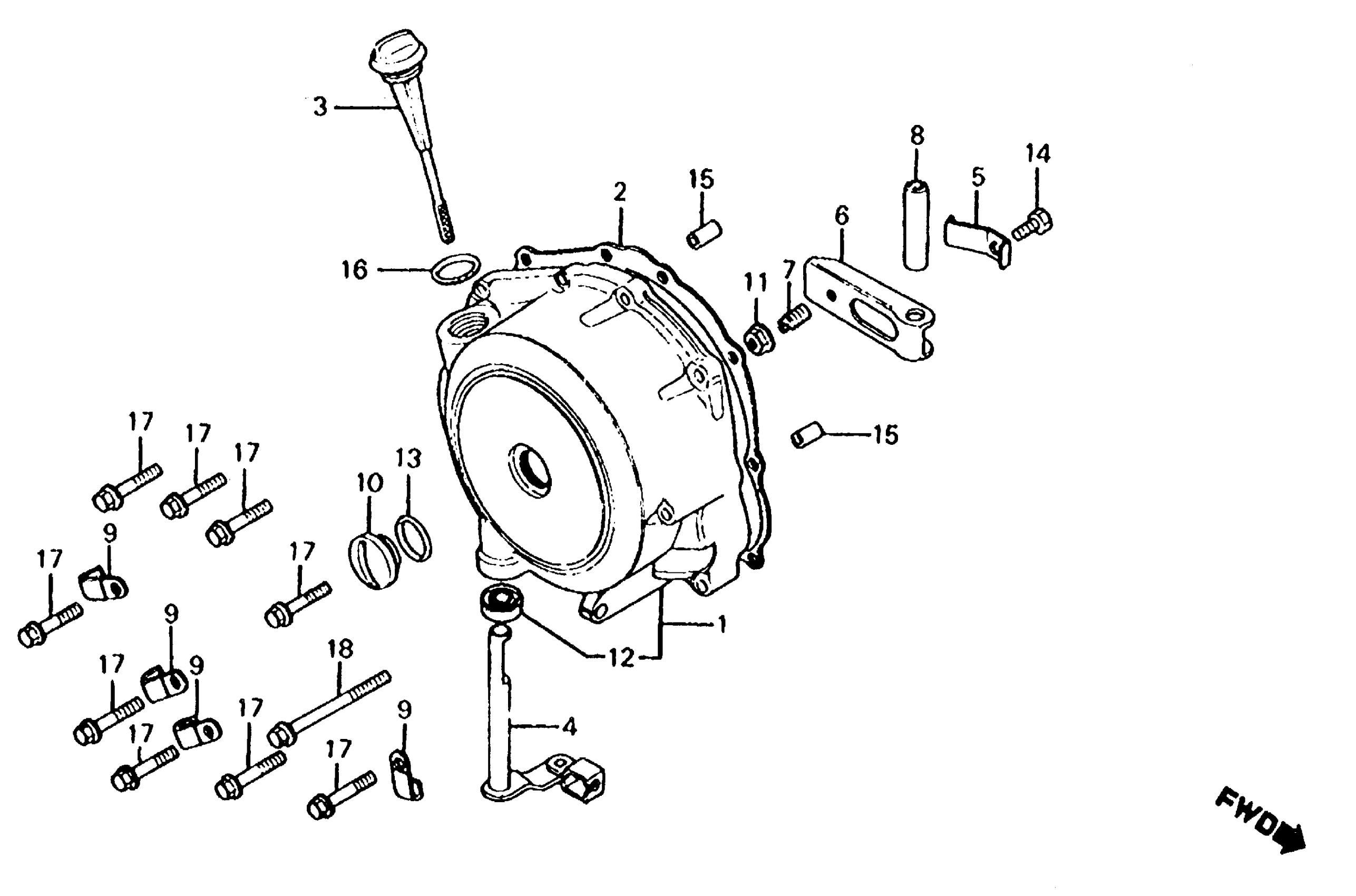

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE | Use up to Engine SN 2301978 This part replaces 11330-426-000.

11330-426-315

Unavailable

1

COVER, R. CRANKCASE | Use up to Engine SN 2301978

11330-426-315

Unavailable

1

COVER, R. CRANKCASE | Use from Engine SN 2301979 to 2302580 This part replaces 11330-426-010.

11330-426-020

Unavailable

1

COVER, R. CRANKCASE | Use from Engine SN 2301979 to 2302580

11330-426-020

Unavailable

1

COVER, R. CRANKCASE | Use from Engine SN 2301981

11330-426-020

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-426-000.

11394-426-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-426-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-426-000

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22710-426-000

Unavailable

5

SPRING, LEVER (NOT AVAILABLE)

22815-426-000

Unavailable

6

LEVER, CLUTCH ADJ.

22831-426-000

Unavailable

7

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-425-000

Unavailable

8

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

9

CLAMP, CABLE

32111-426-000

Unavailable

10

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

90042-422-000

Unavailable

11

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

12

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

12

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

12

OIL SEAL (12X22X5)

91201-965-000

$4.06

12

OIL SEAL (12X22X5) | Use from Engine SN 2302581

91201-965-000

$4.06

12

OIL SEAL (12X22X5) | Use from Engine SN 2302581 This part replaces 91201-426-003.

91201-965-000

$4.06

12

OIL SEAL (12X22X5) | Use from Engine SN 2302581 This part replaces 91203-MC8-003.

91201-965-000

$4.06

13

O-RING (23.5X2.6) | Use up to Engine SN 2302580 This part replaces 91305-714-000.

91305-425-003

$3.69

13

O-RING (23.5X2.6)

91305-425-003

$3.69

13

O-RING (23.5X2.6) | Use up to Engine SN 2302580

91305-425-003

$3.69

14

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

14

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

PIN A, DOWEL (8X14)

94301-08140

$2.25

16

O-RING (23X2.8) | Use up to Engine SN 2302580

94608-50000

$1.49

16

O-RING (23X2.8) (NOT AVAILABLE) | Use from Engine SN 2302581

91302-426-003

Unavailable

17

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

17

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

18

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

18

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

18

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

18

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
