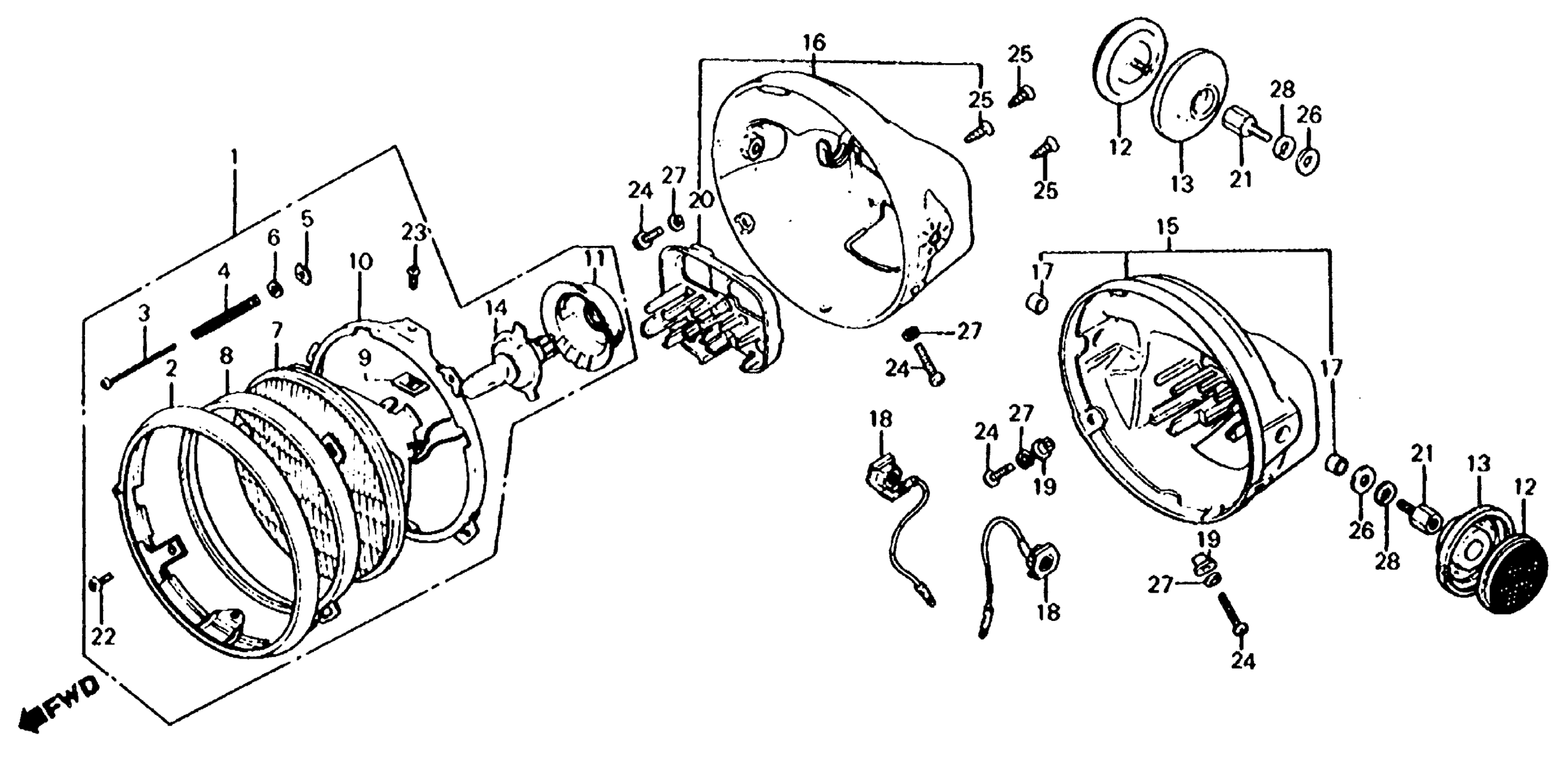

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 HEADLIGHT 81-82 Diagram

HEADLIGHT ASSY. (12V 60/55W) (NOT AVAILABLE)

33100-422-671

Unavailable

RIM, HEADLIGHT

33101-460-671

Unavailable

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

HEADLIGHT UNIT

33120-431-671

Unavailable

RING, RETAINING

33121-405-671

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

RING, SETTING

33153-422-003

Unavailable

COVER, RUBBER

33180-422-003

Unavailable

REFLECTOR, FR. REFLEX This part replaces 33741-413-003.

33742-HB9-641

$13.14

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

BASE, FR. REFLECTOR

33743-425-600

Unavailable

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-371-601.

34901-MC7-602

$37.18

CASE, HEADLIGHT

61301-425-000

Unavailable

COLLAR, HEADLIGHT CASE (NOT AVAILABLE)

61302-425-000

Unavailable

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-425-000

Unavailable

SCREW, PAN (3X8)

93500-03008-0H

$1.49

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

SCREW, PAN (5X8)

93500-05008-0H

$1.49

SCREW, PAN (5X16)

93500-05016-0B

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
