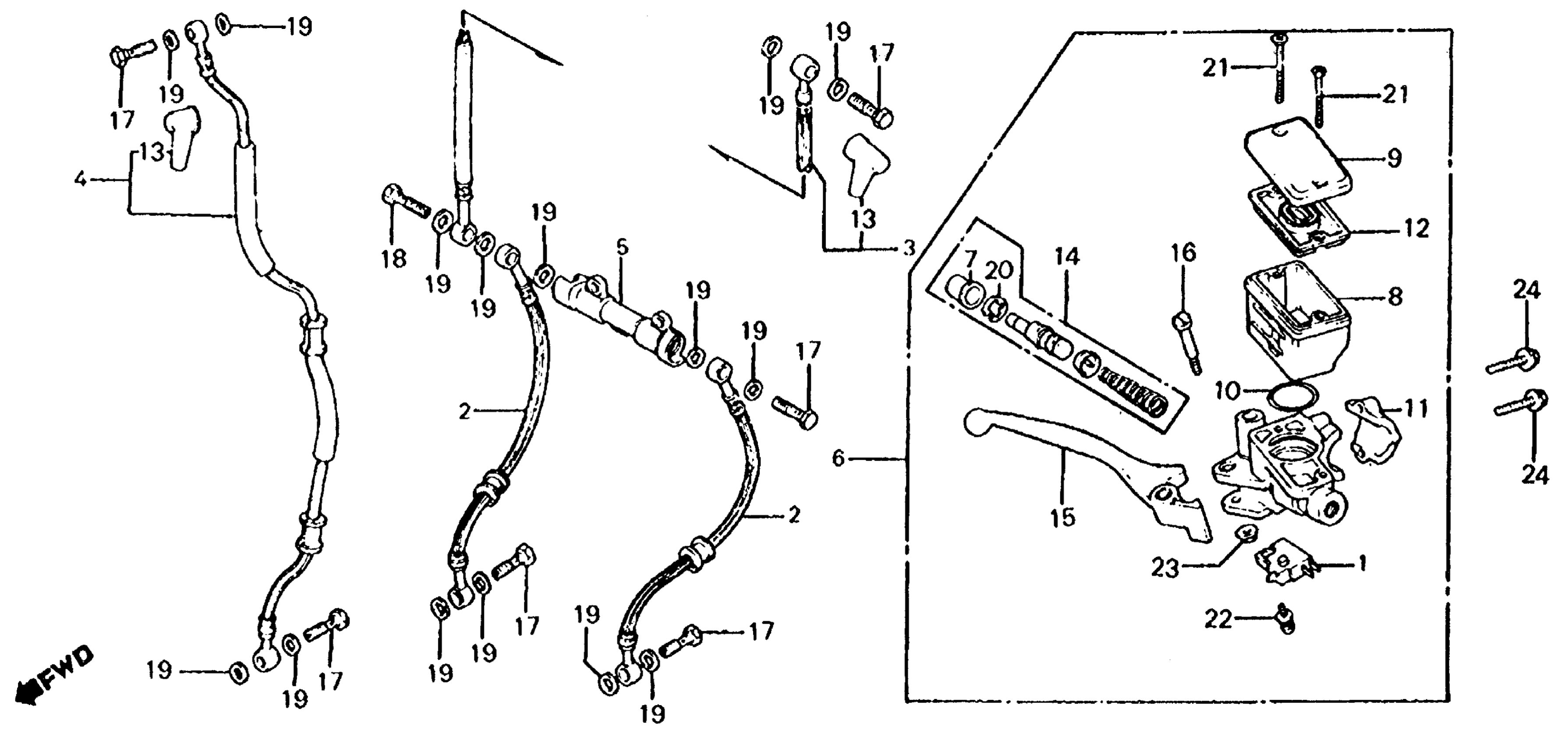

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 FRONT BRAKE MASTER CYLINDER 81-82 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

4

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-460-681

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NOT AVAILABLE)

45500-MA4-672

Unavailable

7

BOOT

45504-410-003

$12.16

8

CUP, OIL

45511-MA5-671

$44.69

9

CAP, OIL CUP

45513-MA5-671

Unavailable

10

O-RING (26.7X2.4)

45516-166-006

$6.81

11

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

12

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

14

MASTER CYLINDER SET

45530-MA4-671

$47.76

15

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

17

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

17

BOLT, OIL

90145-300-010

$9.68

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
