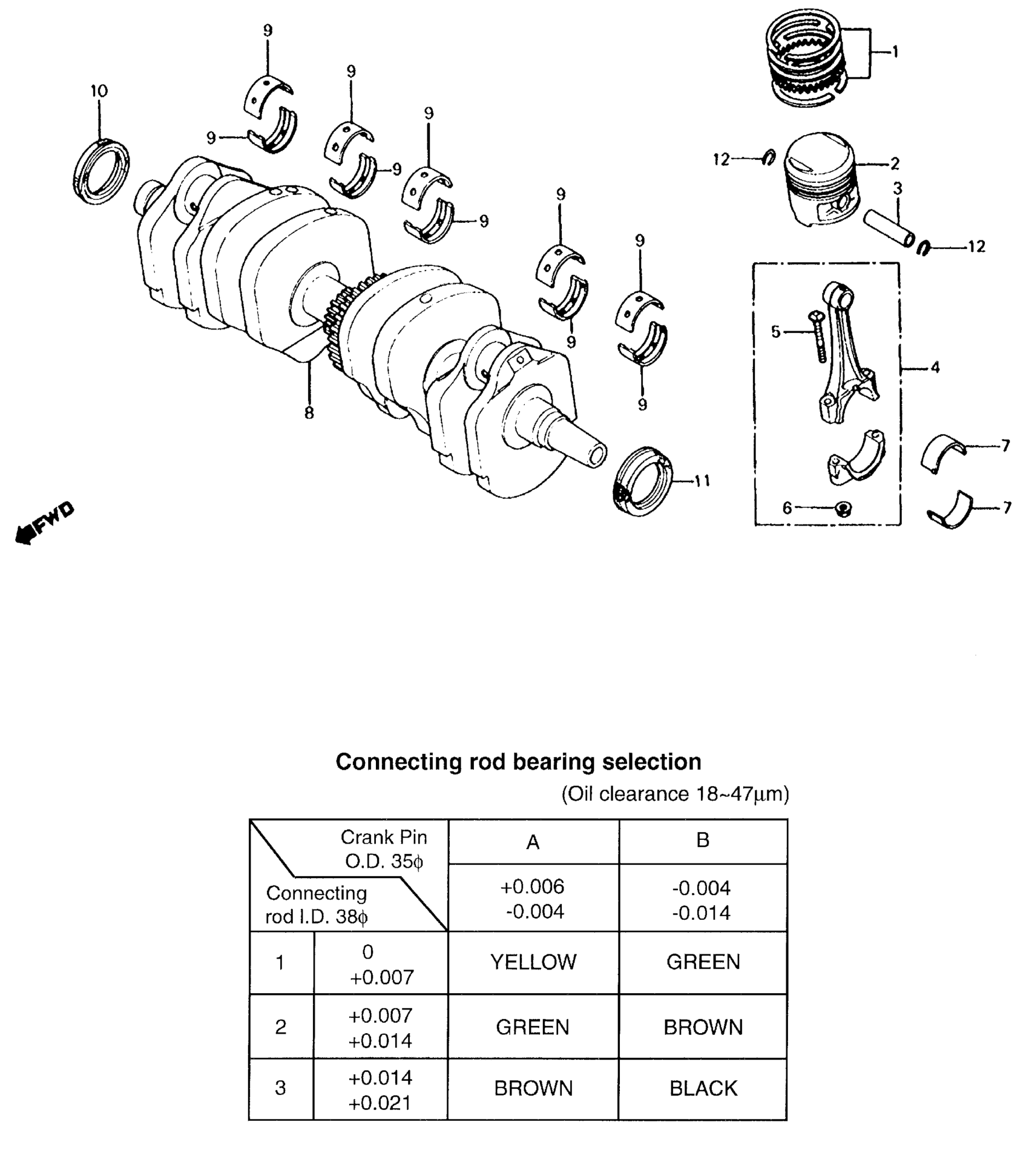

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-426-004

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

13021-426-004

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13031-426-004

Unavailable

2

PISTON (STD)

13101-426-003

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-426-003

Unavailable

2

PISTON (OS 0.50) | (Optional).

13103-426-003

Unavailable

3

PIN, PISTON

13111-286-000

$26.03

3

PIN, PISTON

13111-440-000

$24.55

4

ROD D, CONNECTING This part replaces 13202-426-000.

13204-426-405

Unavailable

4

ROD D, CONNECTING This part replaces 13203-426-000.

13204-426-405

Unavailable

4

ROD D, CONNECTING This part replaces 13204-426-000.

13204-426-405

Unavailable

4

ROD D, CONNECTING

13204-426-405

Unavailable

4

ROD D, CONNECTING This part replaces 13205-426-000.

13204-426-405

Unavailable

4

ROD D, CONNECTING This part replaces 13206-426-000.

13204-426-405

Unavailable

5

BOLT, CONNECTING ROD

13213-KV0-000

$5.90

5

BOLT, CONNECTING ROD This part replaces 13213-410-003.

13213-KV0-000

$5.90

6

NUT, CONNECTING ROD

13214-410-003

$3.78

7

BEARING A, CONNECTING ROD (BLACK)

13215-426-003

Unavailable

7

BEARING B, CONNECTING ROD (BROWN)

13216-426-003

Unavailable

7

BEARING C, CONNECTING ROD (GREEN)

13217-426-003

Unavailable

7

BEARING D, CONNECTING ROD (YELLOW)

13218-426-003

Unavailable

8

CRANKSHAFT (NOT AVAILABLE)

13300-426-000

Unavailable

9

BEARING A, CRANKSHAFT (BLACK) (NOT AVAILABLE)

13315-426-003

Unavailable

9

BEARING B, CRANKSHAFT (BROWN)

13316-426-003

Unavailable

9

BEARING C, CRANKSHAFT (GREEN) (NOT AVAILABLE)

13317-426-003

Unavailable

9

BEARING D, CRANKSHAFT (YELLOW) (NOT AVAILABLE)

13318-426-003

Unavailable

10

OIL SEAL (30X42X8)

91201-300-003

$12.99

11

OIL SEAL (30X45X8)

91201-323-005

$14.97

12

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
