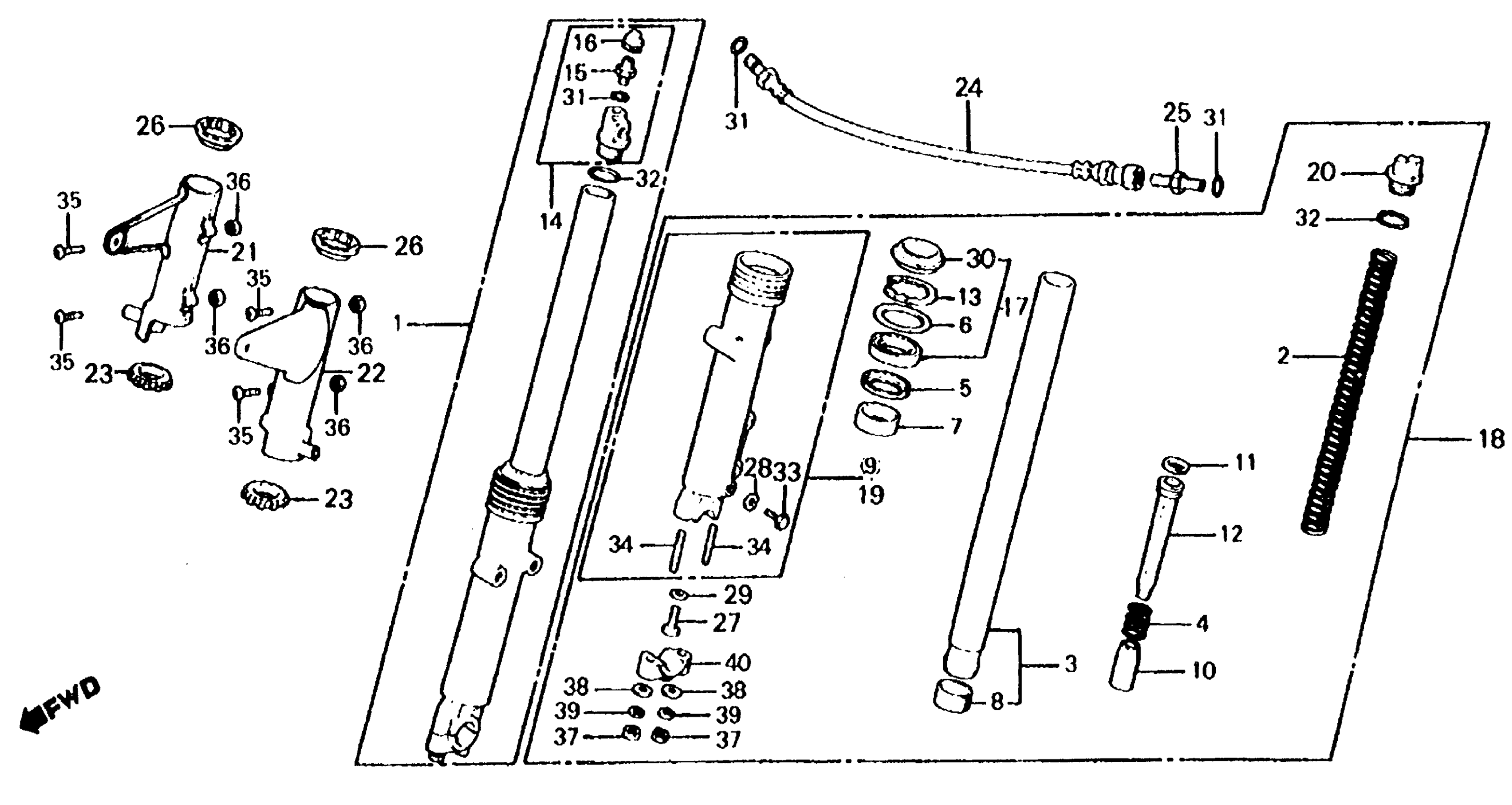

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 CB650 FRONT FORK 81-82 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-460-741

Unavailable

2

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-460-741

Unavailable

3

PIPE, FR. FORK (SHOWA)

51410-460-741

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.47

5

RING, BACK-UP

51412-422-003

$6.96

5

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$6.96

5

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$6.96

6

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

7

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$17.62

8

BUSH, SLIDER (SHOWA)

51415-469-003

Unavailable

9

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-MA4-671

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

11

RING, PISTON

51437-400-771

$5.86

12

PIPE, SEAT (SHOWA) (NOT AVAILABLE)

51440-460-741

Unavailable

13

CIRCLIP (INNER) (51.5MM)

51447-469-003

$3.89

14

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MA5-671

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$30.27

16

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

17

SEAL SET, FR. FORK

51490-KBH-305

$24.41

17

SEAL SET, FR. FORK This part replaces 51490-MA6-305.

51490-KBH-305

$24.41

17

SEAL SET, FR. FORK This part replaces 51490-MA6-315.

51490-KBH-305

$24.41

17

SEAL SET, FR. FORK This part replaces 51490-434-305.

51490-KBH-305

$24.41

18

FORK ASSY., L. FR. (SHOWA)

51500-460-741

Unavailable

19

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-460-741

Unavailable

20

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-MA5-671

Unavailable

21

COVER, R. FR. FORK (NOT AVAILABLE)

51602-460-680

Unavailable

22

COVER, L. FR. FORK (NOT AVAILABLE)

51606-460-680

Unavailable

23

RUBBER B, FR. FORK COVER

51622-323-000

Unavailable

24

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-461-771

Unavailable

25

CONNECTOR

53139-463-000

Unavailable

26

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

27

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

27

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

29

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

30

DUST SEAL (35MM)

91254-434-003

$12.53

31

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

31

O-RING (5.8X1.9)

91305-323-000

$2.80

31

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

32

O-RING (25.7X2.8)

91356-428-003

$3.35

33

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

34

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.45

34

BOLT, STUD (8X50)

92900-08028-3B

$1.45

35

SCREW, PAN (4X20)

93500-04020-0B

Unavailable

36

NUT, HEX. (4MM)

94001-04020-0S

Unavailable

37

NUT, HEX. (8MM)

94030-08000

$0.97

38

WASHER, PLAIN (8MM)

94101-08000

$0.75

39

WASHER, SPRING (8MM)

94111-08000

$0.90

40

HOLDER 1C, FR. FORK AXLE

95014-41000

$12.93
