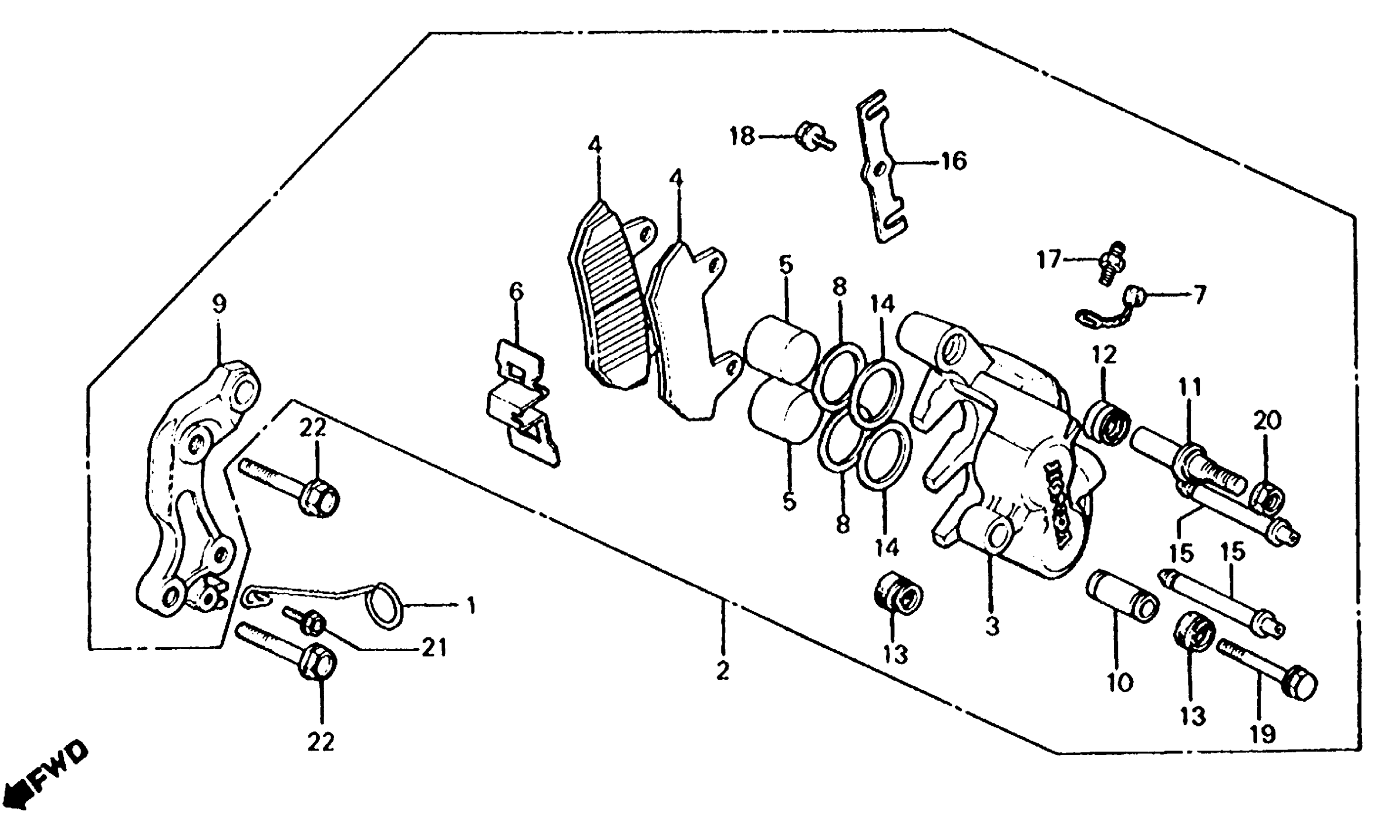

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 CB650 FRONT BRAKE CALIPER 2 82 Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE) | Use from Frame SN CM301878

44832-MA3-000

Unavailable

2

CALIPER ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN CM301878 This part replaces 45100-MA4-771.

45100-MA4-772

Unavailable

2

CALIPER ASSY., L. FR. (NOT AVAILABLE) | Use from Frame SN CM301878

45100-MA4-772

Unavailable

3

CALIPER, L. (NOT AVAILABLE) | Use from Frame SN CM301878

45101-MA5-771

Unavailable

4

PAD (TOKIKO) | Use from Frame SN CM301878 This part replaces 45105-MA5-771.

45105-MC9-305

Unavailable

4

PAD (TOKIKO) | Use from Frame SN CM301878 This part replaces 45105-MA5-772.

45105-MC9-305

Unavailable

4

PAD (TOKIKO) | Use from Frame SN CM301878

45105-MC9-305

Unavailable

5

PISTON | Use from Frame SN CM301878

45107-MA5-771

Unavailable

6

SPRING, PAD (NOT AVAILABLE) | Use from Frame SN CM301878

45108-MA5-771

Unavailable

7

CAP, BLEEDER VALVE | Use from Frame SN CM301878

45108-425-003

Unavailable

8

DUST SEAL | Use from Frame SN CM301878 This part replaces 45109-MA5-771.

45109-166-006

$6.41

8

DUST SEAL | Use from Frame SN CM301878

45109-166-006

$6.41

9

BRACKET, L. FR. | Use from Frame SN CM301878

45110-MA4-771

Unavailable

10

SLEEVE (NOT AVAILABLE) | Use from Frame SN CM301878

45111-MA5-771

Unavailable

11

PIN, BOLT | Use from Frame SN CM301878

45131-MA5-771

Unavailable

12

BOOT, PIN | Use from Frame SN CM301878

45133-MA5-771

Unavailable

13

BOOT, BOLT | Use from Frame SN CM301878

45134-MA5-771

Unavailable

14

SEAL, PISTON | Use from Frame SN CM301878

45209-183-003

Unavailable

15

PIN, PAD RETAINING (NOT AVAILABLE) | Use from Frame SN CM301878

45215-MA5-771

Unavailable

16

PLATE (NOT AVAILABLE) | Use from Frame SN CM301878

45217-MA5-771

Unavailable

17

VALVE, BLEEDER | Use from Frame SN CM301878

45224-413-003

Unavailable

18

BOLT, FLANGE (6X10) (NOT AVAILABLE) | Use from Frame SN CM301878

90101-MA5-771

Unavailable

19

BOLT, FLANGE (8X48) (NOT AVAILABLE) | Use from Frame SN CM301878

90180-MA5-771

Unavailable

20

NUT, FLANGE (10MM) | Use from Frame SN CM301878

90303-428-900

$3.35

21

BOLT, FLANGE (6X12) | Use from Frame SN CM301878 This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12) | Use from Frame SN CM301878

95701-06012-00

$1.62

22

BOLT, FLANGE (10X32) | Use from Frame SN CM301878 This part replaces 95800-10032-00.

95801-10032-00

$2.31

22

BOLT, FLANGE (10X32) | Use from Frame SN CM301878

95801-10032-00

$2.31
