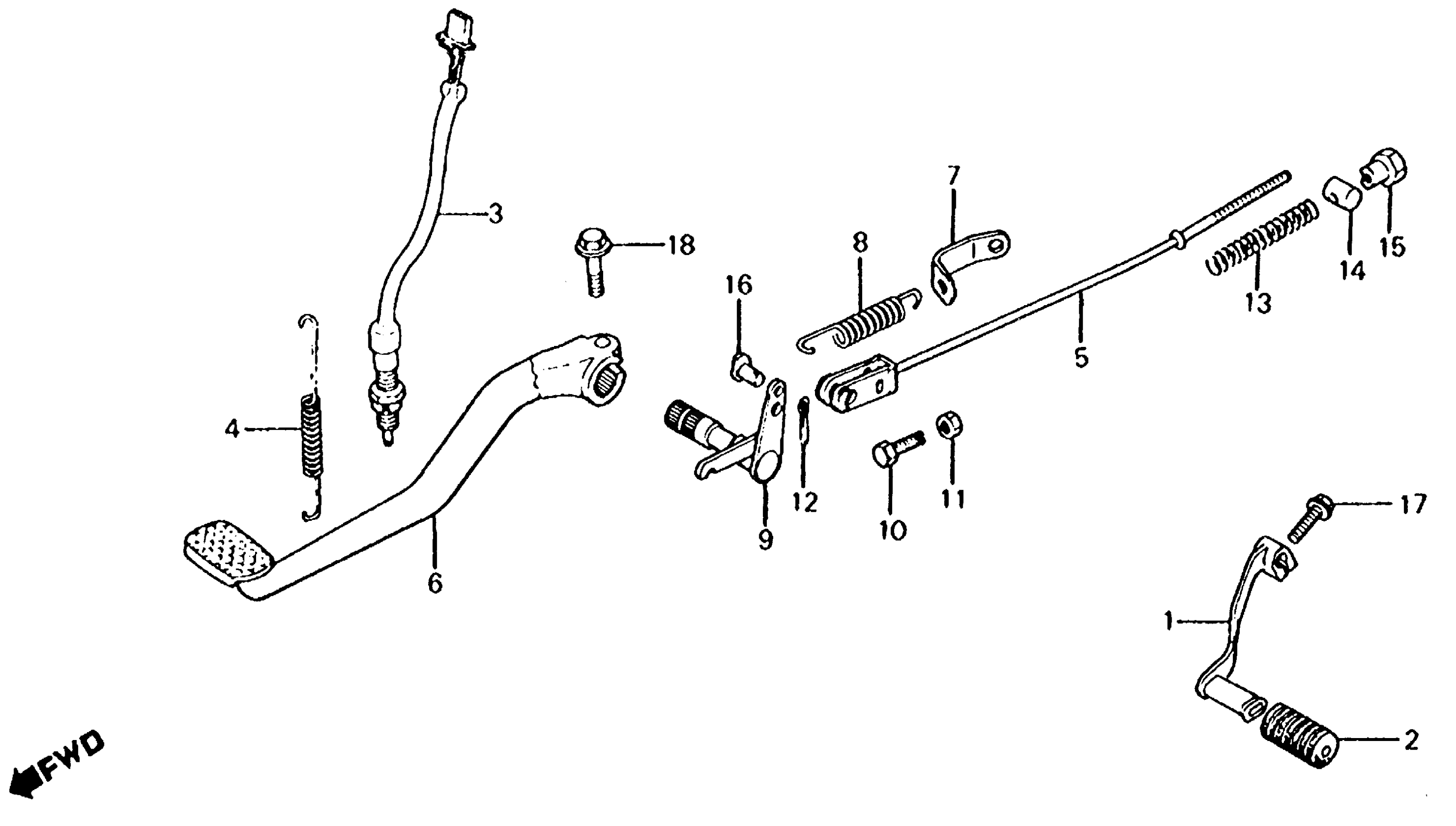

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 BRAKE PEDAL + CHANGE PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-460-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP

35350-MG7-405

$20.36

SWITCH ASSY., RR. STOP This part replaces 35350-425-003.

35350-MG7-405

$20.36

SPRING, STOP SWITCH

35357-KT8-000

Unavailable

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-426-000.

35357-KT8-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-460-010

Unavailable

PEDAL, RR. BRAKE

46500-460-000

Unavailable

PLATE, BRAKE SPRING STOPPER

46513-460-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-426-010

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46515-460-000

Unavailable

BOLT (6X32) (NOT AVAILABLE)

90186-426-000

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
