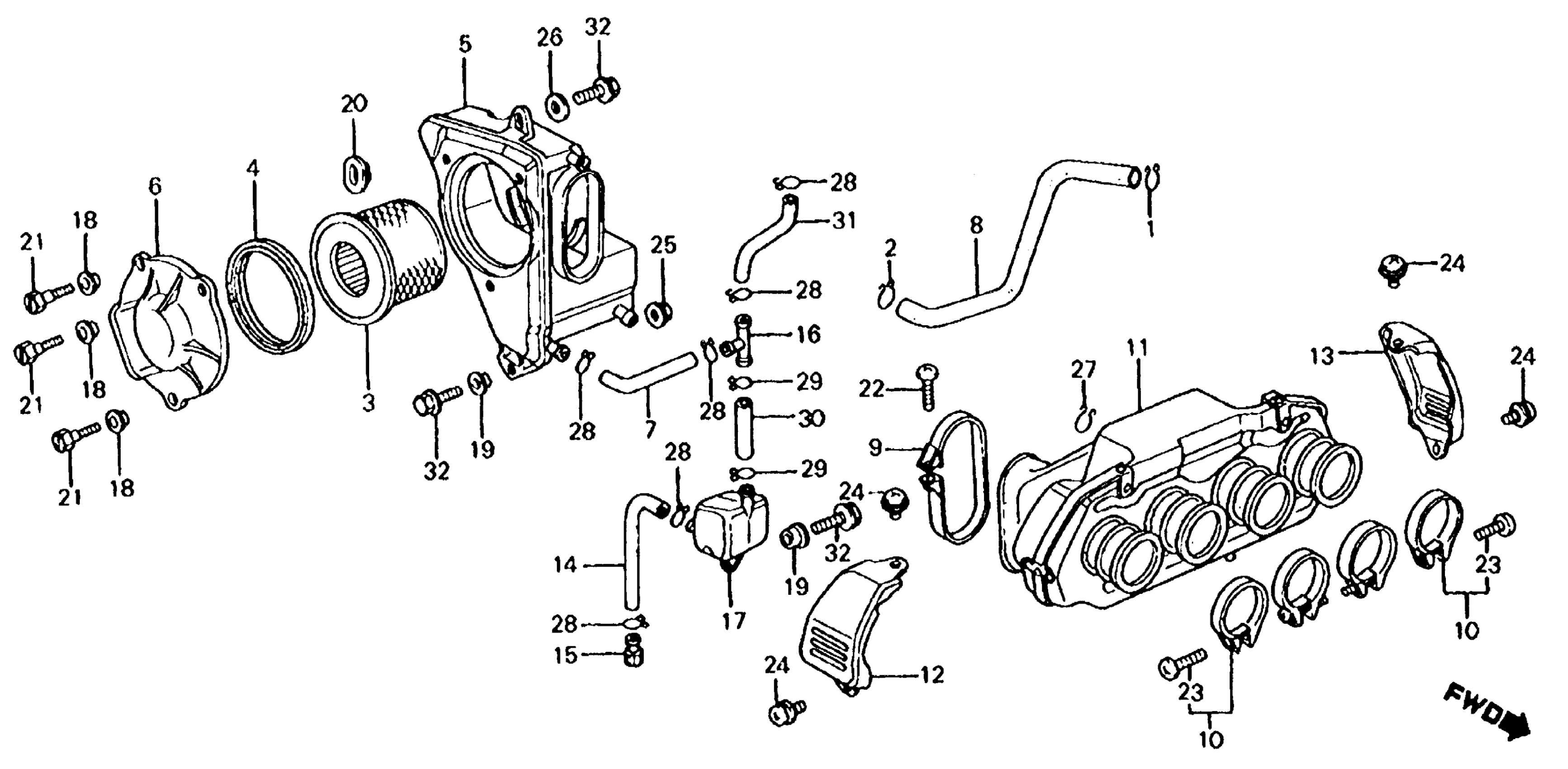

Honda CB650A (82) MOTORCYCLE, JPN, VIN# JH2RC050-CM300003 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN

15707-634-000

$5.13

2

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

3

ELEMENT, AIR CLEANER

17211-460-000

Unavailable

4

GASKET, AIR CLEANER (NOT AVAILABLE)

17217-426-300

Unavailable

5

HOUSING, AIR CLEANER This part replaces 17218-460-730.

17218-460-731

Unavailable

5

HOUSING, AIR CLEANER

17218-460-731

Unavailable

6

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17220-460-000

Unavailable

7

TUBE, AIR CLEANER DRAIN (NOT AVAILABLE)

17221-460-000

Unavailable

8

TUBE, AIR VENT

17231-460-730

Unavailable

9

BAND, AIR CLEANER HOUSING SEAL (NOT AVAILABLE)

17256-460-000

Unavailable

10

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

11

CHAMBER, AIR CLEANER (NOT AVAILABLE)

17310-460-730

Unavailable

12

COVER, R. AIR CLEANER CHAMBER (NOT AVAILABLE)

17312-460-730

Unavailable

13

COVER, L. AIR CLEANER CHAMBER (NOT AVAILABLE)

17313-460-000

$19.75

14

TUBE, DRAIN (NOT AVAILABLE)

17335-460-670

Unavailable

15

PLUG, BREATHER TUBE

17370-419-700

$3.74

16

JOINT, BREATHER THREE-WAY

17373-399-760

Unavailable

17

TANK, STORAGE (NOT AVAILABLE)

17551-460-670

Unavailable

18

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

19

COLLAR, FR. FENDER SETTING

61107-KB5-000

$3.47

19

COLLAR, FR. FENDER SETTING This part replaces 90121-102-000.

61107-KB5-000

$3.47

20

WASHER (6X9)

90513-405-000

$2.09

21

BOLT, SLOTTED (5X16) (SOURCE: VINTAGE PARTS INC.) This part replaces 92400-05016-0A.

92401-05016-0A

Unavailable

21

BOLT, SLOTTED (5X16) (SOURCE: VINTAGE PARTS INC.)

92401-05016-0A

Unavailable

22

SCREW, PAN (5X25)

93500-05025-0G

$1.49

23

SCREW, PAN (5X25)

93500-05025-0G

$1.49

24

SCREW-WASHER (5X12)

93891-05012-00

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

WASHER, PLAIN (6MM)

94103-06800

$1.49

27

CLIP, TUBE (B10)

95002-02100

$1.90

28

CLIP, TUBE (B12)

95002-02120

$2.00

29

CLIP, TUBE (C12)

95002-80000

$1.49

30

BULK HOSE, VINYL (8X12X8000) (8X12X70)

95003-23008-60M

Unavailable

31

BULK HOSE, VACUUM (8X1000) (8X100)

95005-80001-20M

$23.91

32

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

32

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
