CB650/C FRONT BRAKE CALIPER 80-81

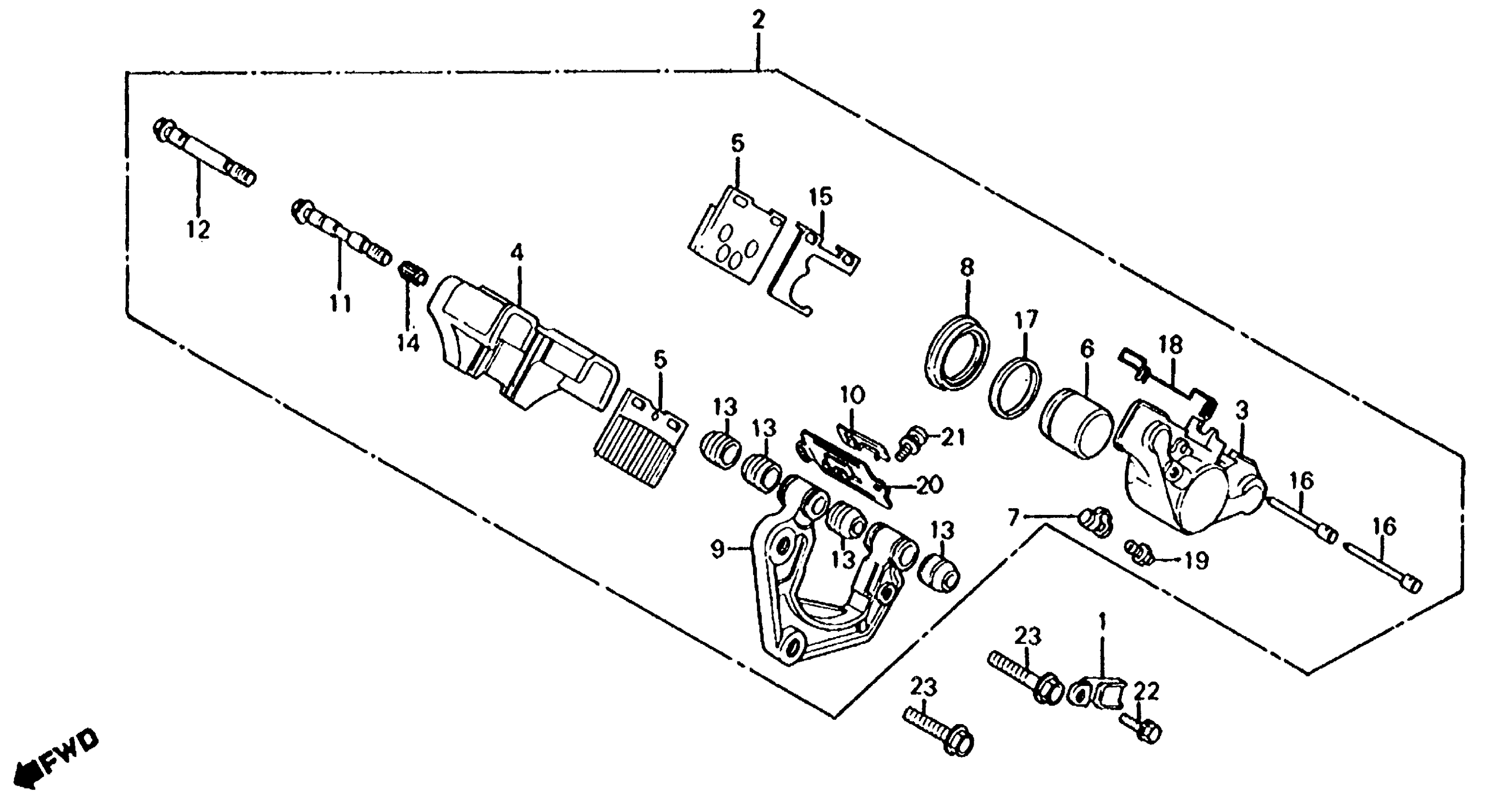

Honda CB650A (80) MOTORCYCLE, JPN, VIN# RC05-2100002 TO RC05-2108005 CB650/C FRONT BRAKE CALIPER 80-81 Diagram
#
Description
Price
1
CLIP, CABLE
32906-049-000
Unavailable
2
CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE)
45100-425-771
Unavailable
2
CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) CALIPER ASSY., L. FR. (ASK) This part replaces 45100-425-772.
45100-425-771
Unavailable
3
CALIPER A (NOT AVAILABLE)
45101-425-771
Unavailable
4
CALIPER B
45102-425-023
Unavailable
5
PAD (ASK) (TOKIKO)
45105-MA5-305
Unavailable
5
PAD (ASK) (TOKIKO) This part replaces 45105-425-003.
45105-MA5-305
Unavailable
5
PAD (ASK) (TOKIKO) This part replaces 45105-425-006.
45105-MA5-305
Unavailable
6
PISTON (NA USE ALT:45100-425-771)
45107-425-003
Unavailable
7
CAP, BLEEDER VALVE
45108-425-003
Unavailable
8
BOOT
45109-425-003
Unavailable
9
CARRIER, L. CALIPER (NOT AVAILABLE)
45110-425-023
Unavailable
10
COVER, INDICATOR (NOT AVAILABLE)
45119-425-003
Unavailable
11
SHAFT B, CALIPER (NOT AVAILABLE)
45131-425-023
Unavailable
12
SHAFT A, CALIPER (NOT AVAILABLE)
45132-425-003
Unavailable
14
RUBBER, BUSH
45134-425-013
Unavailable
15
SHIM (NOT AVAILABLE)
45214-413-003
Unavailable
16
PIN, PAD RETAINING
45215-425-003
Unavailable
17
SEAL, PISTON
45215-533-004
Unavailable
17
SEAL, PISTON This part replaces 45215-533-043.
45215-533-004
Unavailable
18
CLIP, PAD PIN (NOT AVAILABLE)
45223-425-003
Unavailable
19
VALVE, BLEEDER
45224-413-003
Unavailable
20
COVER, L. CALIPER (NOT AVAILABLE)
45241-425-013
Unavailable
