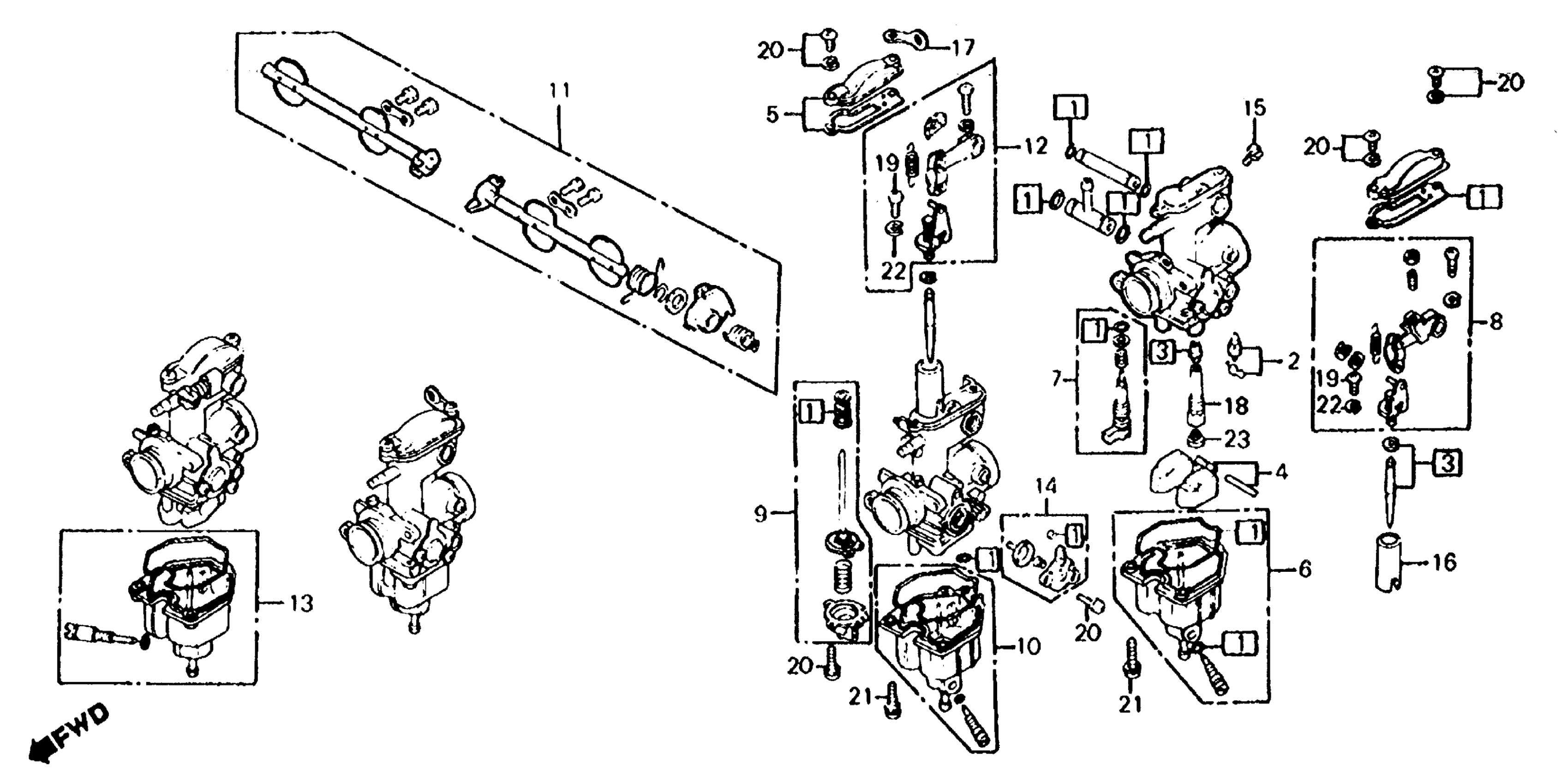

Honda CB650A (80) MOTORCYCLE, JPN, VIN# RC05-2100002 TO RC05-2108005 CARB. COMPONENT PARTS 80 Diagram

#

Description
Price

1

GASKET SET

16010-426-305

Unavailable

1

GASKET SET This part replaces 16010-426-671.

16010-426-305

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET

16012-460-671

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET (NOT AVAILABLE)

16014-393-004

Unavailable

6

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-393-004.

16015-KN4-A10

$97.52

6

CHAMBER SET, FLOAT This part replaces 16015-428-014.

16015-KN4-A10

$97.52

7

SCREW SET A

16016-KC2-970

$25.35

7

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

8

ARM SET A, LINK

16018-426-671

Unavailable

9

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-460-671

Unavailable

10

CHAMBER SET, FLOAT

16015-428-771

Unavailable

10

CHAMBER SET, FLOAT This part replaces 16023-426-003.

16015-428-771

Unavailable

11

LINK SET, CHOKE

16025-426-305

Unavailable

12

ARM SET B, LINK (NOT AVAILABLE)

16031-426-671

Unavailable

13

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

13

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

13

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

15

SCREW SET D (NOT AVAILABLE)

16038-422-004

Unavailable

15

SCREW SET D (NOT AVAILABLE) This part replaces 16071-426-003.

16038-422-004

Unavailable

16

VALVE, THROTTLE (NOT AVAILABLE) | Use up to Engine SN PD50B A

16111-393-014

Unavailable

16

VALVE, THROTTLE (NOT AVAILABLE) | Use from Engine SN PD50D A

16111-460-671

Unavailable

17

BINDER | Use up to Engine SN PD50B A

16134-460-671

Unavailable

18

HOLDER, NEEDLE JET

16165-426-671

Unavailable

19

SCREW, PAN (3X8)

93500-03008-0H

$1.49

20

SCREW-WASHER (4X12)

93892-04012-08

$1.49

21

SCREW-WASHER (4X16)

93892-04016-08

$1.49

22

WASHER, SPRING (3MM)

94111-03800

$1.49

23

JET, MAIN (#95) | Use from Engine SN PD50D A

99101-GHB-0950

$8.77

23

JET, MAIN (#90) | Use up to Engine SN PD50B A This part replaces 99101-393-0900.

99101-GHB-0900

$9.10

23

JET, MAIN (#95) | Use from Engine SN PD50D A This part replaces 99101-393-0950.

99101-GHB-0950

$8.77
