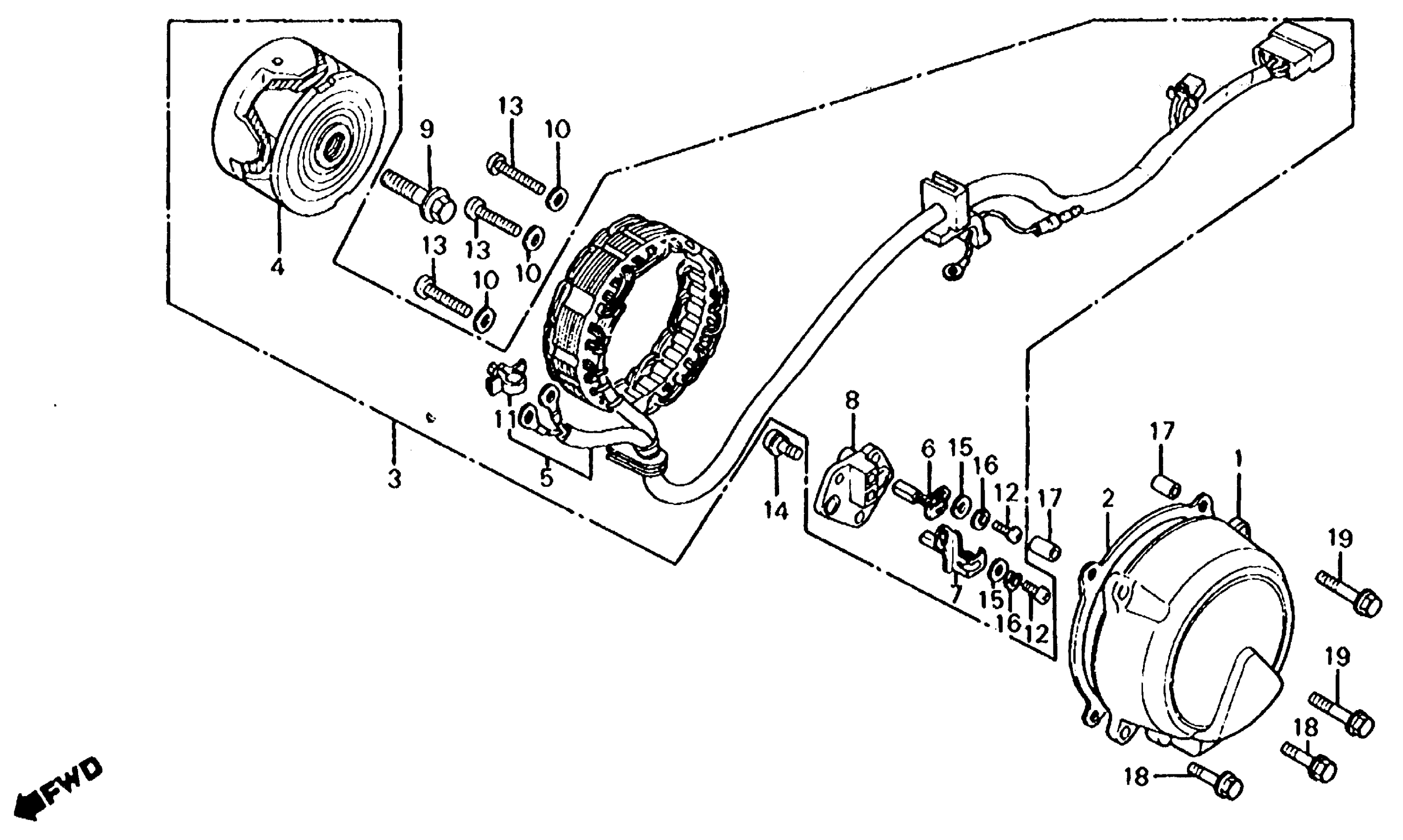

Honda CB650A (80) MOTORCYCLE, JPN, VIN# RC05-2100002 TO RC05-2108005 ALTERNATOR Diagram

COVER, ALTERNATOR

11631-426-010

Unavailable

GASKET, ALTERNATOR COVER This part replaces 11691-426-000.

11691-426-306

Unavailable

GASKET, ALTERNATOR COVER

11691-426-306

Unavailable

ALTERNATOR ASSY. This part replaces 31100-426-015.

31100-426-832

Unavailable

ROTOR This part replaces 31110-425-005.

31110-426-832

Unavailable

ROTOR

31110-426-832

Unavailable

STATOR This part replaces 31120-426-005.

31120-426-832

Unavailable

BRUSH A

31124-MG5-000

Unavailable

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

BRUSH B

31125-MG5-005

Unavailable

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

BASE, BRUSH

31126-422-015

Unavailable

BOLT, UBS (10X32) This part replaces 90014-333-000.

90014-333-003

Unavailable

BOLT, UBS (10X32)

90014-333-003

Unavailable

WASHER, PLAIN (6MM) This part replaces 90563-304-000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94102-06000.

94101-06800

$1.49

CLIP, CABLE (6MM)

90659-170-000

$5.53

SCREW, PAN (4X12)

93500-04012-0H

$1.49

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

SCREW, PAN (6X30)

93500-06030-0A

$1.49

SCREW-WASHER (6X16)

93892-06016-08

$1.49

WASHER, PLAIN (4MM)

94101-04800

$1.49

WASHER, SPRING (4MM)

94111-04800

$1.49

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
