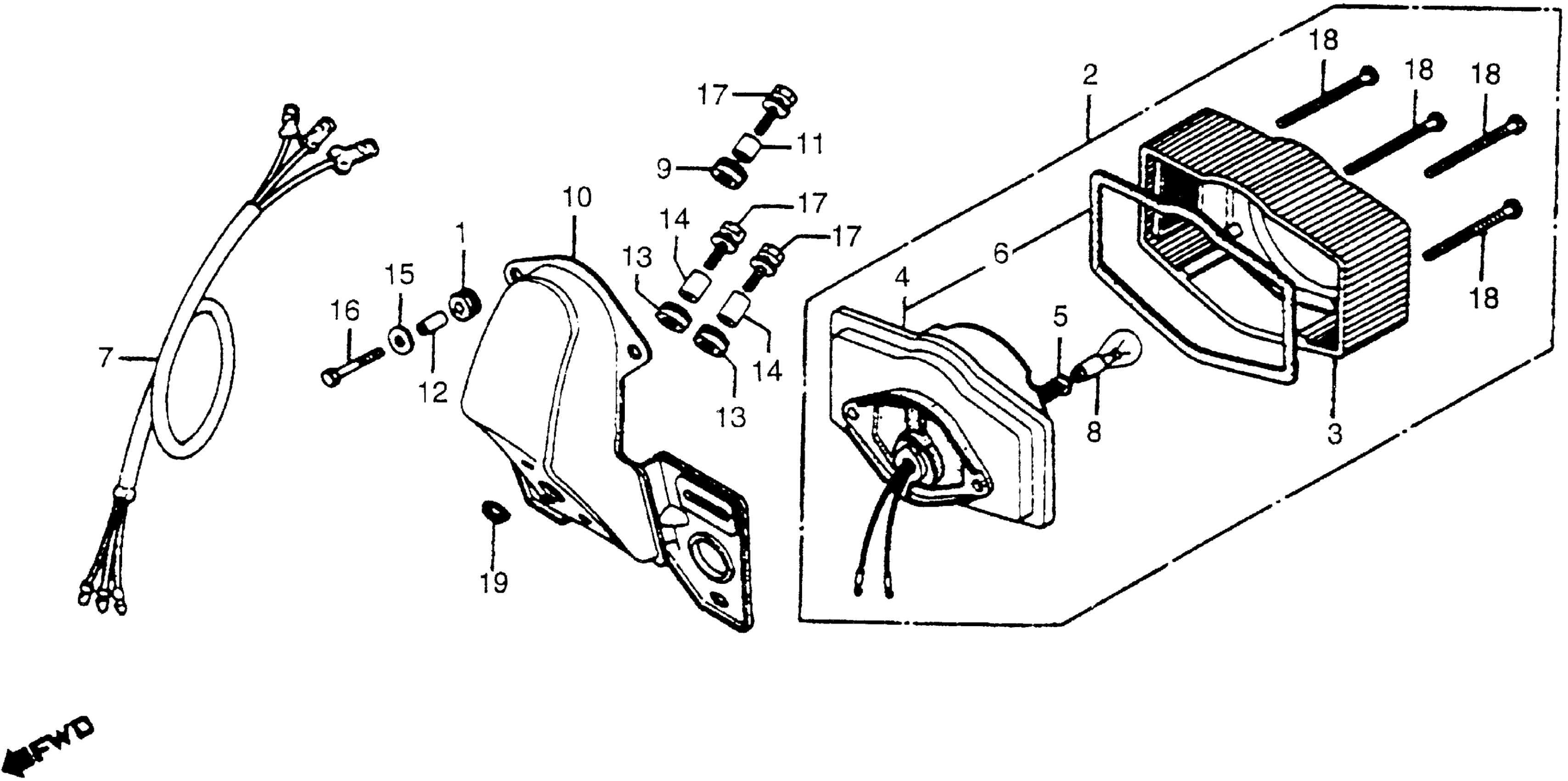

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 TAILLIGHT Diagram

#

Description
Price

1

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.14

1

RUBBER, REGULATOR CUSHION

31403-323-000

$3.14

2

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-341-910

Unavailable

3

LENS, TAILLIGHT

33702-341-671

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-900

Unavailable

5

WIRE, TAILLIGHT

33708-098-000

Unavailable

5

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

6

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

7

WIRE, TAILLIGHT (NOT AVAILABLE)

33711-371-000

Unavailable

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$3.86

8

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$3.86

9

RUBBER, RR. FENDER CUSHION | Use up to Frame SN 2011891

80101-283-000

$4.57

9

RUBBER, FENDER | Use from Frame SN 2011892

84905-333-000

$3.92

10

BRACKET, NUMBER PLATE This part replaces 84700-393-670.

84700-425-870

Unavailable

10

BRACKET, NUMBER PLATE

84700-425-870

Unavailable

11

COLLAR, NUMBER BRACKET SETTING | Use up to Frame SN 2011891

84706-286-000

$2.80

11

COLLAR, NUMBER BRACKET SETTING | Use from Frame SN 2011892

84906-118-000

$2.78

12

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

13

RUBBER, FENDER

84905-333-000

$3.92

14

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.78

15

WASHER (20MM)

90581-310-000

$1.72

16

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

Unavailable

16

BOLT, HEX. (5X25)

92101-05025-0A

Unavailable

17

BOLT-WASHER (6X22) This part replaces 93484-06022-00.

93404-06022-00

$1.26

17

BOLT-WASHER (6X22) This part replaces 93494-06022-00.

93404-06022-00

$1.26

18

SCREW, PAN (4X55)

93500-04055-4J

$1.20

19

NUT-WASHER (6MM)

94071-06080

$1.33
