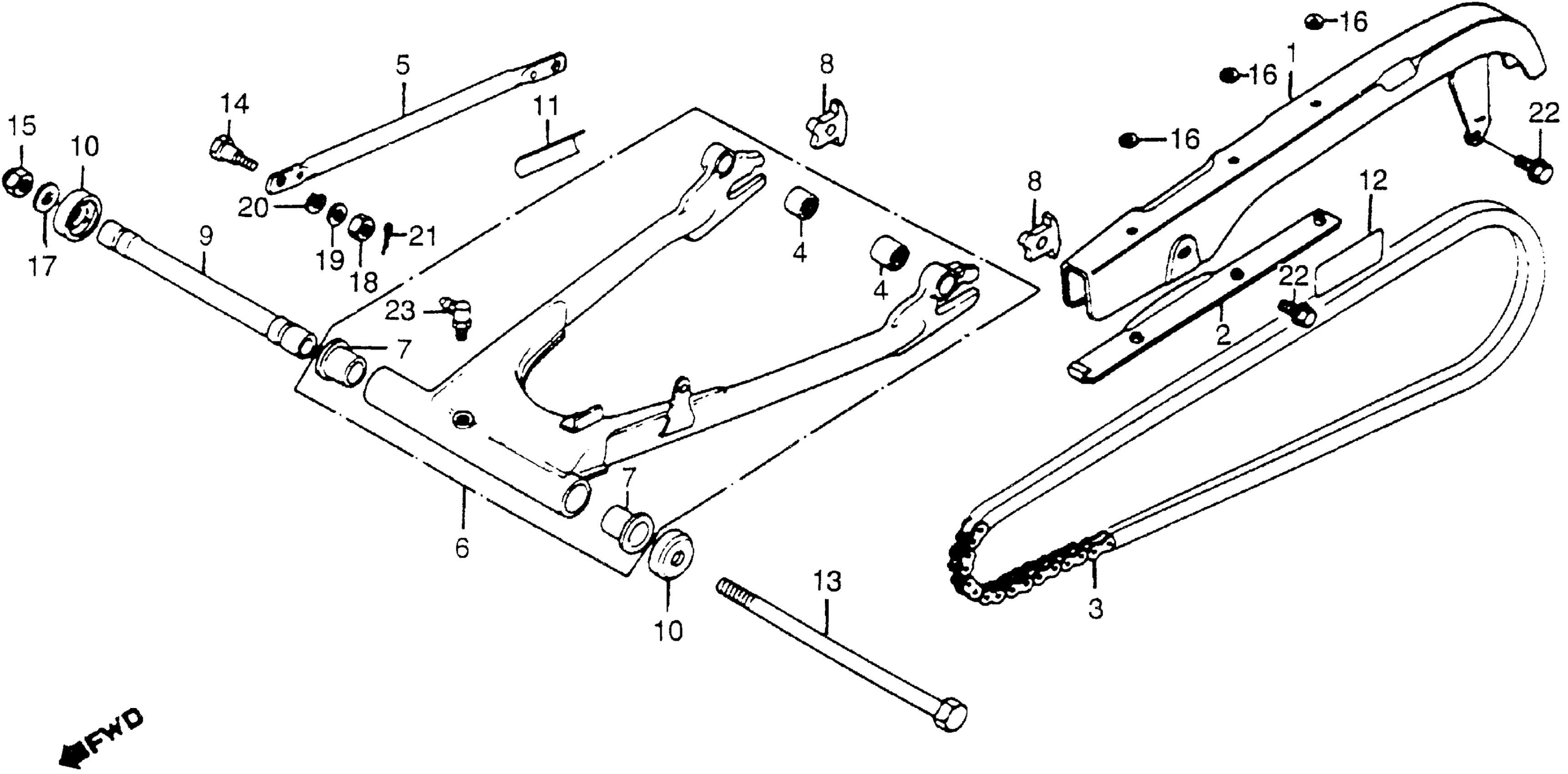

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-426-770

Unavailable

2

SLIDER, CHAIN (NOT AVAILABLE)

40511-426-770

Unavailable

3

CHAIN, DRIVE (DID 50HDK-102L) (NOT AVAILABLE)

40530-426-671

Unavailable

3

CHAIN, DRIVE (DID 50HDK-102L) (NOT AVAILABLE) This part replaces 40530-426-672.

40530-426-671

Unavailable

4

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

5

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-404-000

Unavailable

6

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-426-000ZA

Unavailable

7

BUSH, SWINGARM PIVOT This part replaces 52108-422-300.

52108-457-300

Unavailable

7

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

8

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

8

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

8

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

9

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-390-010

Unavailable

10

CAP, DUST SEAL

52144-362-000

Unavailable

11

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

12

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-426-772

Unavailable

13

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-426-000

Unavailable

14

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

15

NUT, SELF-LOCK (14MM) (NOT AVAILABLE)

90354-422-000

Unavailable

16

WASHER (8MM) (NOT AVAILABLE)

90509-426-770

Unavailable

17

WASHER (14MM) (NOT AVAILABLE)

90600-422-000

Unavailable

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-10000

$1.49

21

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

21

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

21

PIN, COTTER (2.0X22)

94201-20220

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

21

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

21

PIN, COTTER (2.0X35)

94201-20350

$1.49

21

PIN, COTTER (2.0X22)

94201-29220

$1.49

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

22

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

23

FITTING, GREASE (C.76)

96201-60000

$2.87
