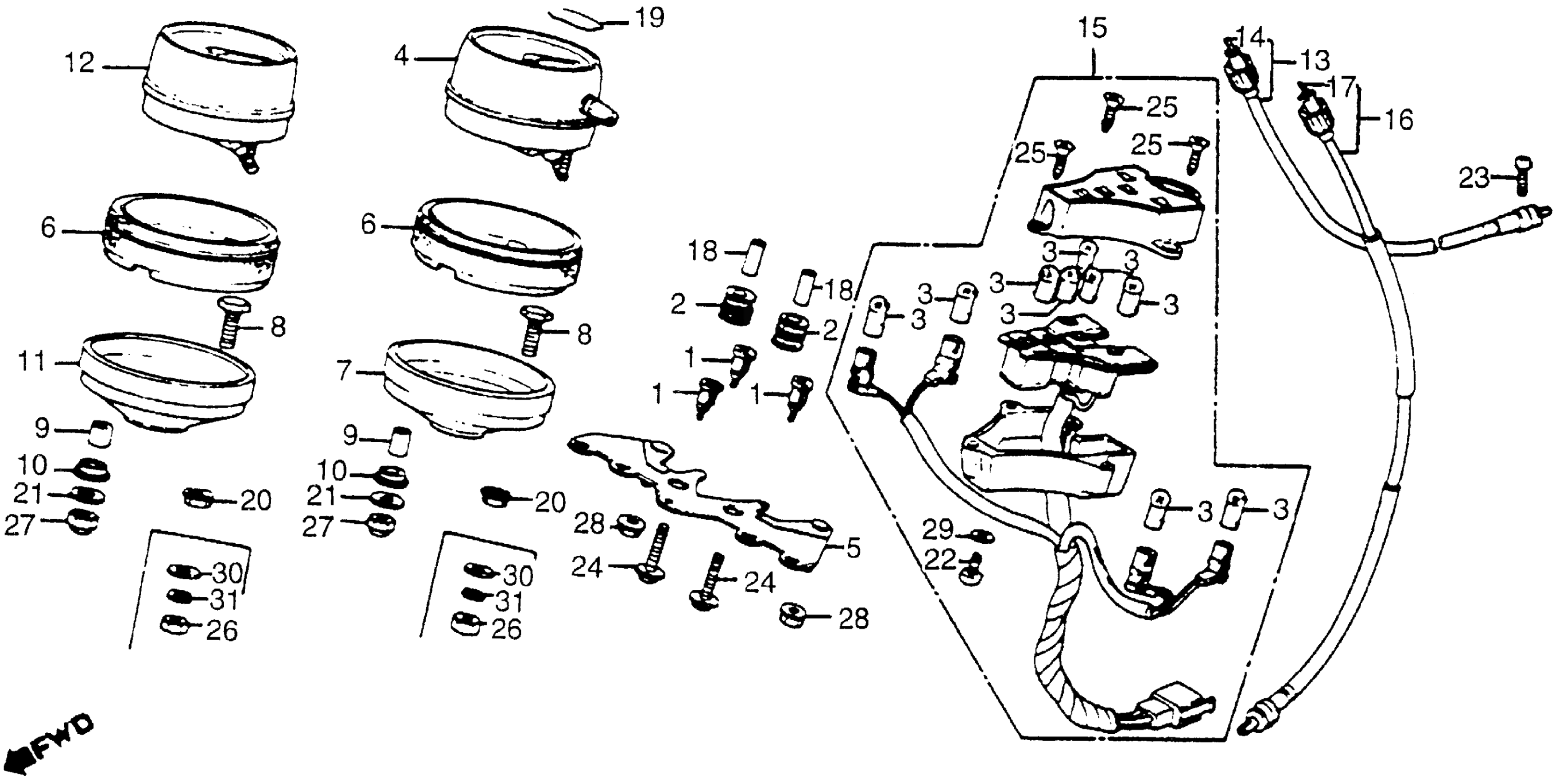

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

STOPPER, METER BRACKET (NOT AVAILABLE)

32701-392-700

Unavailable

2

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

3

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

4

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE) This part replaces 37200-426-671.

37200-426-674

Unavailable

4

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-426-674

Unavailable

5

STAY, METER (NOT AVAILABLE)

37211-426-000

Unavailable

6

RUBBER, SPEEDOMETER

37235-323-700

$22.28

7

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

8

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

9

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

10

RUBBER, METER SETTING

37244-307-670

$2.67

11

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

12

TACHOMETER ASSY. (DENSO)

37250-MA5-671

Unavailable

12

TACHOMETER ASSY. (NIPPON SEIKI) (NOT AVAILABLE)

37250-426-008

Unavailable

12

TACHOMETER ASSY. (DENSO) This part replaces 37250-426-009.

37250-MA5-671

Unavailable

12

TACHOMETER ASSY. (DENSO) This part replaces 37250-426-019.

37250-MA5-671

Unavailable

13

CABLE ASSY., TACHOMETER

37260-GE2-000

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-426-000.

37260-GE2-000

Unavailable

14

CABLE, SPEEDOMETER This part replaces 37261-426-000.

44831-102-780

Unavailable

15

PILOT ASSY., COMBINATION (NIPPON SEIKI) (NOT AVAILABLE)

37600-426-771

Unavailable

16

CABLE ASSY., SPEEDOMETER

44830-KB4-700

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-356-010.

44830-KB4-700

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-610.

44830-KB4-700

Unavailable

16

CABLE ASSY., SPEEDOMETER This part replaces 44830-426-000.

44830-KB4-700

Unavailable

17

CABLE (INNER)

44831-GJ3-600

Unavailable

17

CABLE (INNER) This part replaces 44831-KB4-700.

44831-GJ3-600

Unavailable

18

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

19

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

20

NUT, METER MOUNT

90303-426-000

Unavailable

21

WASHER (6.5X18)

90545-323-700

$1.89

22

SCREW, PAN (5X6)

93500-05006-0G

$1.49

23

SCREW, PAN (5X20)

93500-05020-0A

$1.49

24

SCREW-WASHER (5X28) (NOT AVAILABLE)

93894-05028-00

Unavailable

25

SCREW, TAPPING (4X10)

93902-24280

Unavailable

26

NUT, HEX. (6MM) This part replaces 94001-06070.

94001-06070-0S

$1.49

26

NUT, HEX. (6MM)

94001-06070-0S

$1.49

27

NUT, CAP (6MM)

94021-06020

$1.73

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, FLAT (5MM)

94101-05700

$1.49

30

WASHER, PLAIN (6MM)

94101-06700

$1.49

31

WASHER, SPRING (6MM)

94111-06700

$1.49
