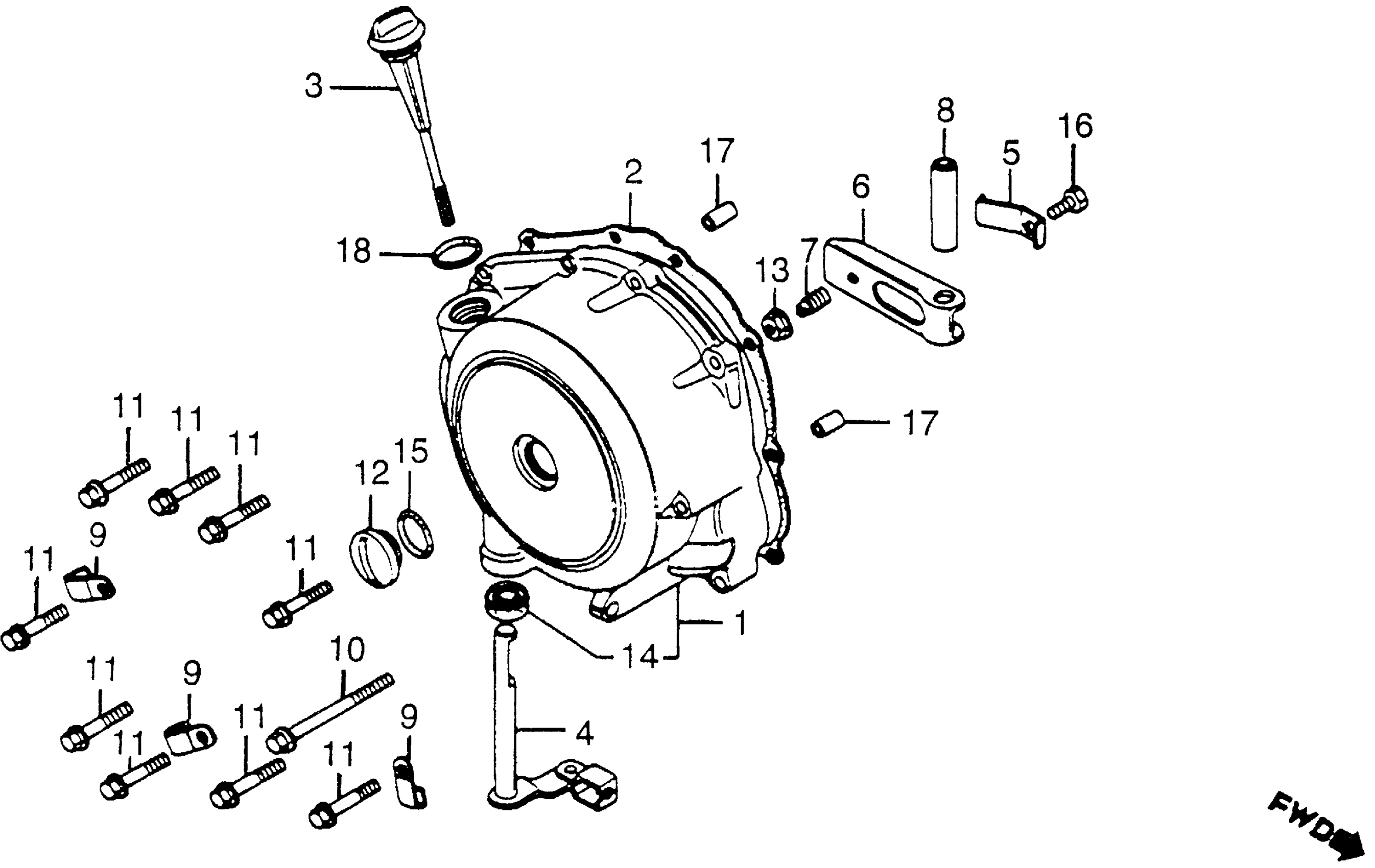

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE This part replaces 11330-426-000.

11330-426-315

Unavailable

1

COVER, R. CRANKCASE

11330-426-315

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-426-000.

11394-426-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-426-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-426-000

Unavailable

4

LEVER, CLUTCH (NOT AVAILABLE)

22710-426-000

Unavailable

5

SPRING, LEVER (NOT AVAILABLE)

22815-426-000

Unavailable

6

LEVER, CLUTCH ADJ.

22831-426-000

Unavailable

7

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-425-000

Unavailable

8

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

9

CLAMP, CABLE | Use up to Engine SN 2020679

32111-323-000

$3.98

9

CLAMP, CABLE | Use from Engine SN 2020680

32111-426-000

Unavailable

10

BOLT, FLANGE (6X80) This part replaces 90006-417-000.

96001-06080-07

$2.23

10

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

$2.23

10

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

10

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

10

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

11

BOLT, FLANGE (6X32) This part replaces 90006-425-000.

96001-06032-00

$1.49

11

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

11

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

12

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

90042-422-000

Unavailable

13

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

14

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

14

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

14

OIL SEAL (12X22X5)

91201-965-000

$4.06

15

O-RING (23.5X2.6)

91305-425-003

$3.69

15

O-RING (23.5X2.6) This part replaces 91305-714-000.

91305-425-003

$3.69

16

BOLT, HEX. (6X10) | Use up to Engine SN 2014252 This part replaces 92000-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X12) | Use from Engine SN 2014253 This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X10) | Use up to Engine SN 2014252

92101-06010-0A

$1.49

16

BOLT, HEX. (6X12) | Use from Engine SN 2014253 This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) | Use from Engine SN 2014253

92101-06012-0A

$1.49

17

PIN A, DOWEL (8X14)

94301-08140

$2.25

18

O-RING (23X2.8)

94608-50000

$1.49
