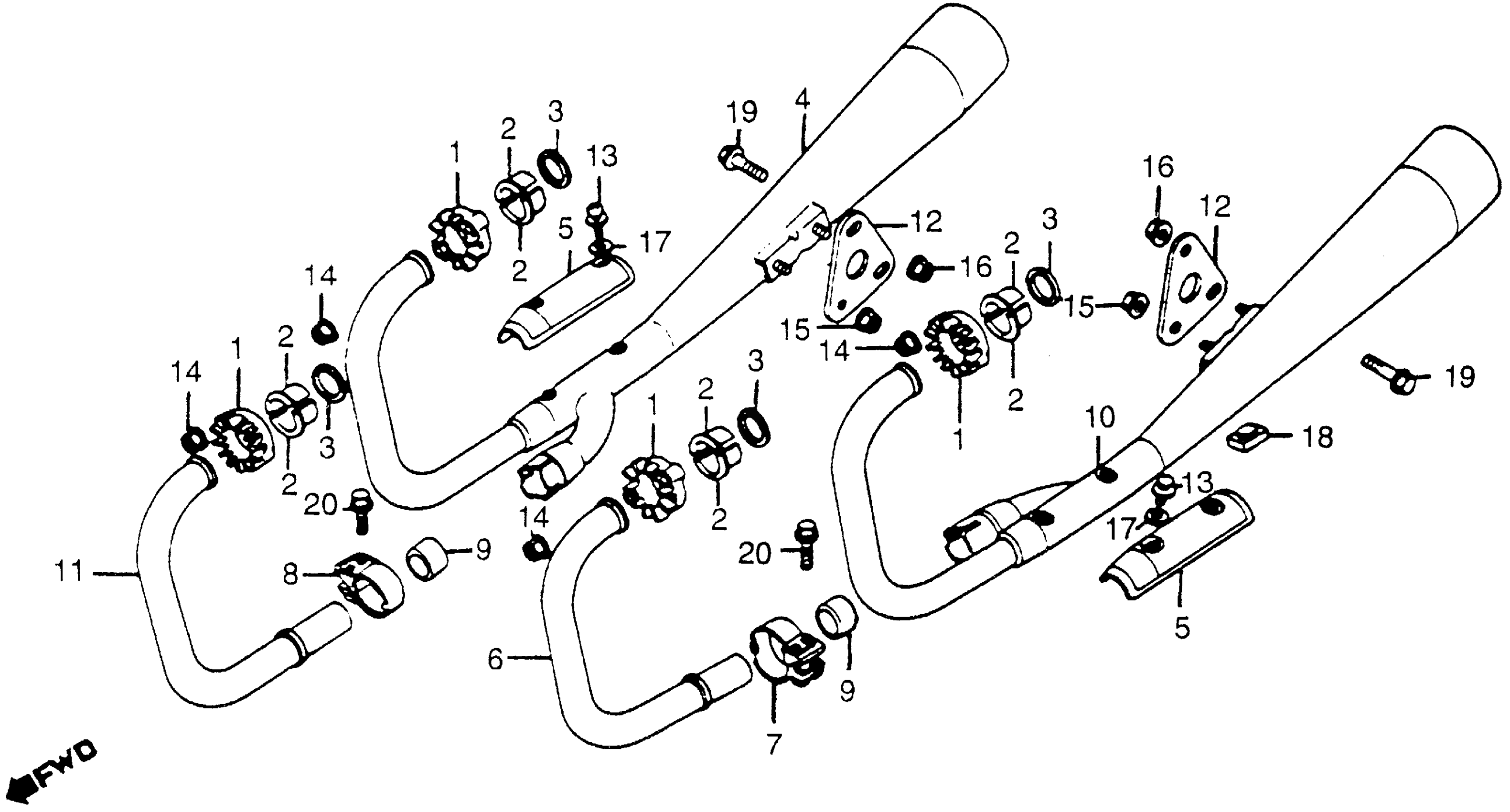

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 MUFFLER Diagram
#
Description
Price
1
JOINT, EX. PIPE (NOT AVAILABLE)
18231-426-000
Unavailable
2
COLLAR, EX. PIPE JOINT
18233-426-000
Unavailable
4
MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-426-670.
18300-426-672
Unavailable
4
MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-426-671.
18300-426-672
Unavailable
4
MUFFLER, R. EX. (NOT AVAILABLE)
18300-426-672
Unavailable
5
COVER, JOINT
18346-426-000
Unavailable
6
PIPE 2, EX. (NOT AVAILABLE)
18370-426-003
Unavailable
7
BAND, R. EX. PIPE (NOT AVAILABLE)
18373-425-000
Unavailable
8
BAND, L. EX. PIPE (NOT AVAILABLE)
18374-425-000
Unavailable
9
GASKET, EX. This part replaces 18391-MJ4-000.
18392-ML0-000
Unavailable
9
GASKET, EX. This part replaces 18391-425-000.
18392-ML0-000
Unavailable
9
GASKET, EX.
18392-ML0-000
Unavailable
10
MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-426-670.
18400-426-672
Unavailable
10
MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18400-426-671.
18400-426-672
Unavailable
10
MUFFLER, L. EX. (NOT AVAILABLE)
18400-426-672
Unavailable
11
PIPE 3, EX. (NOT AVAILABLE)
18420-426-003
Unavailable
12
STAY, MUFFLER
18450-426-000
Unavailable
