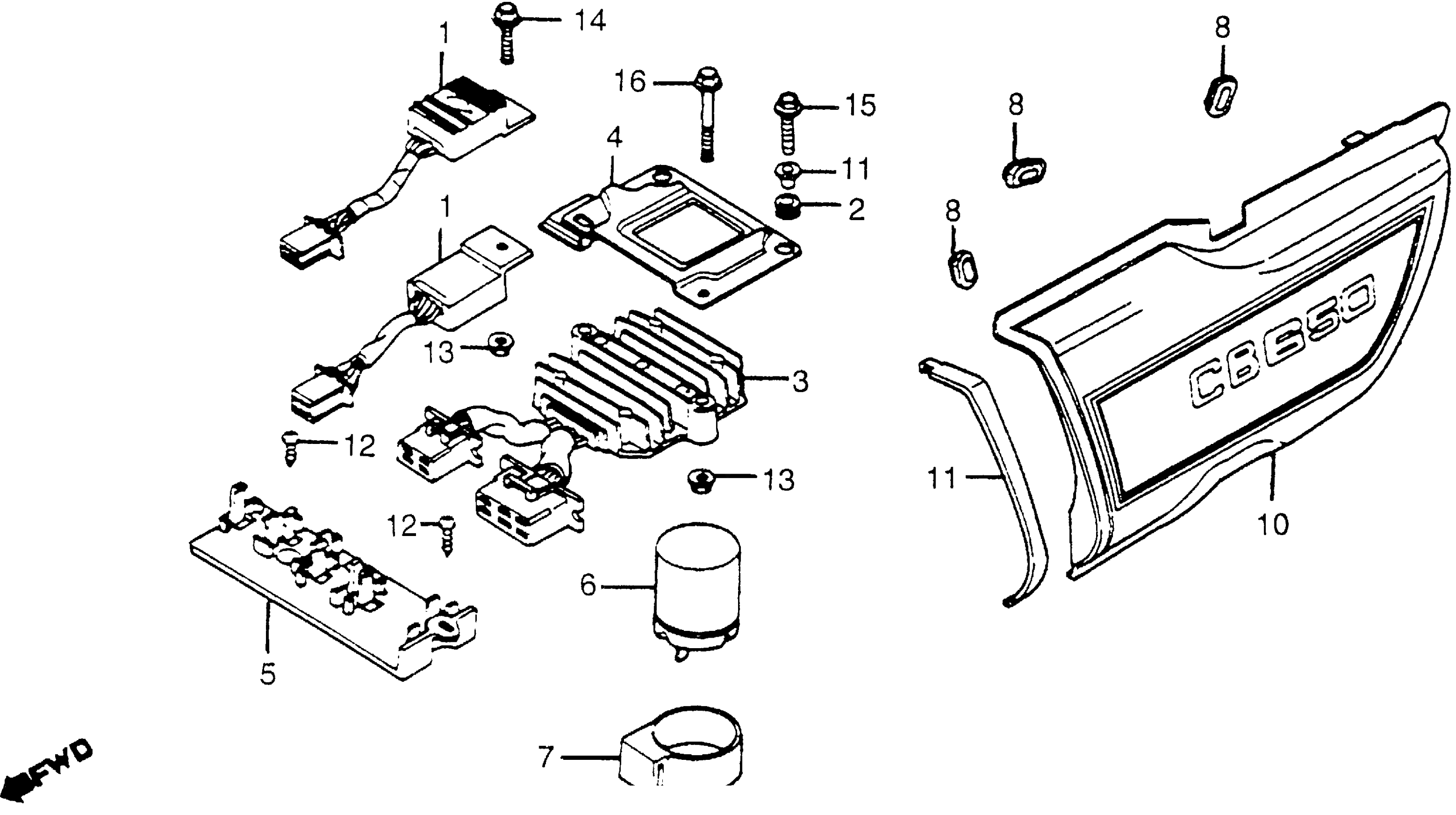

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 LEFT SIDE COVER + RECTIFIER Diagram

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-426-154.

30400-MA4-601

Unavailable

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-460-661.

30400-MA4-601

Unavailable

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-460-662.

30400-MA4-601

Unavailable

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)

31600-426-000

Unavailable

STAY, REGULATOR RECTIFIER (NOT AVAILABLE)

31601-426-000

Unavailable

HOLDER, CONNECTOR

32400-426-000

Unavailable

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

RELAY, TURN SIGNAL This part replaces 38301-415-671.

38300-MG2-008

Unavailable

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

MOLDING, L. SIDE COVER (NOT AVAILABLE)

83705-426-000

Unavailable

COVER, L. SIDE *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

83720-426-770ZA

Unavailable

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83720-426-770ZB

Unavailable

WASHER, FR. COVER SETTING

90501-124-000

$3.74

SCREW, TAPPING (4X16)

93901-34420

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
