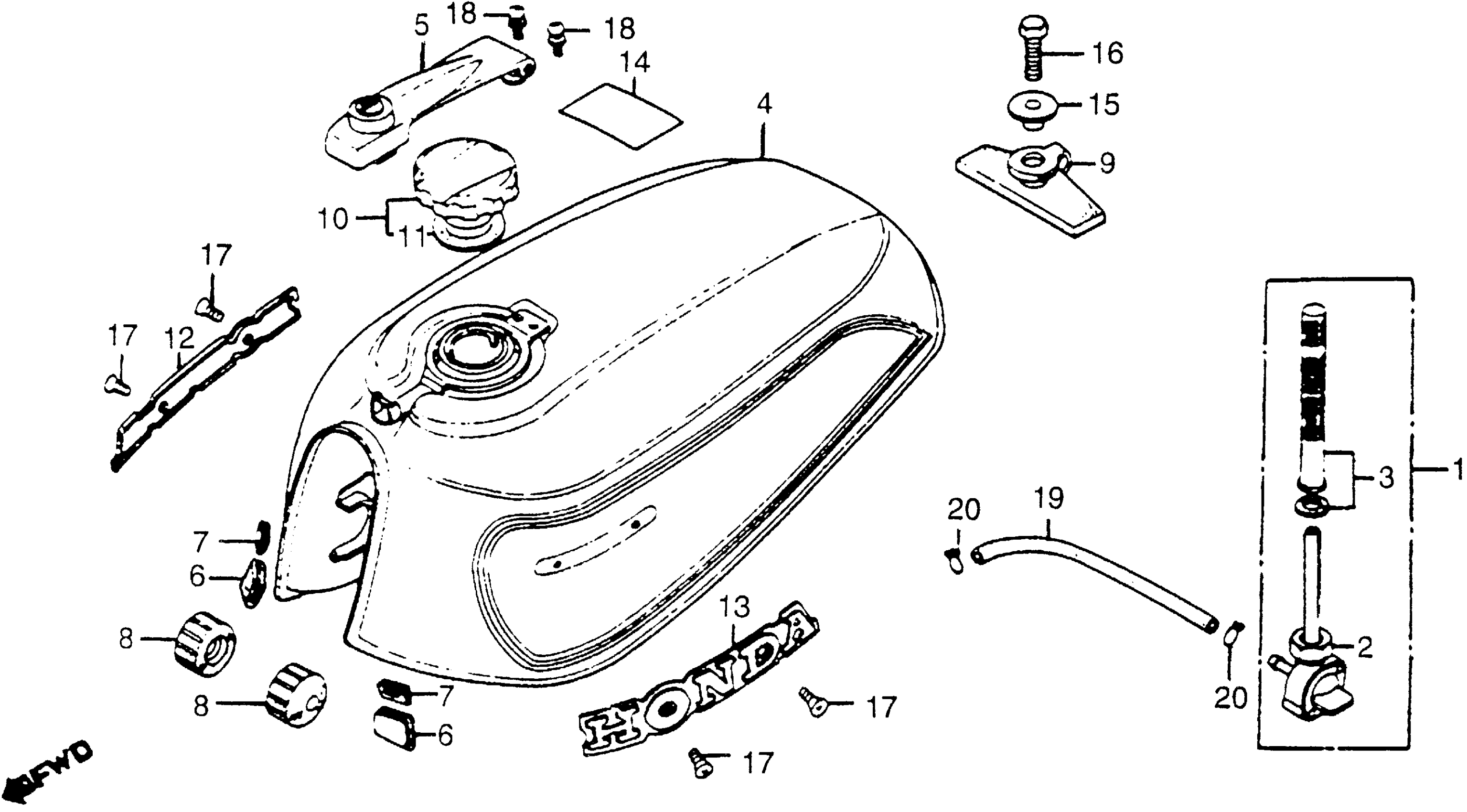

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 FUEL TANK Diagram
#
Description
Price
1
PETCOCK ASSY. | Use up to Frame SN 2021193 This part replaces 16950-425-005.
16950-425-025
Unavailable
1
PETCOCK ASSY. | Use up to Frame SN 2021193 This part replaces 16950-425-015.
16950-425-025
Unavailable
1
PETCOCK ASSY. This part replaces 16950-425-015.
16950-425-025
Unavailable
1
PETCOCK ASSY. | Use up to Frame SN 2021193
16950-425-025
Unavailable
1
PETCOCK ASSY.
16950-425-025
Unavailable
2
BODY, PETCOCK (NOT AVAILABLE) | Use up to Frame SN 2021193 This part replaces 16951-425-005.
16951-425-025
Unavailable
2
BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-425-015.
16951-425-025
Unavailable
2
BODY, PETCOCK (NOT AVAILABLE)
16951-425-025
Unavailable
3
SCREEN SET, FUEL STRAINER
16952-425-005
Unavailable
4
TANK SET, FUEL *R104CU* (CANDY MUSE RED) This part replaces 17520-426-770ZA.
17540-426-770ZA
Unavailable
4
TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17520-426-770ZB.
17540-426-770ZB
Unavailable
4
TANK SET, FUEL *R104CU* (CANDY MUSE RED)
17540-426-770ZA
Unavailable
4
TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)
17540-426-770ZB
Unavailable
5
LID, FUEL TANK (NOT AVAILABLE)
17530-443-305
Unavailable
5
LID, FUEL TANK (NOT AVAILABLE) | Use up to Frame SN 2017928 This part replaces 17530-443-611.
17530-443-305
Unavailable
5
LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.
17530-443-305
Unavailable
6
MOLDING, FR. FUEL TANK
17541-422-000
Unavailable
7
CLIP B, FUEL TANK MOLDING
17545-323-010
Unavailable
9
RUBBER, RR. FUEL TANK (NOT AVAILABLE)
17613-425-000
Unavailable
10
CAP, FUEL FILLER This part replaces 17620-422-023.
17620-469-000
Unavailable
10
CAP, FUEL FILLER This part replaces 17620-449-003.
17620-469-000
Unavailable
10
CAP, FUEL FILLER
17620-469-000
Unavailable
11
GASKET, FUEL FILLER CAP
17632-422-000
Unavailable
12
EMBLEM, R. FUEL TANK
87121-426-000
Unavailable
13
EMBLEM, L. FUEL TANK
87122-426-000
Unavailable
15
WASHER (8MM) (NOT AVAILABLE)
90502-425-000
Unavailable
