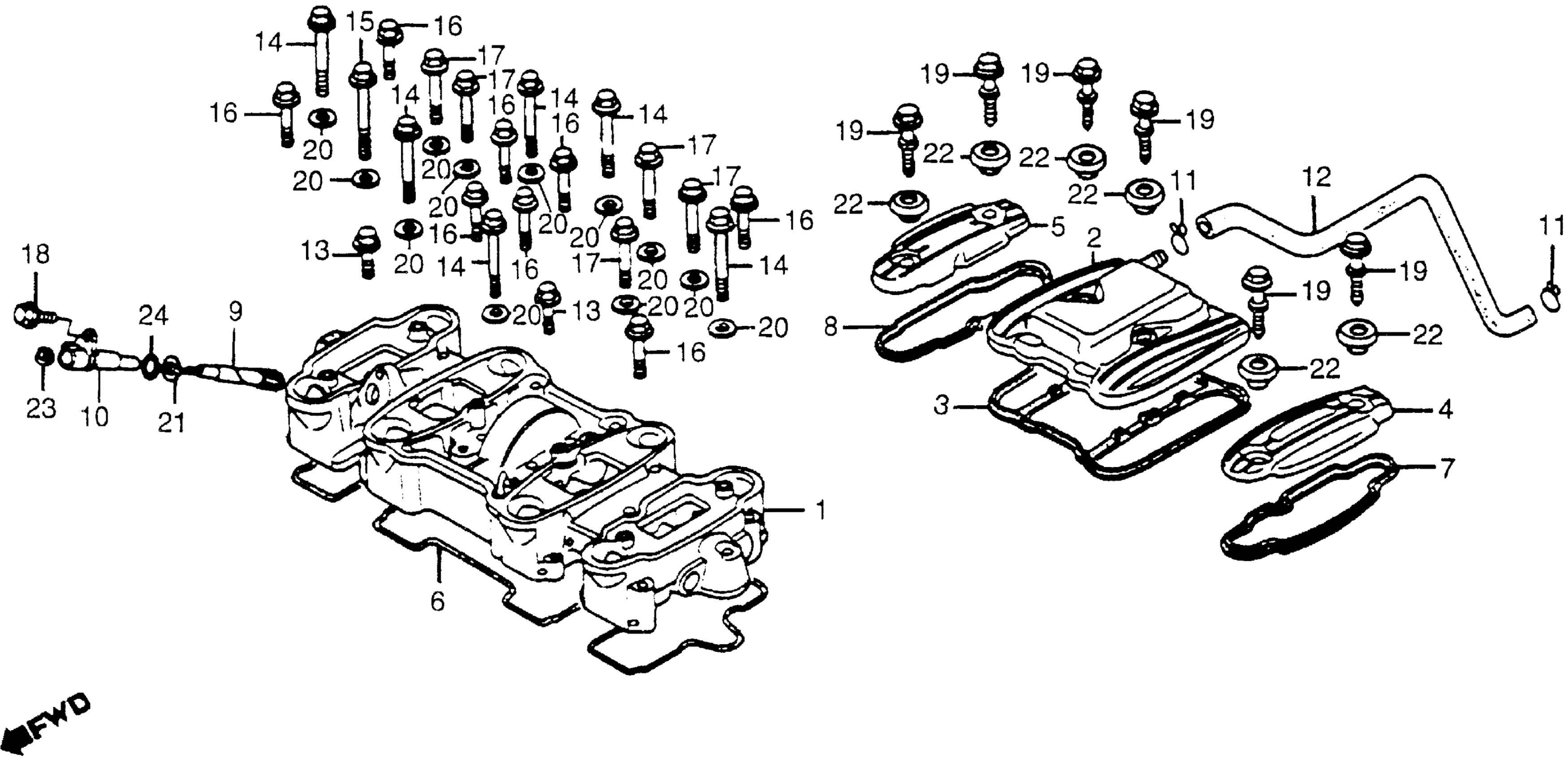

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-426-000

Unavailable

2

COVER, BREATHER

12320-426-000

Unavailable

3

GASKET, BREATHER COVER

12329-426-000

Unavailable

4

COVER, L. VALVE ADJ. (NOT AVAILABLE)

12361-426-000

Unavailable

5

COVER, R. VALVE ADJ. (NOT AVAILABLE)

12362-426-000

Unavailable

6

GASKET, CYLINDER COVER This part replaces 12391-426-000.

12391-460-770

Unavailable

6

GASKET, CYLINDER COVER This part replaces 12391-460-680.

12391-460-770

Unavailable

6

GASKET, CYLINDER COVER

12391-460-770

Unavailable

7

GASKET, L. VALVE ADJ. COVER

12395-426-000

Unavailable

8

GASKET, R. VALVE ADJ. COVER

12396-426-000

Unavailable

9

GEAR, TACHOMETER (NOT AVAILABLE)

12431-426-003

Unavailable

10

CAP, TACHOMETER

12451-323-000

Unavailable

11

CLIP, BREATHER TUBE

15772-551-000

$1.81

11

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.10

12

TUBE, BREATHER (NOT AVAILABLE)

17270-426-000

Unavailable

13

BOLT, FLANGE (6X25) This part replaces 90005-415-000.

96000-06025-00

$1.91

13

BOLT, FLANGE (6X25) This part replaces 90005-437-000.

96000-06025-00

$1.91

13

BOLT, FLANGE (6X25)

96000-06025-00

$1.91

13

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

14

BOLT, FLANGE (6X45) This part replaces 90005-426-000.

96001-06045-00

$1.78

14

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.78

14

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

15

BOLT, FLANGE (6X50) This part replaces 90006-437-000.

96001-06050-00

$1.97

15

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$1.97

15

BOLT, FLANGE (6X50)

96001-06050-00

$1.97

16

BOLT, FLANGE (6X35) This part replaces 90006-HA7-670.

96001-06035-00

$1.28

16

BOLT, FLANGE (6X35) This part replaces 90007-413-000.

96001-06035-00

$1.28

16

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

16

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

17

BOLT, FLANGE (6X40) This part replaces 90007-428-000.

96001-06040-00

$1.97

17

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$1.97

17

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

18

BOLT, FLANGE (6X18) This part replaces 90008-413-000.

96001-06018-00

$1.64

18

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.64

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.64

19

BOLT, SPECIAL (6X27.5)

90017-425-000

$4.13

20

WASHER, THRUST (11MM)

90425-300-000

$2.42

21

WASHER, THRUST (7MM)

90451-292-000

Unavailable

22

RUBBER, SETTING

90541-422-000

$8.22

23

OIL SEAL (4.8X14.5X5) (ARAI)

91256-425-003

$4.77

23

OIL SEAL (4.8X14.5X5) (ARAI) This part replaces 91256-425-005.

91256-425-003

$4.77

24

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$4.83

24

O-RING (11X2.5)

91310-426-000

$4.83

24

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$4.83
