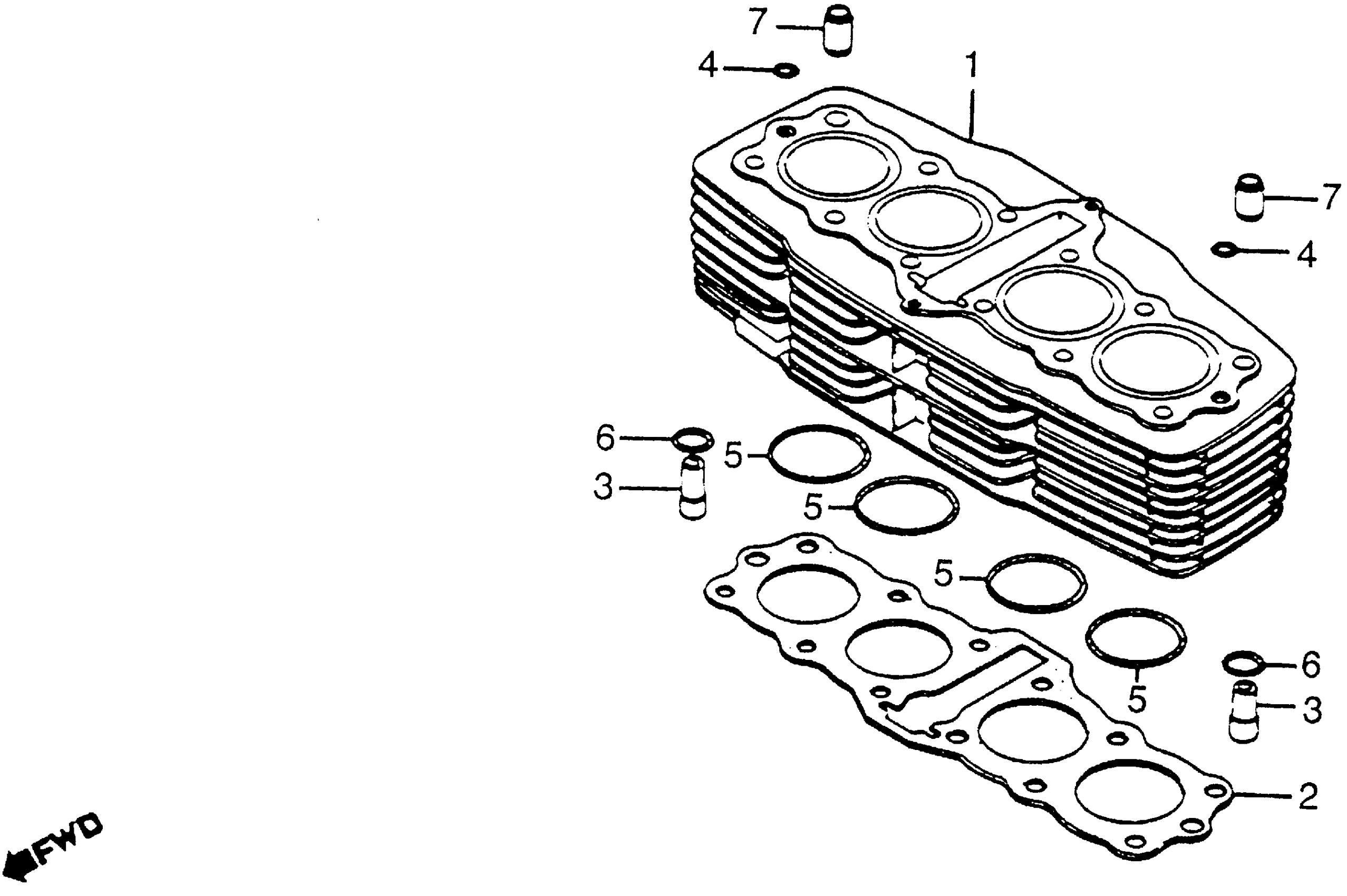

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 12100-426-000.

12100-426-010

Unavailable

1

CYLINDER

12100-426-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-426-000.

12191-426-306

$16.38

2

GASKET, CYLINDER

12191-426-306

$16.38

3

VALVE, OIL CONTROL (NOT AVAILABLE)

12238-323-000

Unavailable

4

O-RING (4.9X2.5) This part replaces 91301-323-000.

91301-426-010

$3.60

4

O-RING (4.9X2.5) This part replaces 91301-426-000.

91301-426-010

$3.60

4

O-RING (4.9X2.5)

91301-426-010

$3.60

5

O-RING (61.8X2.0)

91304-286-000

$10.25

6

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

6

O-RING (11X2.5)

91310-426-000

$5.19

6

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

7

PIN, DOWEL (12X18)

94301-12180

$2.59
