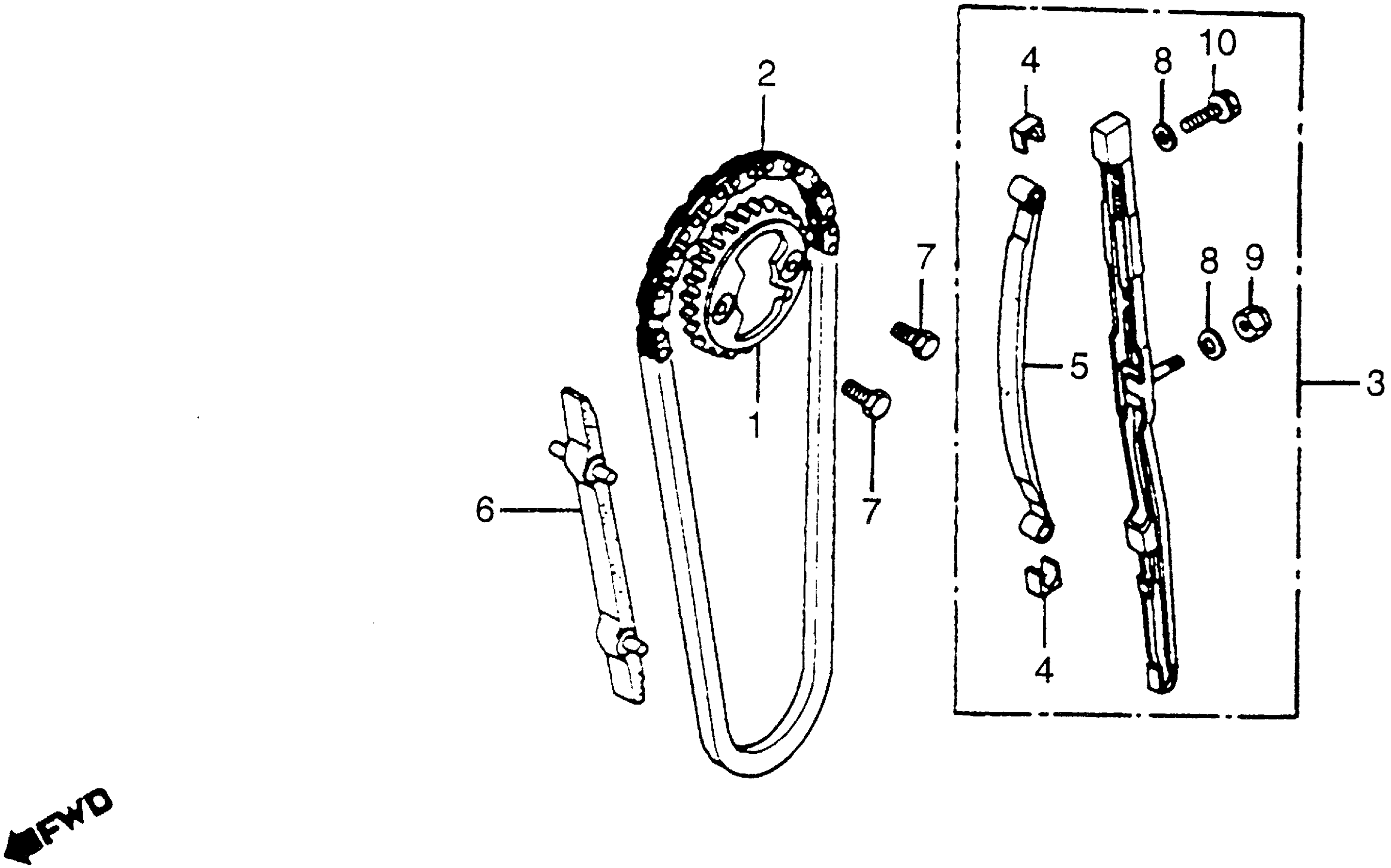

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET SET, CAM

14300-426-305

Unavailable

1

SPROCKET SET, CAM This part replaces 14321-426-000.

14300-426-305

Unavailable

2

CHAIN, CAM (NOT AVAILABLE) This part replaces 14401-426-004.

14401-426-024

Unavailable

2

CHAIN, CAM (NOT AVAILABLE) This part replaces 14401-426-014.

14401-426-024

Unavailable

2

CHAIN, CAM (NOT AVAILABLE)

14401-426-024

Unavailable

3

TENSIONER, CAM CHAIN (NOT AVAILABLE) | Use up to Engine SN 2021277 This part replaces 14500-426-000.

14500-426-010

Unavailable

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-426-010

Unavailable

4

DAMPER, CAM CHAIN TENSIONER

14501-323-000

Unavailable

5

SLIPPER, TENSIONER (NOT AVAILABLE) | Use up to Engine SN 2021277 This part replaces 14520-426-000.

14520-426-010

Unavailable

5

SLIPPER, TENSIONER (NOT AVAILABLE)

14520-426-010

Unavailable

6

GUIDE, CAM CHAIN | Use up to Engine SN 2022098 This part replaces 14611-426-000.

14611-426-010

Unavailable

6

GUIDE, CAM CHAIN | Use up to Engine SN 2022098

14611-426-010

Unavailable

6

GUIDE, CAM CHAIN

14611-426-010

Unavailable

7

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

7

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

8

WASHER, THRUST (11MM)

90425-300-000

$2.66

9

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

9

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

9

NUT, CAP (6MM)

94021-06020

$1.73

9

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

9

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

10

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

10

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
