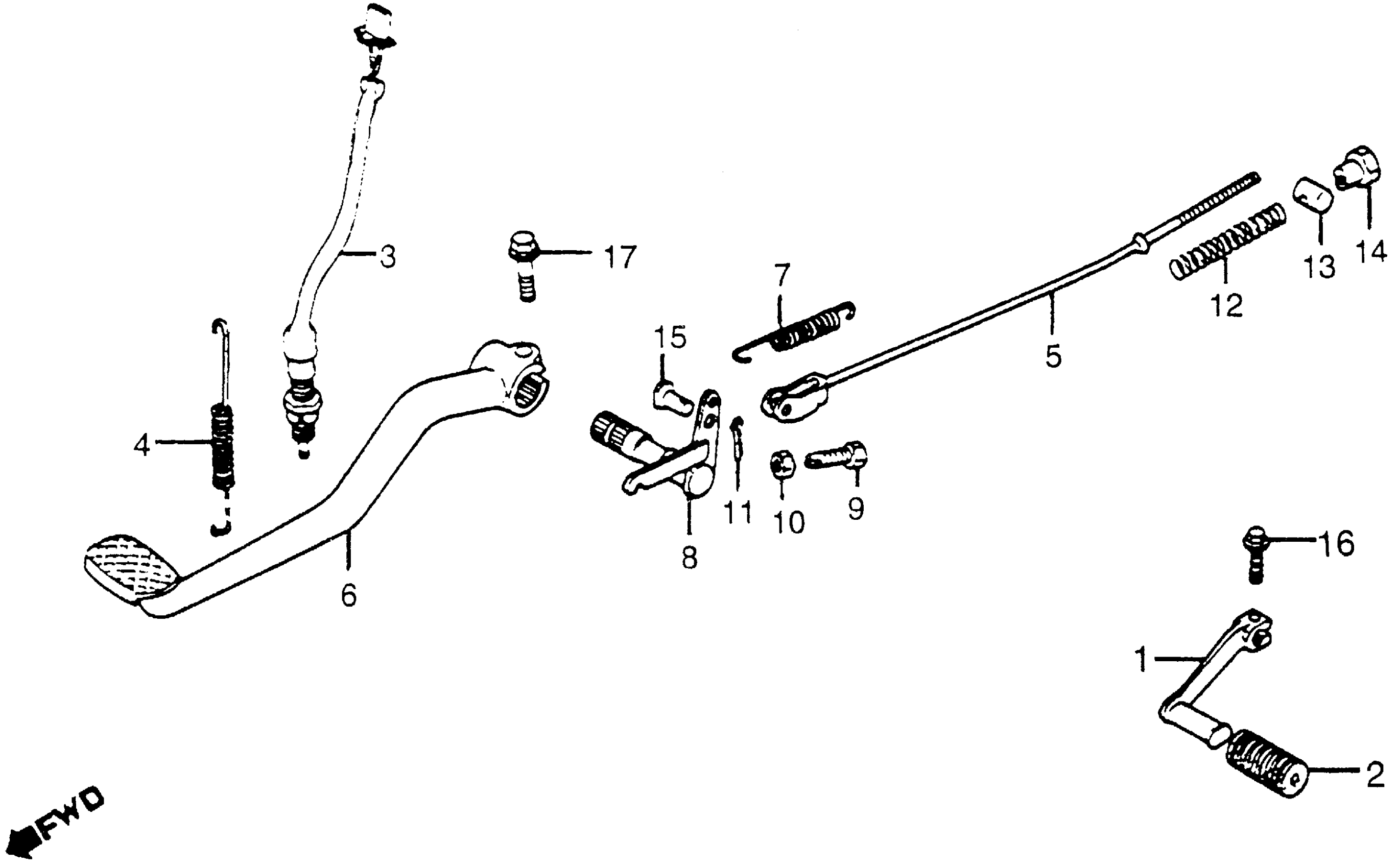

Honda CB650A (79) MOTORCYCLE, JPN, VIN# RC03-2002472 BRAKE PEDAL + CHANGE PEDAL Diagram

#

Description
Price

NI

PLATE, BRAKE PEDAL SPRING STOPPER (NOT AVAILABLE)

46615-426-000

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-426-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP

35350-MG7-405

$20.36

3

SWITCH ASSY., RR. STOP This part replaces 35350-425-003.

35350-MG7-405

$20.36

4

SPRING, STOP SWITCH

35357-KT8-000

Unavailable

4

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-426-000.

35357-KT8-000

Unavailable

5

ROD, RR. BRAKE (NOT AVAILABLE)

43451-323-020

Unavailable

6

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-426-000

Unavailable

7

SPRING, BRAKE PEDAL (NOT AVAILABLE) | Use up to Frame SN 2017756 This part replaces 46514-426-000.

46514-426-010

Unavailable

7

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-426-010

Unavailable

8

SPINDLE, RR. BRAKE

46515-426-000

Unavailable

9

BOLT (6X32) (NOT AVAILABLE)

90186-426-000

Unavailable

10

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

10

NUT, HEX. (6MM)

94002-06000-0S

$1.49

11

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

11

PIN, COTTER (1.6X25)

94201-16250

$1.49

12

SPRING A, BRAKE ROD

95014-73100

$1.49

13

JOINT, BRAKE ARM

95015-32001

$1.49

14

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

15

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

17

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

17

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
