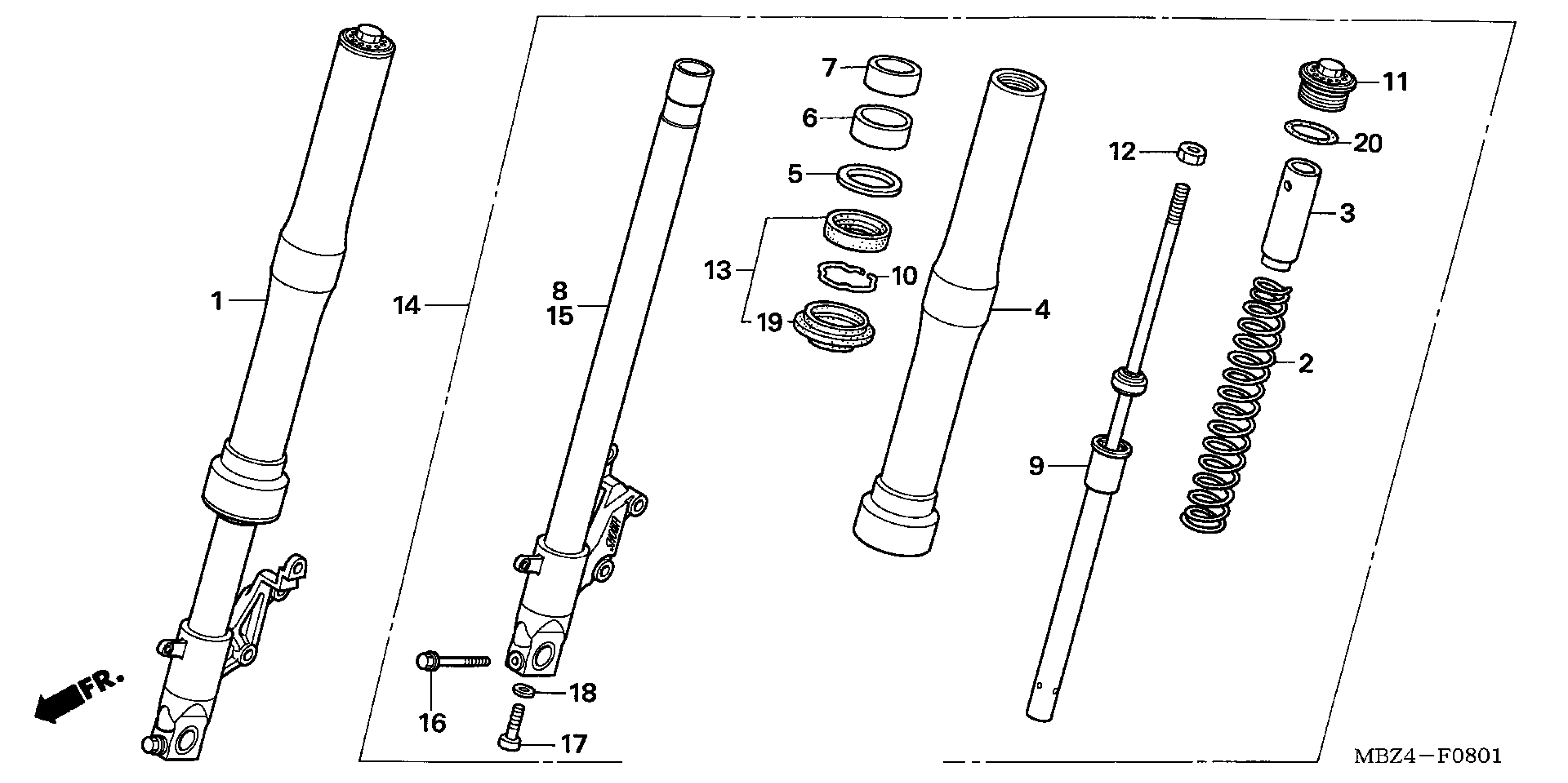

Honda CB600FAC (06) 599, ITA, VIN# ZDCPC361-6F100001 FRONT FORK (2) Diagram

#

Description
Price

1

FORK ASSY., R. FR. | Use up to Frame SN 6F100127 This part replaces 51400-MBZ-A41.

51400-MBZ-A42

$660.46

1

FORK ASSY., R. FR.

51400-MBZ-A42

$660.46

3

COLLAR, SPRING

51403-MCF-003

$29.38

4

TUBE (OUTER)

51410-MBZ-A41

$319.44

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

6

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.86

7

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.27

8

PIPE, R. SLIDE

51425-MBZ-C51

Unavailable

9

DAMPER, FR. | Use up to Frame SN 6F100127 This part replaces 51430-MBZ-C51.

51430-MBZ-C52

Unavailable

9

DAMPER, FR. | Use from Frame SN 6F100128

51430-MBZ-C52

Unavailable

10

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

11

BOLT, FR. FORK

51450-MBZ-A41

Unavailable

12

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

13

SEAL SET, FR. FORK This part replaces 51490-MEE-D01.

51490-MFF-D01

$25.71

14

FORK ASSY., L. FR. | Use up to Frame SN 6F100127 This part replaces 51500-MBZ-A41.

51500-MBZ-A42

Unavailable

14

FORK ASSY., L. FR.

51500-MBZ-A42

Unavailable

15

PIPE, L. SLIDE

51525-MBZ-C51

Unavailable

16

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

17

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

18

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

19

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

20

O-RING (39.7X2.4)

91258-MEE-D01

$1.96
